Locations
>>
Component Locations
Component Locations

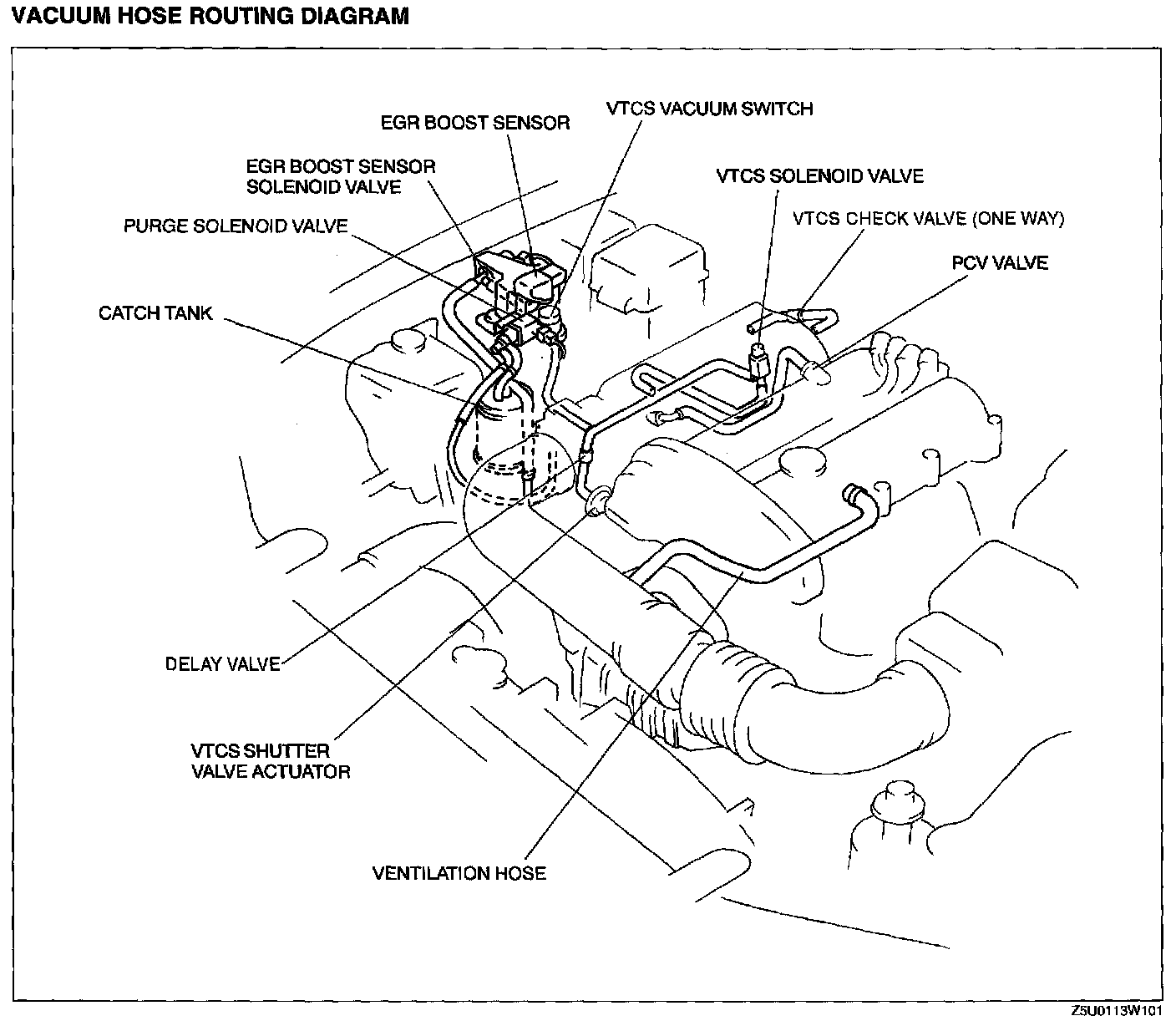

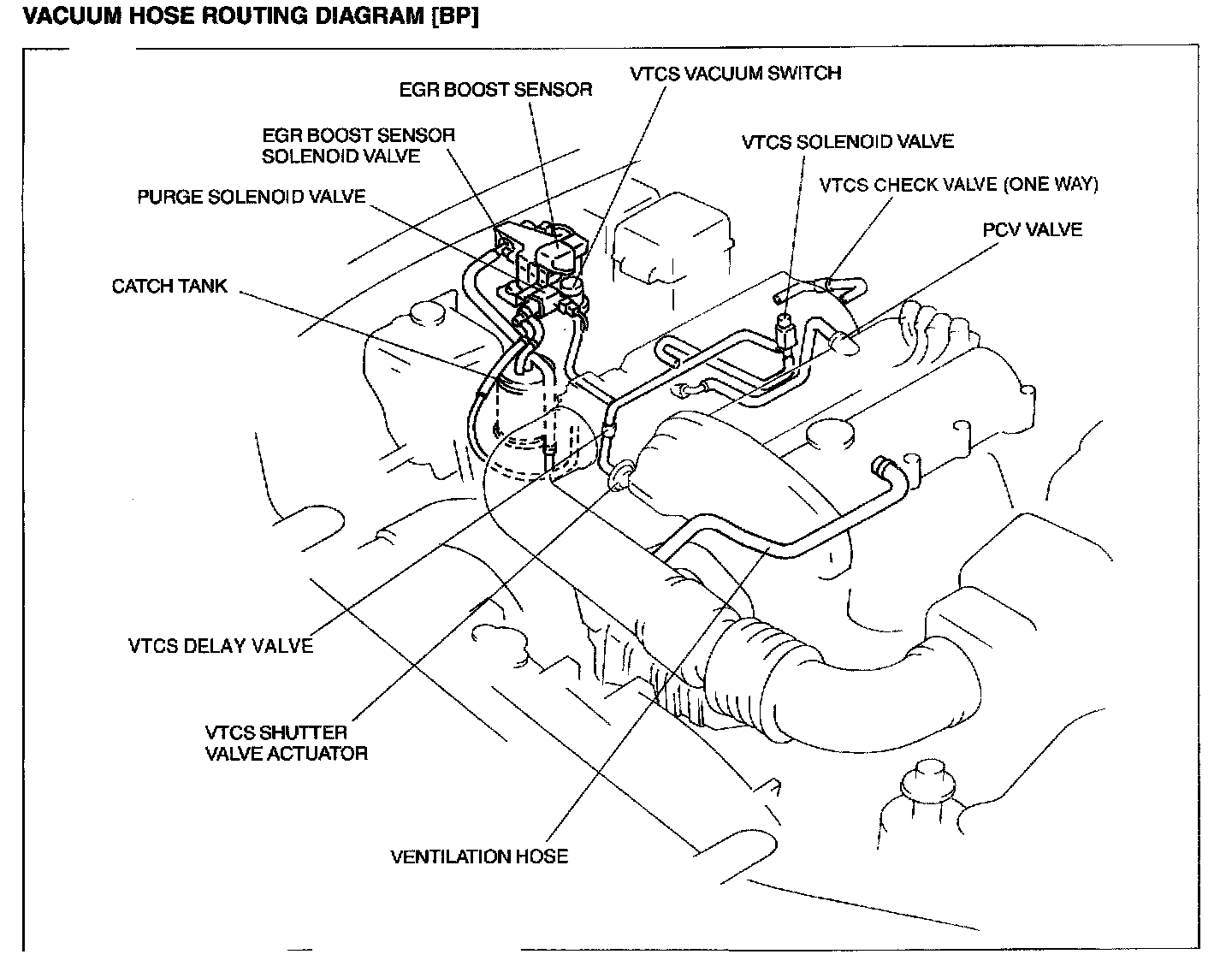

Vacuum Hose Routing Diagram [BP]:

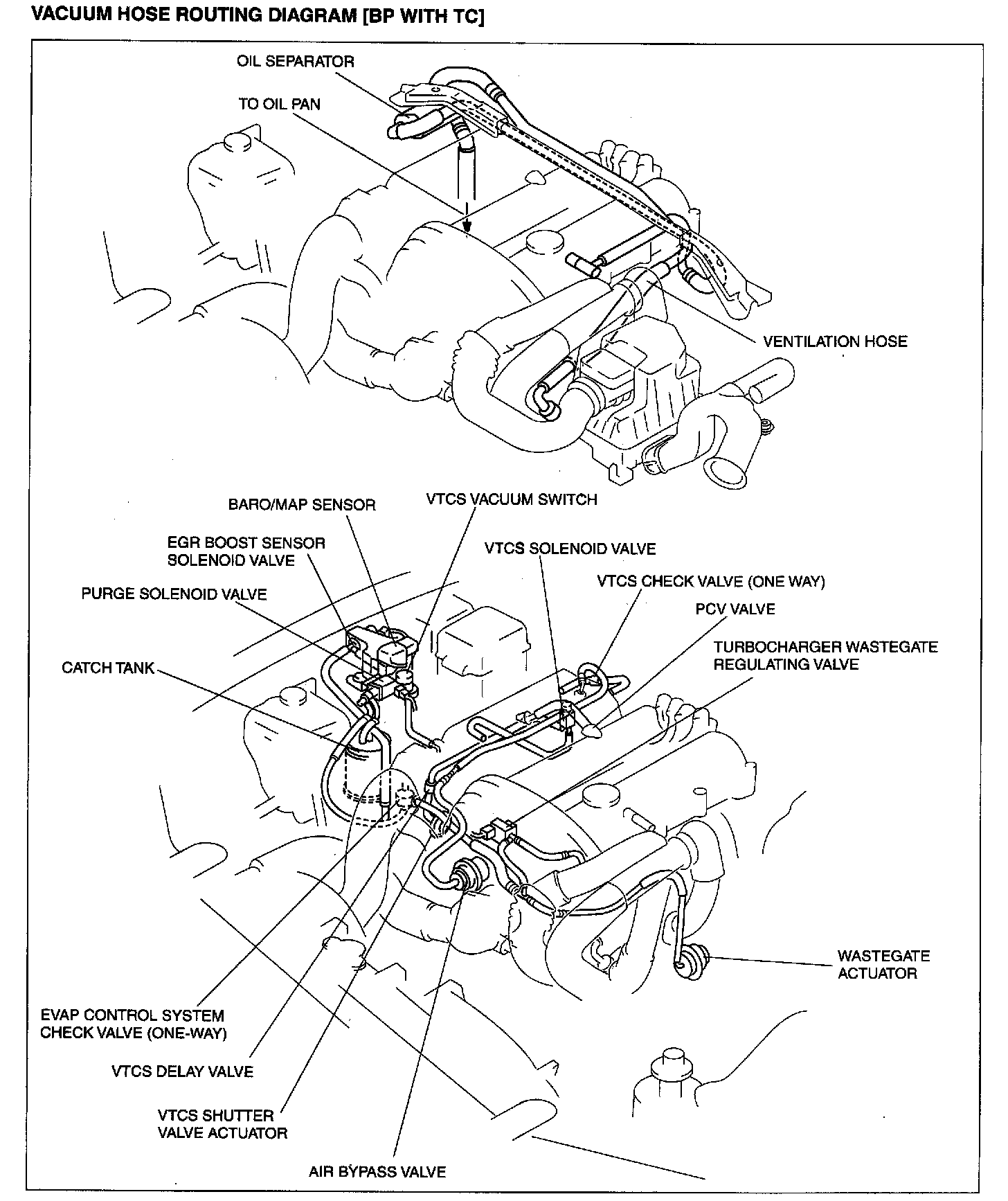

Vacuum Hose Routing Diagram [BP With TC]:
Intake-Air System:
