Variable Tumble Control System (VTCS) Solenoid Valve
VARIABLE TUMBLE CONTROL SYSTEM (VTCS) SOLENOID VALVE INSPECTIONAirflow Inspection
NOTE: Perform the following test only when directed.
1. Remove the VTCS solenoid valve.

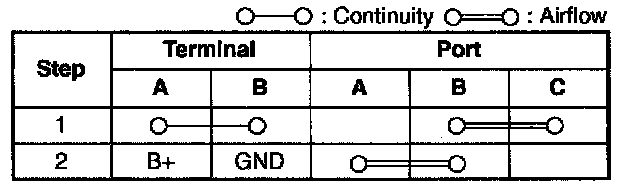

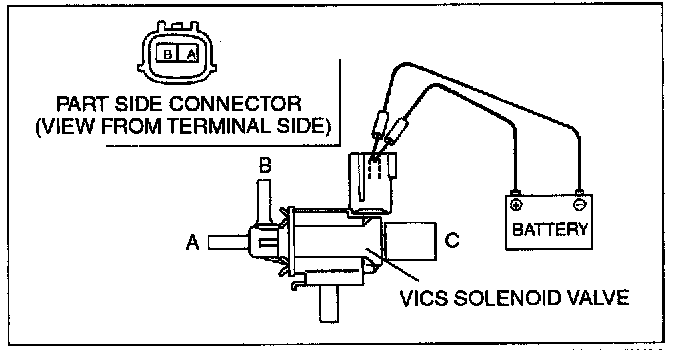

2. Inspect for airflow between each port under the following conditions:
- If as specified but the Simulation Test is failed, inspect for the following and perform the "Circuit Open/Short Inspection":
- Vacuum hose improper routing, kinks or leakage.
- If not as specified, replace the VTCS solenoid valve. (See VARIABLE TUMBLE CONTROL SYSTEM (VTCS) SOLENOID VALVE REMOVAL/INSTALLATION [BP, BP WITH TC].)
Circuit Open/Short Inspection
Open circuit

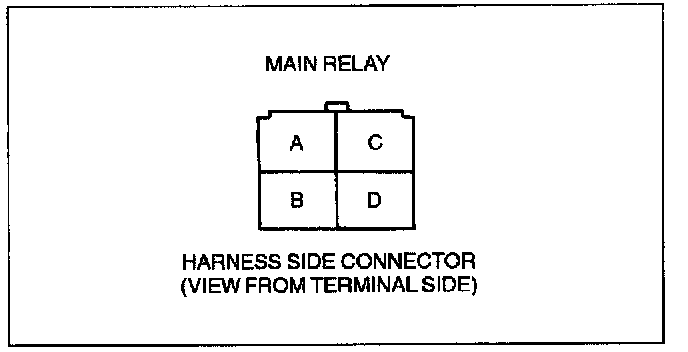

- Power circuit (VTCS solenoid valve connector terminal A and main relay connector terminal D through common connector)
- GND circuit (VTCS solenoid valve connector terminal B and PCM connector terminal 2N)
Short circuit
- VTCS solenoid valve connector terminal A and main relay connector terminal D through common connector to GND.
