Audio Control Relay: Service and Repair

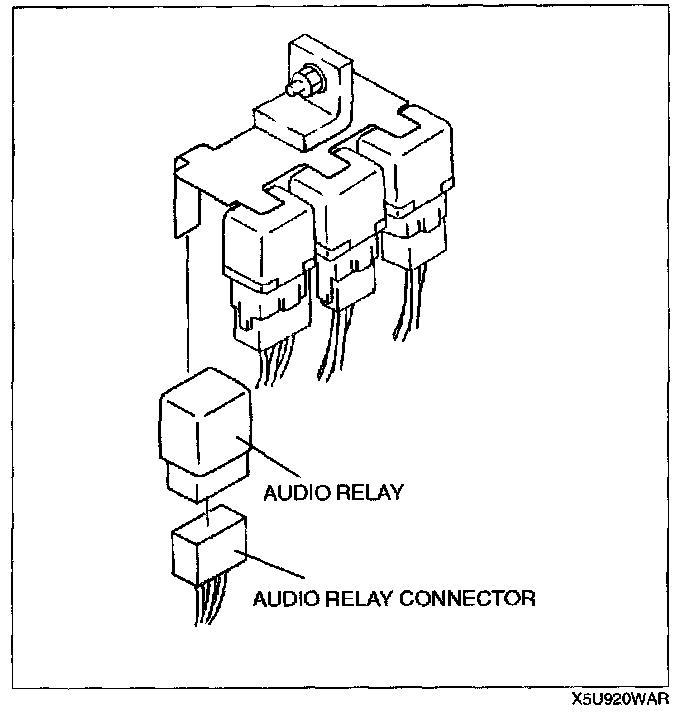

AUDIO RELAY REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.
2. Remove the center lower panel. (See CENTER PANEL REMOVAL/INSTALLATION.)
3. Disconnect the audio relay connector.
4. Remove the audio relay.
5. Install in the reverse order of removal.
