Windshield Washer Motor: Testing and Inspection

WINDSHIELD WASHER MOTOR INSPECTION

1. Disconnect the windshield washer motor connector.

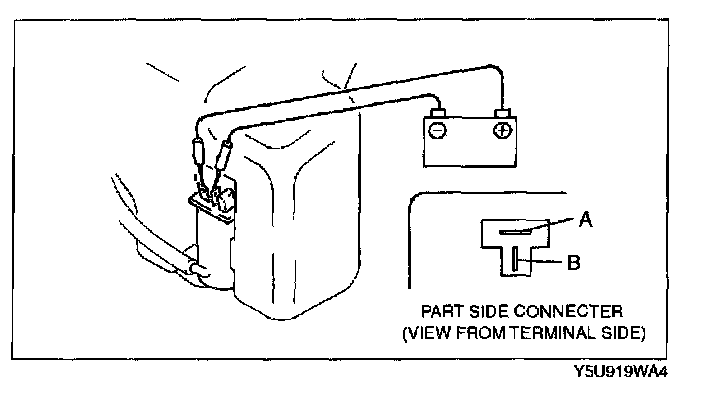

2. Connect battery positive voltage to the motor terminal B and ground to the motor terminal A.




3. Verify that the windshield washer motor operates.
- If the motor does not operate, replace the windshield washer motor.
