Home >> Mazda >> 2007 >> 6 L4-2.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P2196

P2196

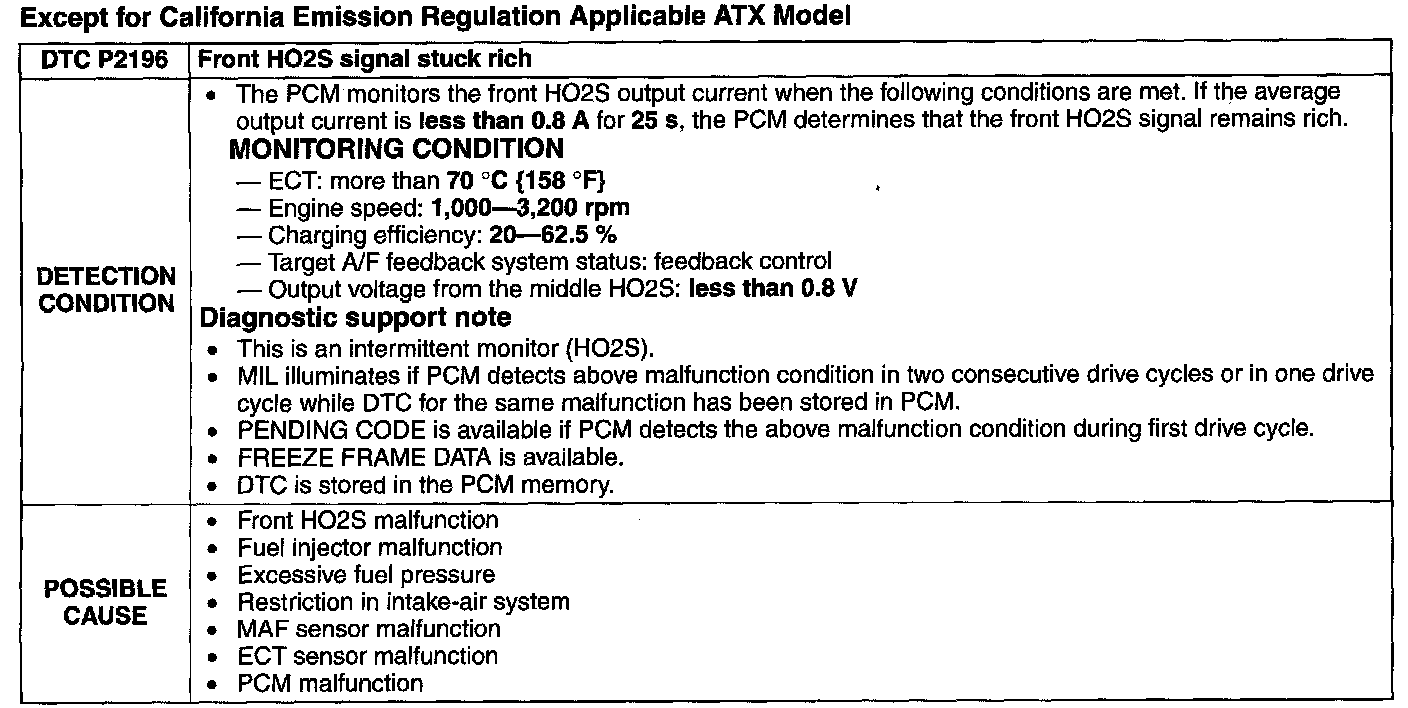

Detection Condition/Possible Cause:

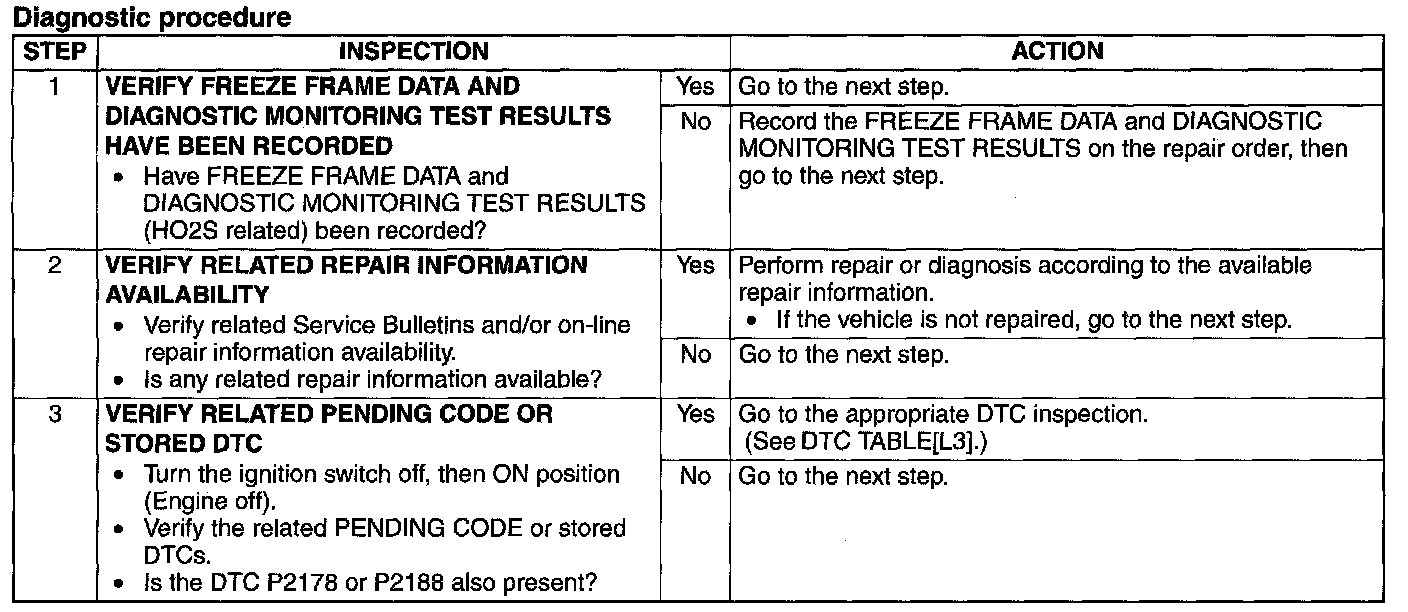

Step 1-Step 2:

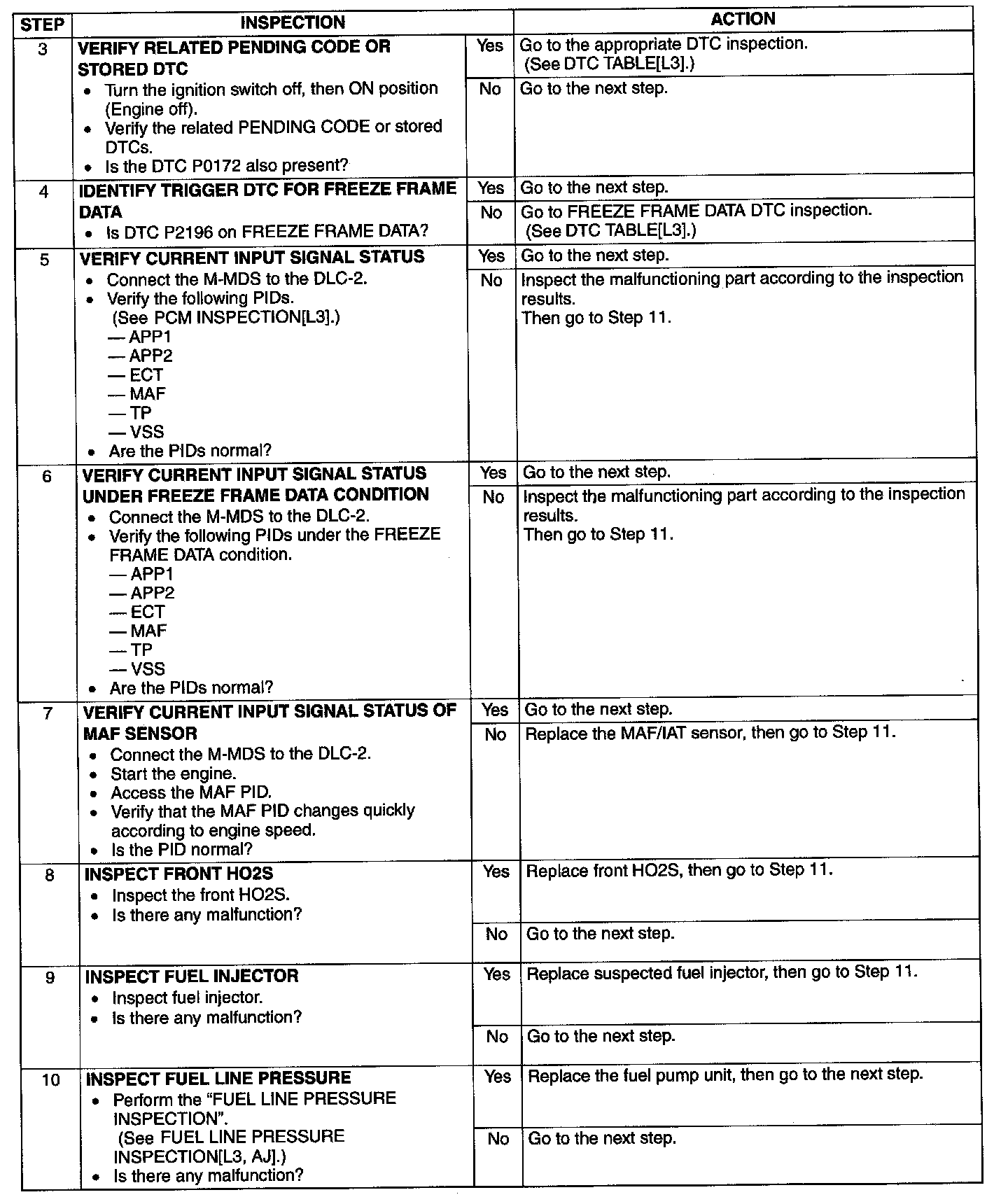

Step 3-Step 10:

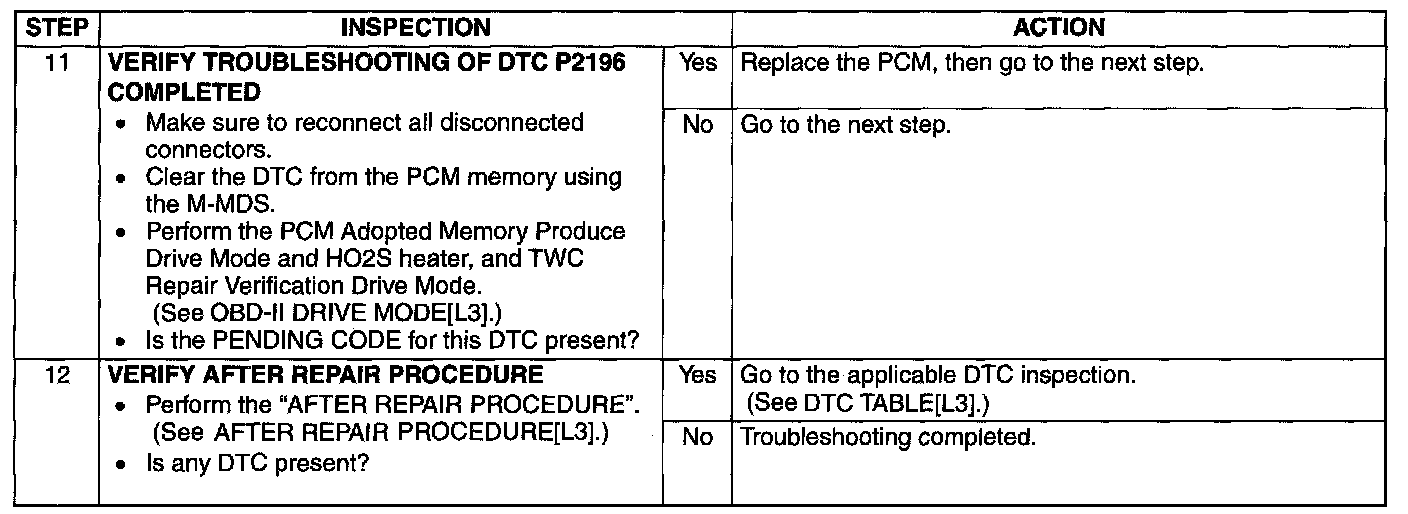

Step 11-Step 12:

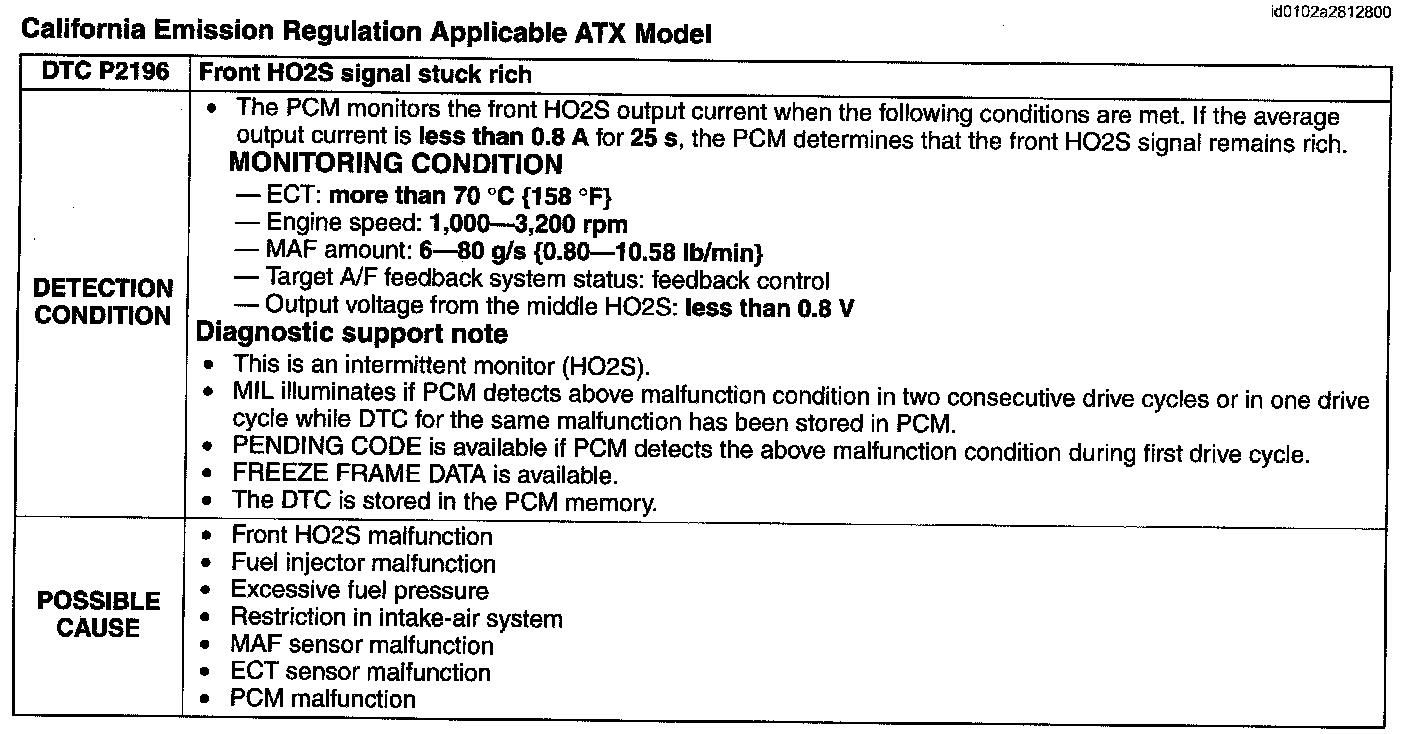

Detection Condition/Possible Cause:

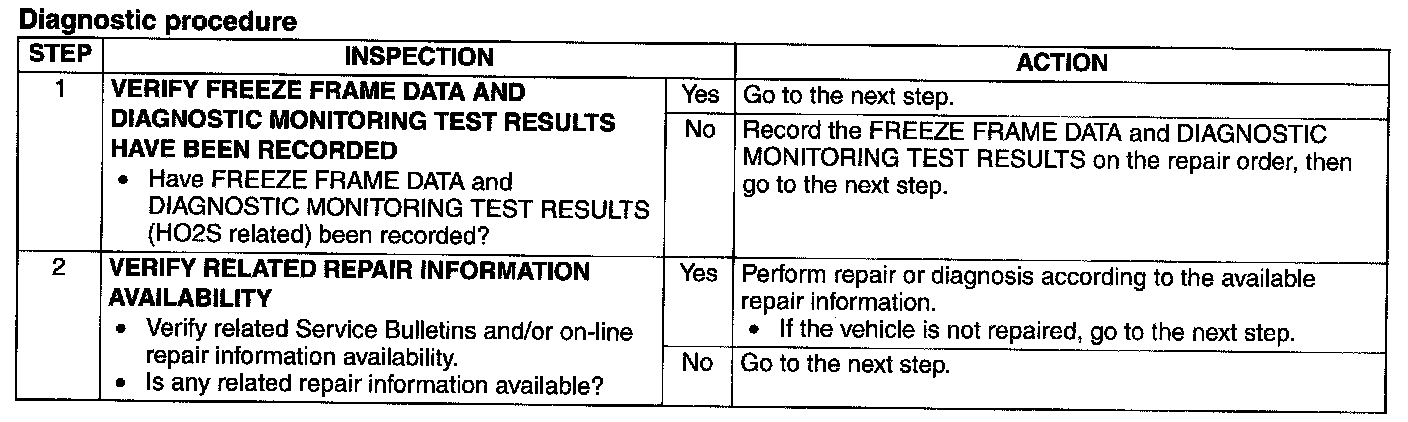

Step 1-Step 3:

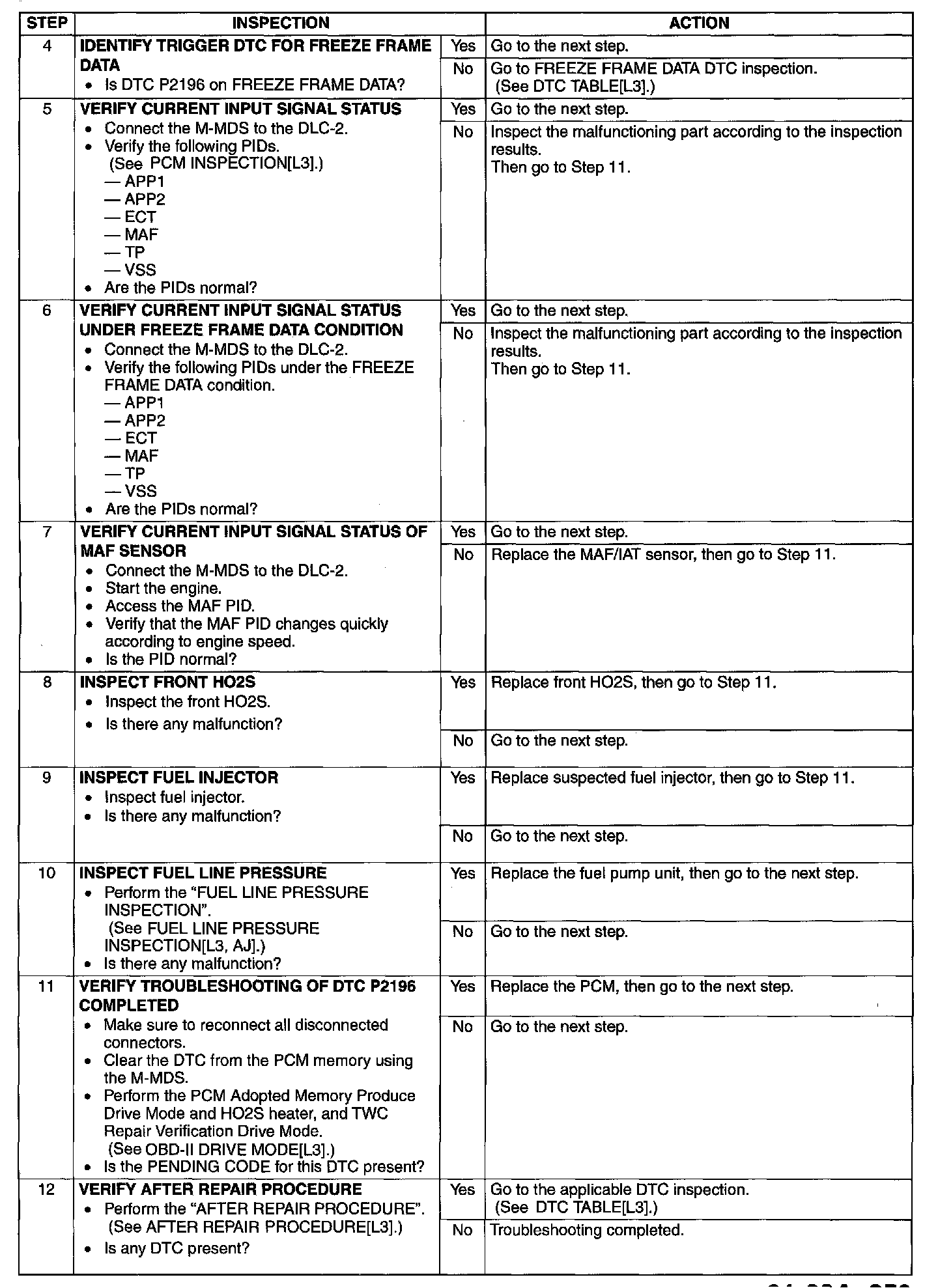

Step 4-Step 12:
