Overhaul

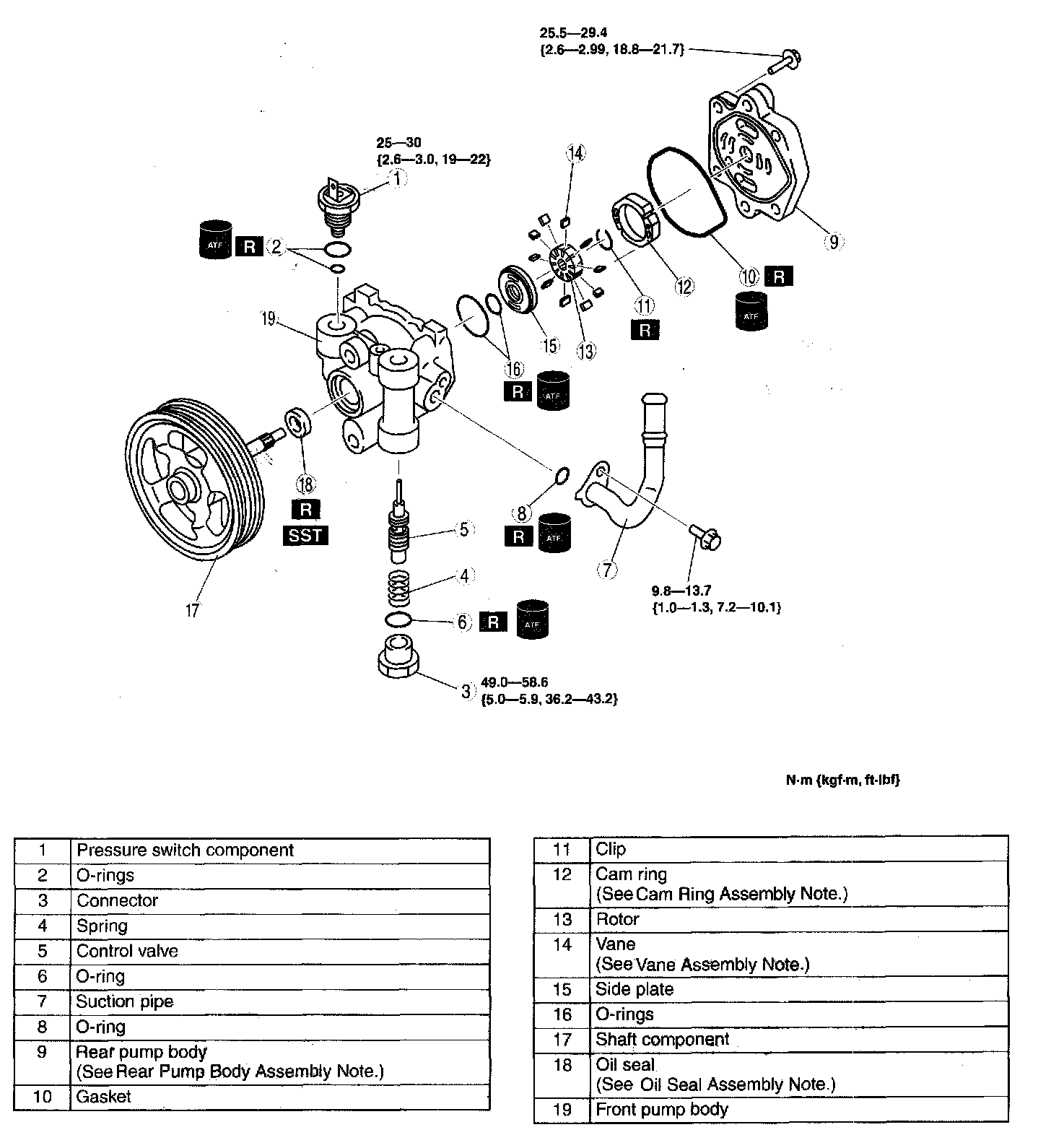

POWER STEERING OIL PUMP DISASSEMBLY/ASSEMBLY [AJ]





Note:
^ The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
