Front Bumper Bracket: Service and Repair

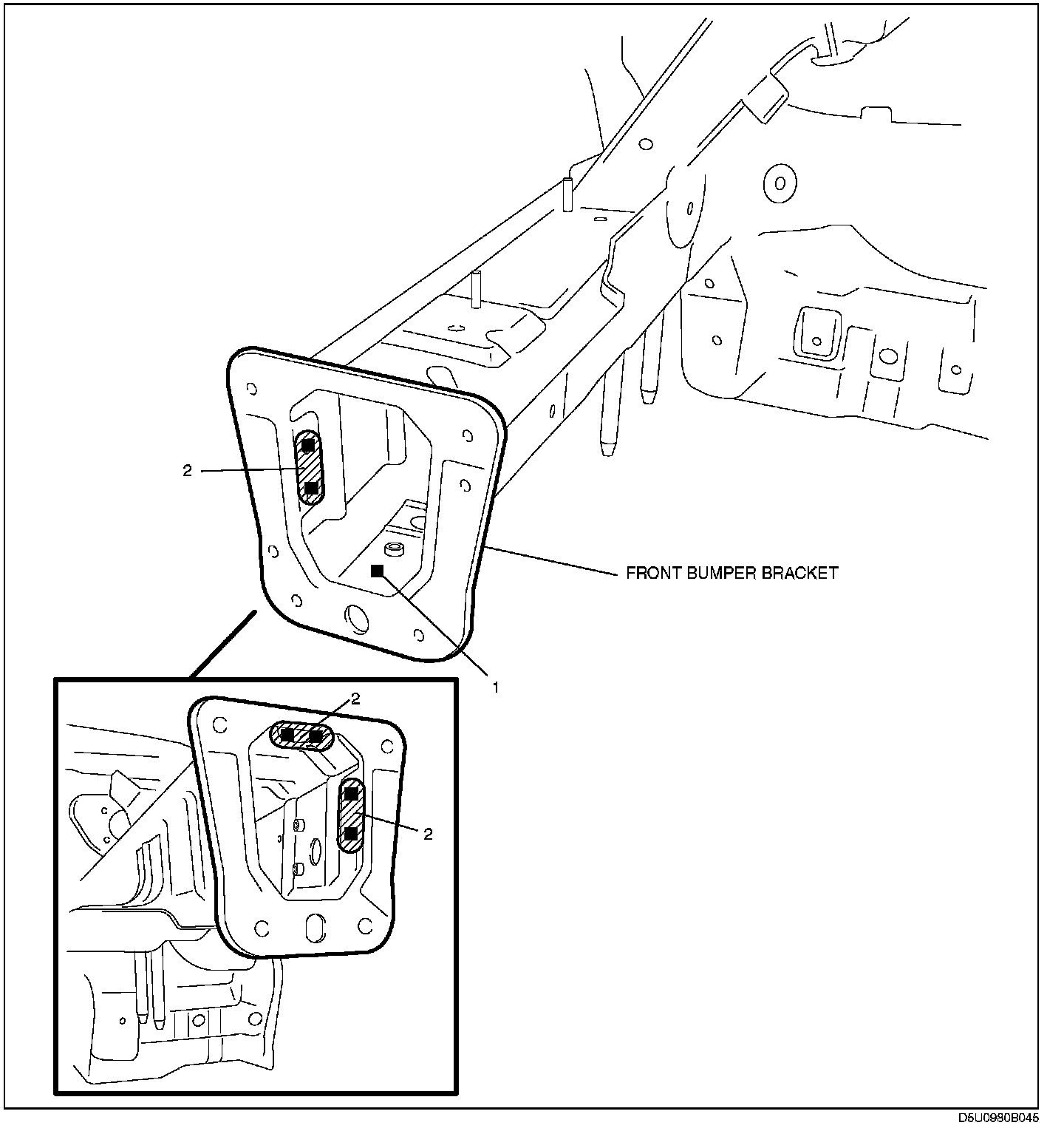

FRONT BUMPER BRACKET REMOVAL[PANEL REPLACEMENT]

1. Remove the front bumper bracket.

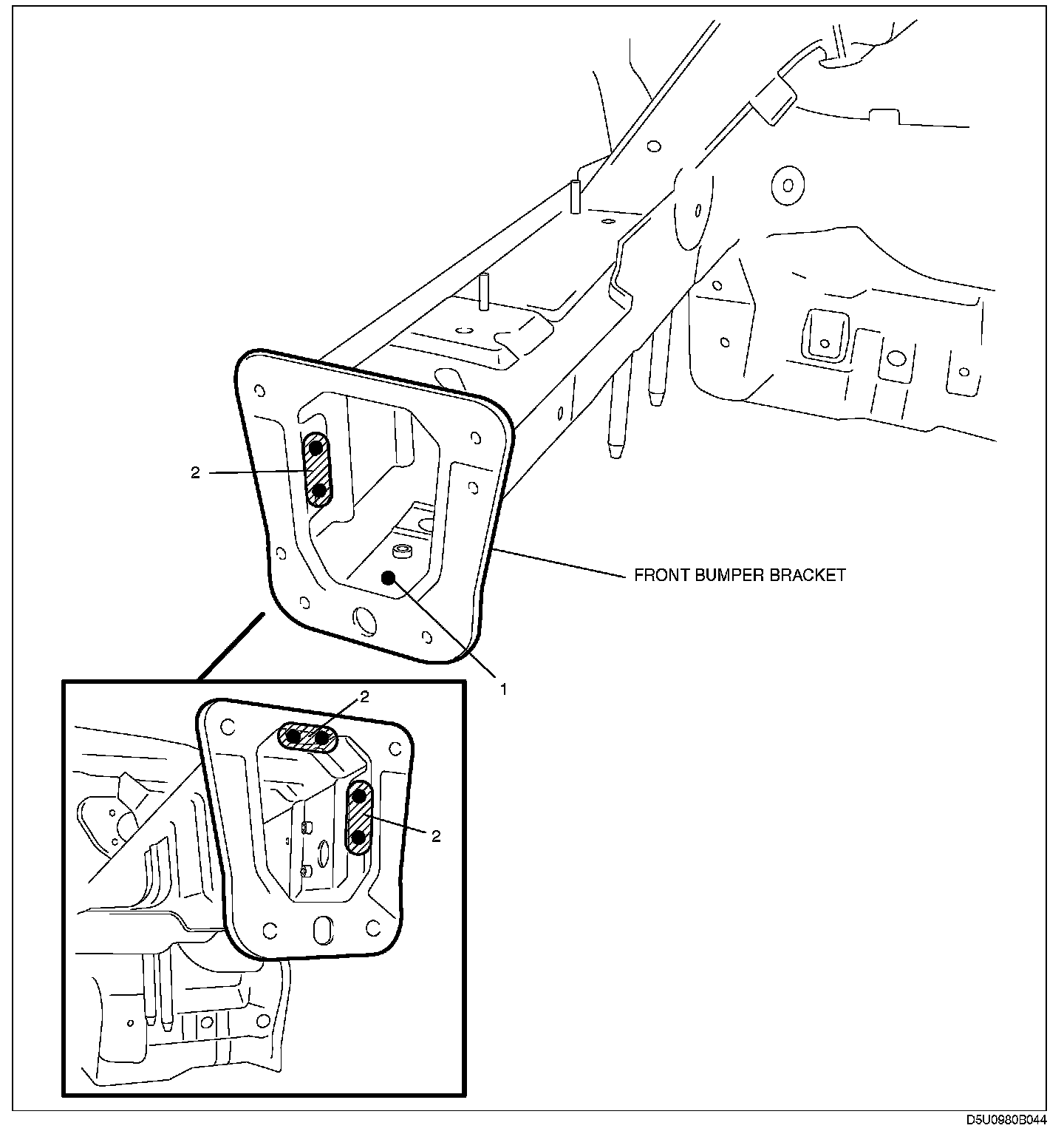

FRONT BUMPER BRACKET INSTALLATION[PANEL REPLACEMENT]

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.
