Parking Brake Lever: Service and Repair

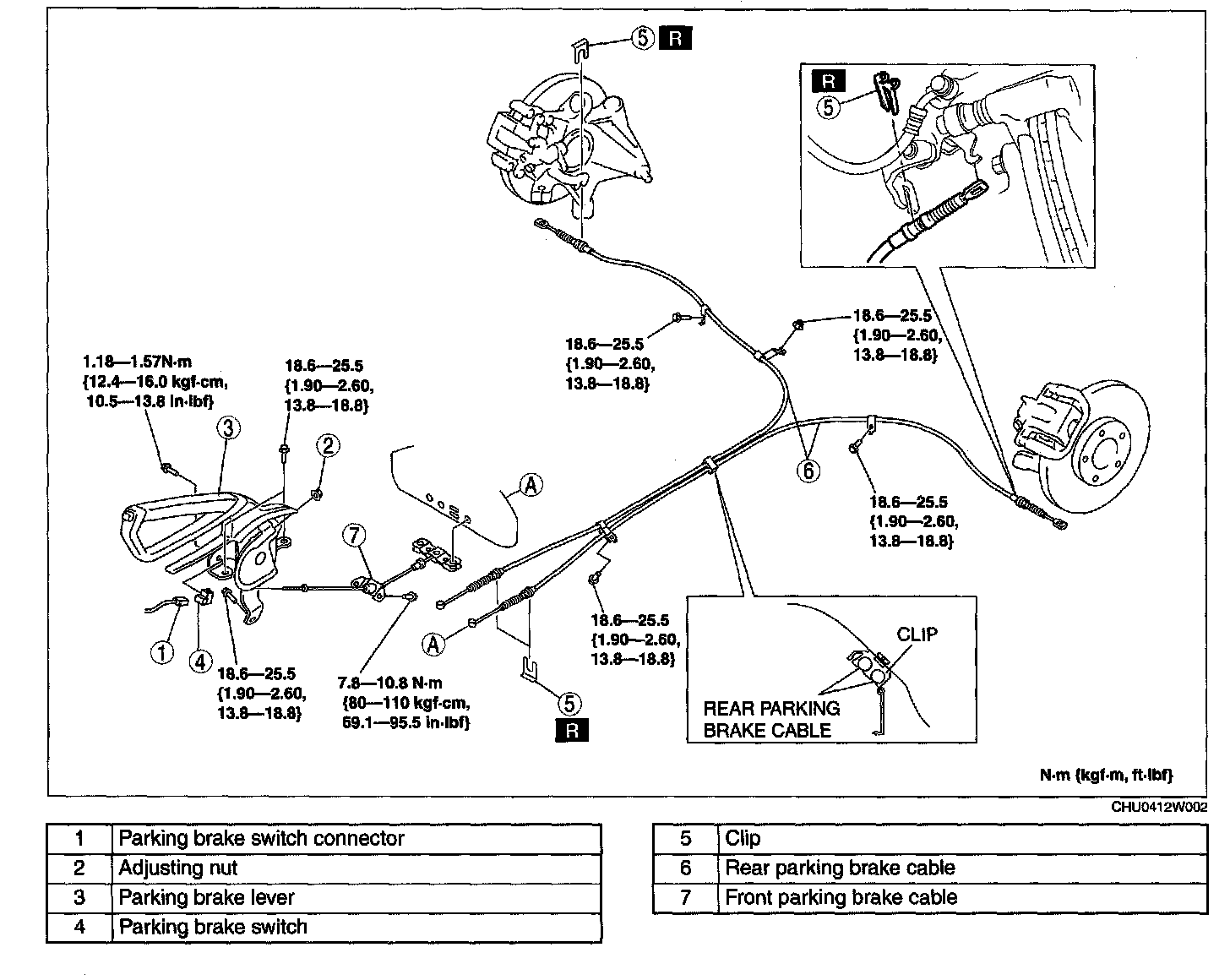

PARKING BRAKE LEVER REMOVAL/INSTALLATION
1. Remove the propeller shaft.
2. Remove the front console.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. After installation, inspect the parking brake stroke and adjust if necessary.
