Malfunction Lamp / Indicator: Service and Repair

PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the following parts:
1. Side wall
2. Center panel unit
3. Glove compartment
4. Decoration panel

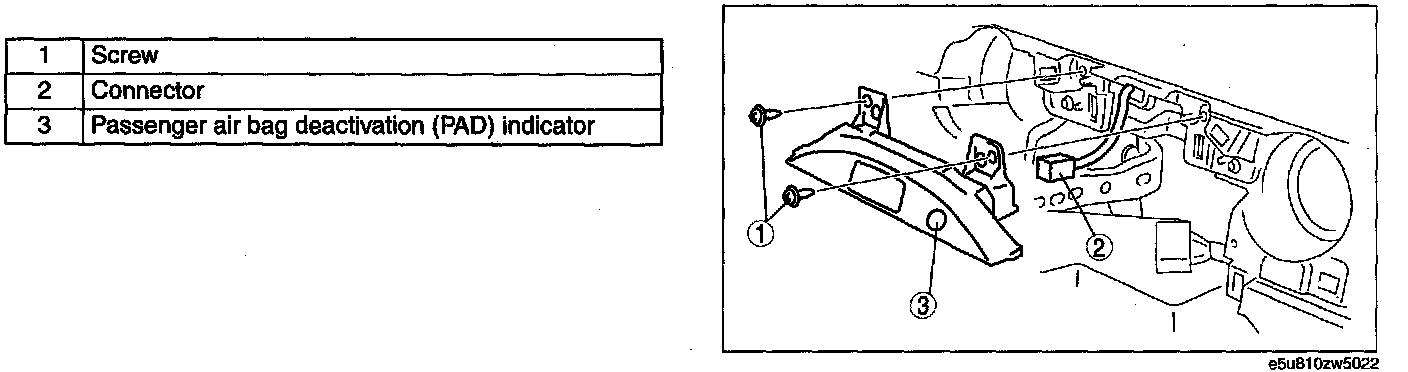

4. Remove in the order indicated in the table.






5. Install in the reverse order of removal.
