[Full-Auto Air Conditioner]

FRONT BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER]

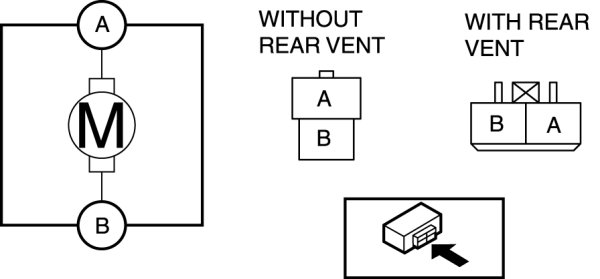

Connect battery positive voltage to front blower motor terminal A, connect terminal B to ground, and then verify its operation.






- If there is any malfunction, replace the front blower motor.
