: Car repair manuals for everyone.
Home
>>
Mazda
>>
2011
>>
6 V6-3.7L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0504
P0504

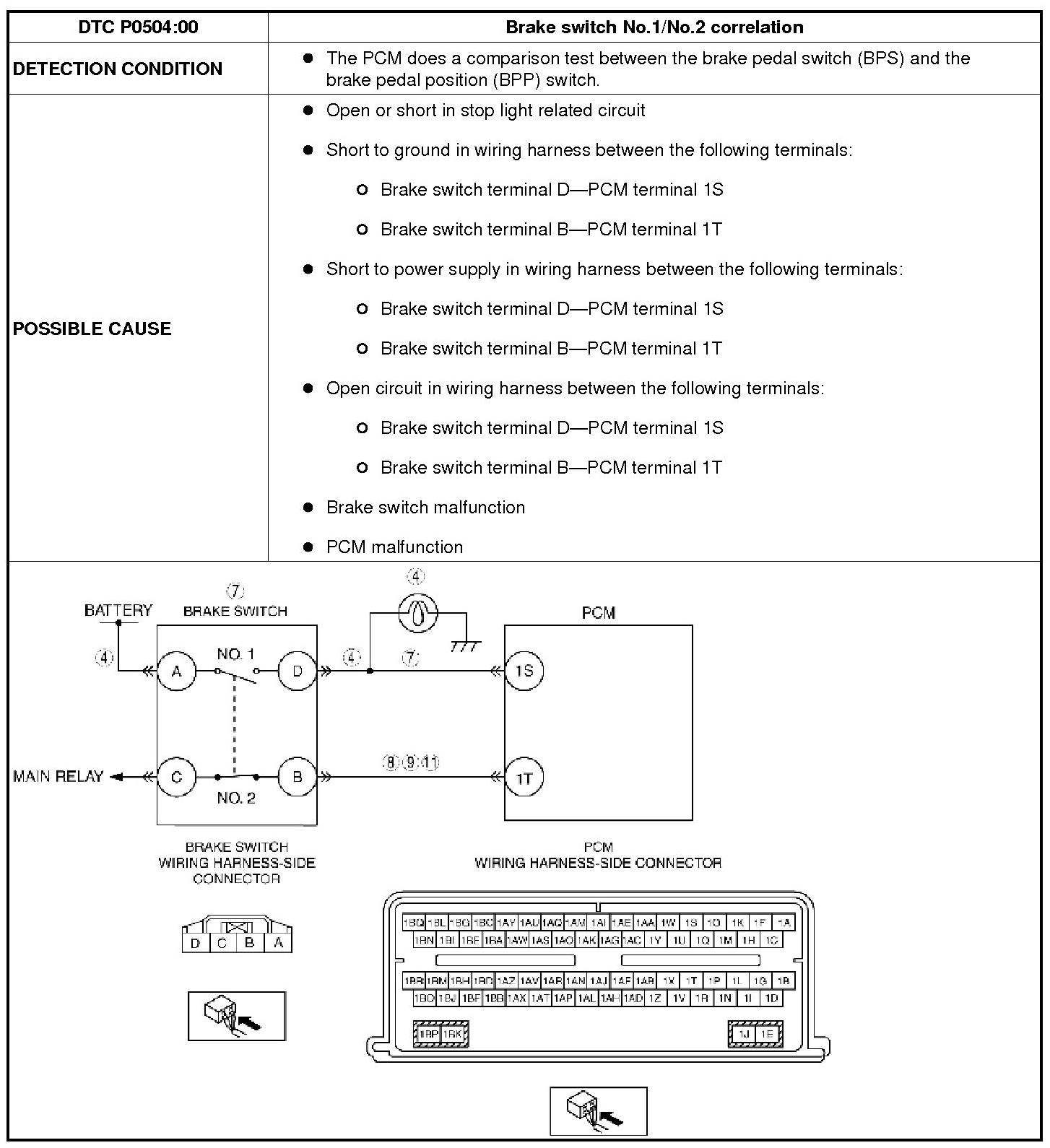

DTC P0504:00 [MZI 3.7 V6]

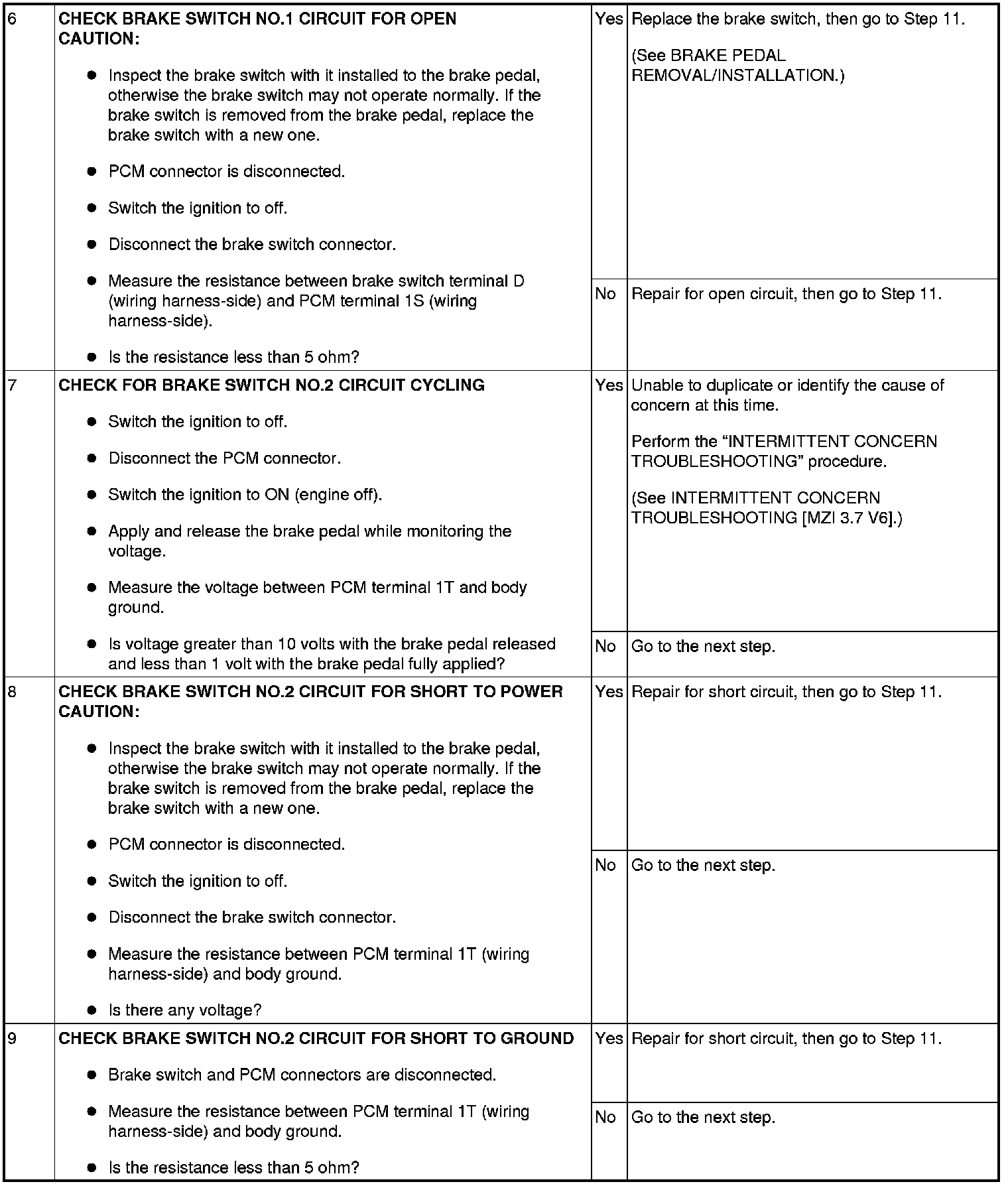

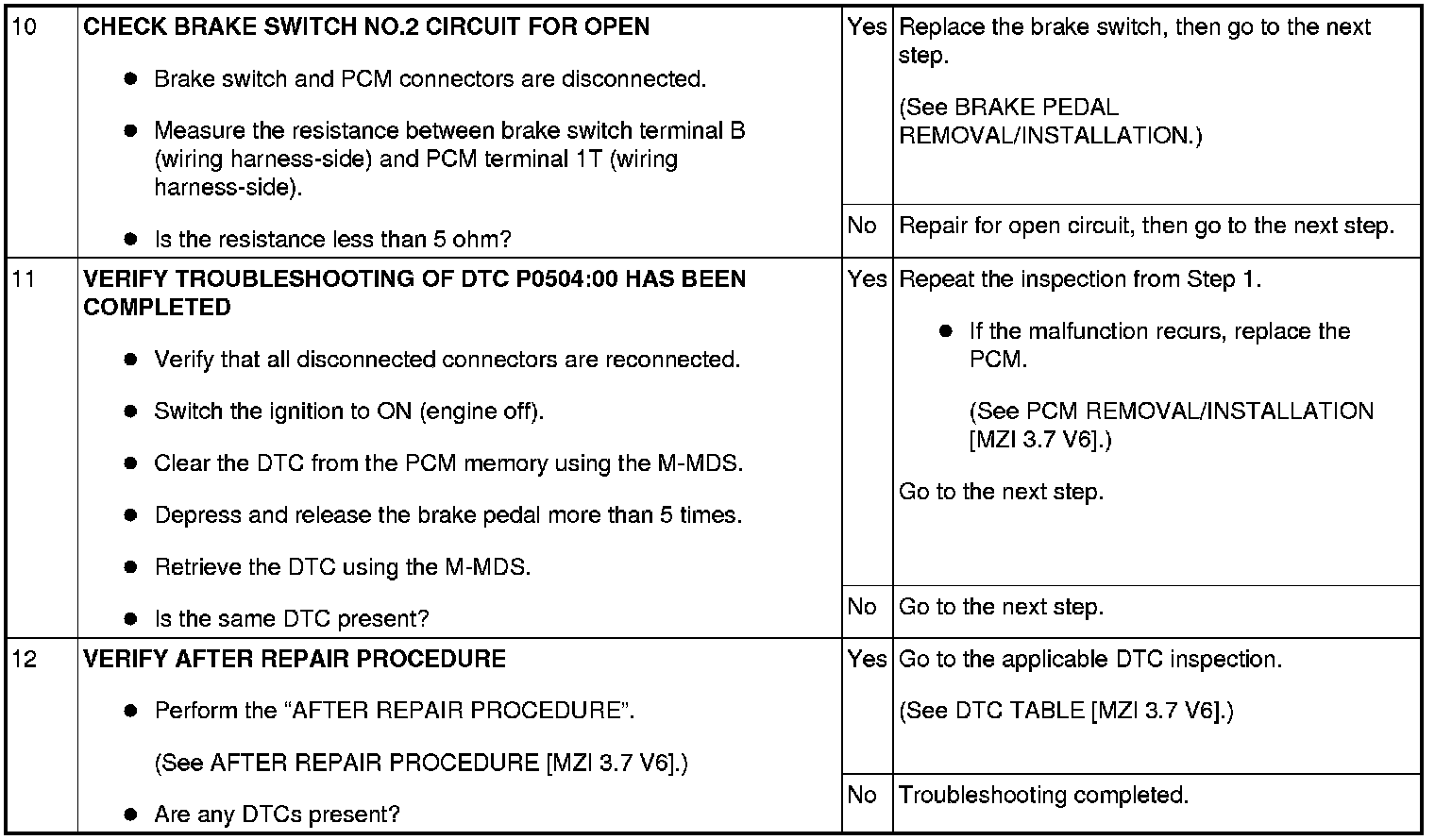

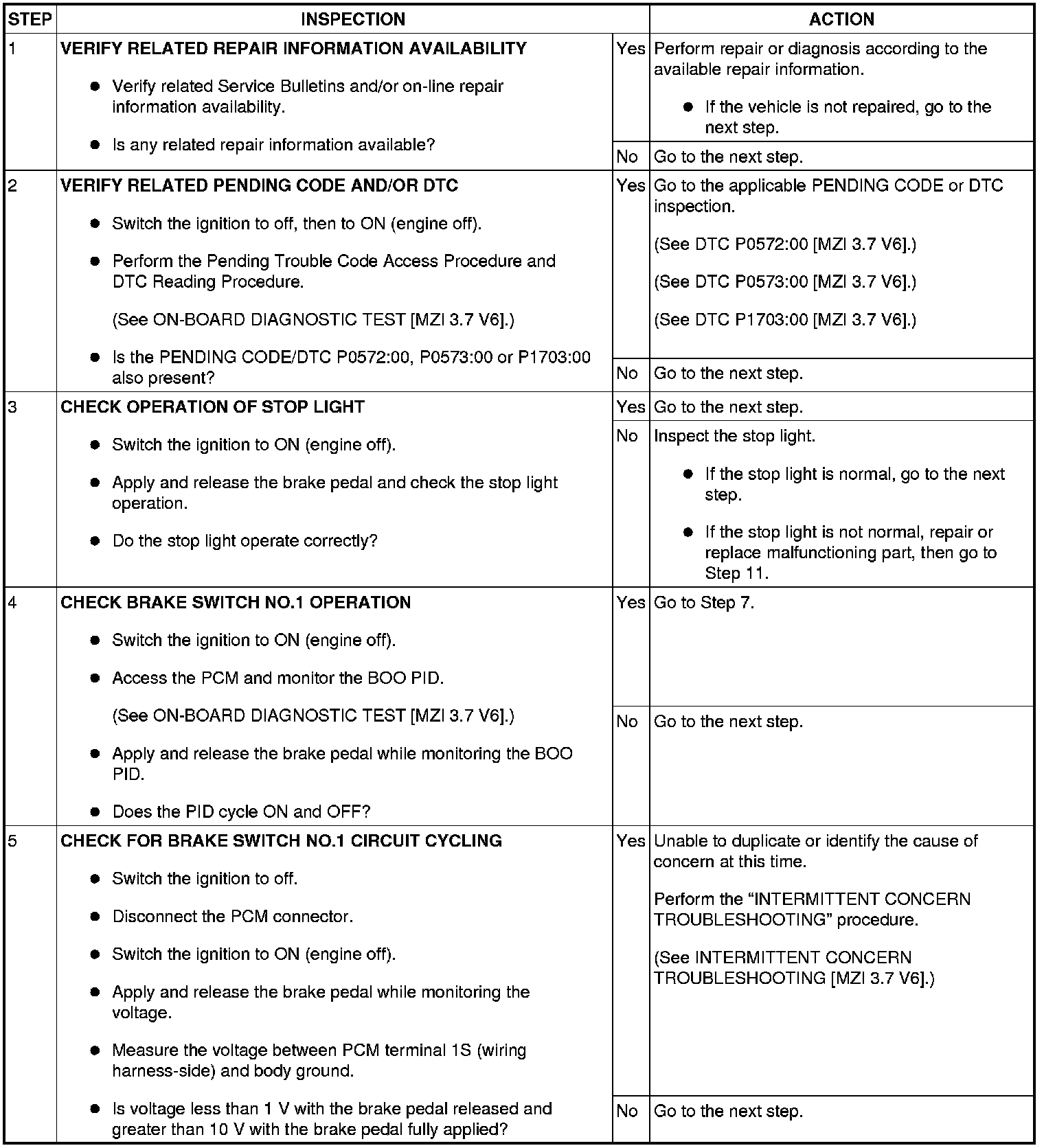

Diagnostic procedure
