On-Board Diagnostic Wiring Diagram
On-Board Diagnostic Wiring Diagram

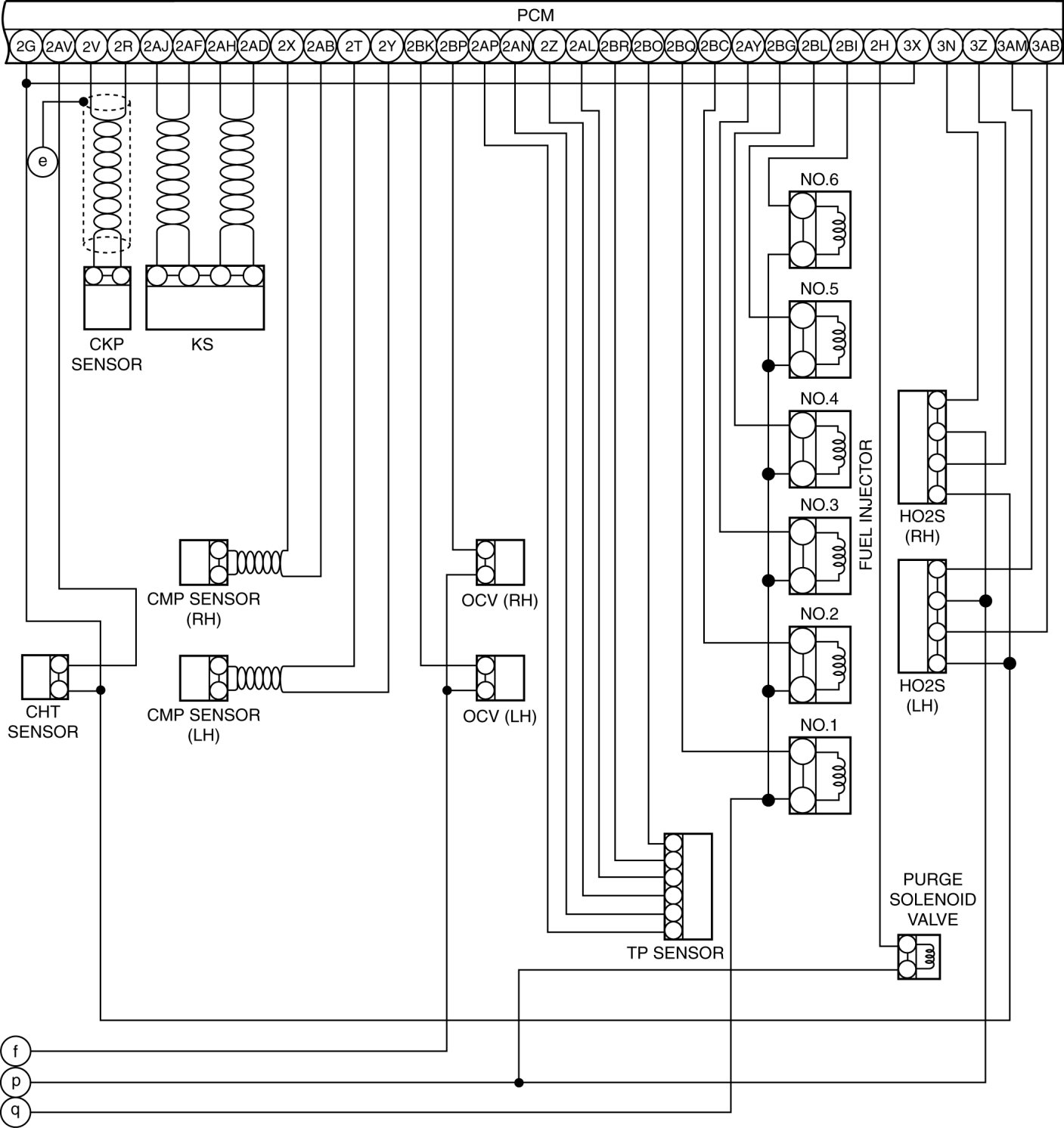

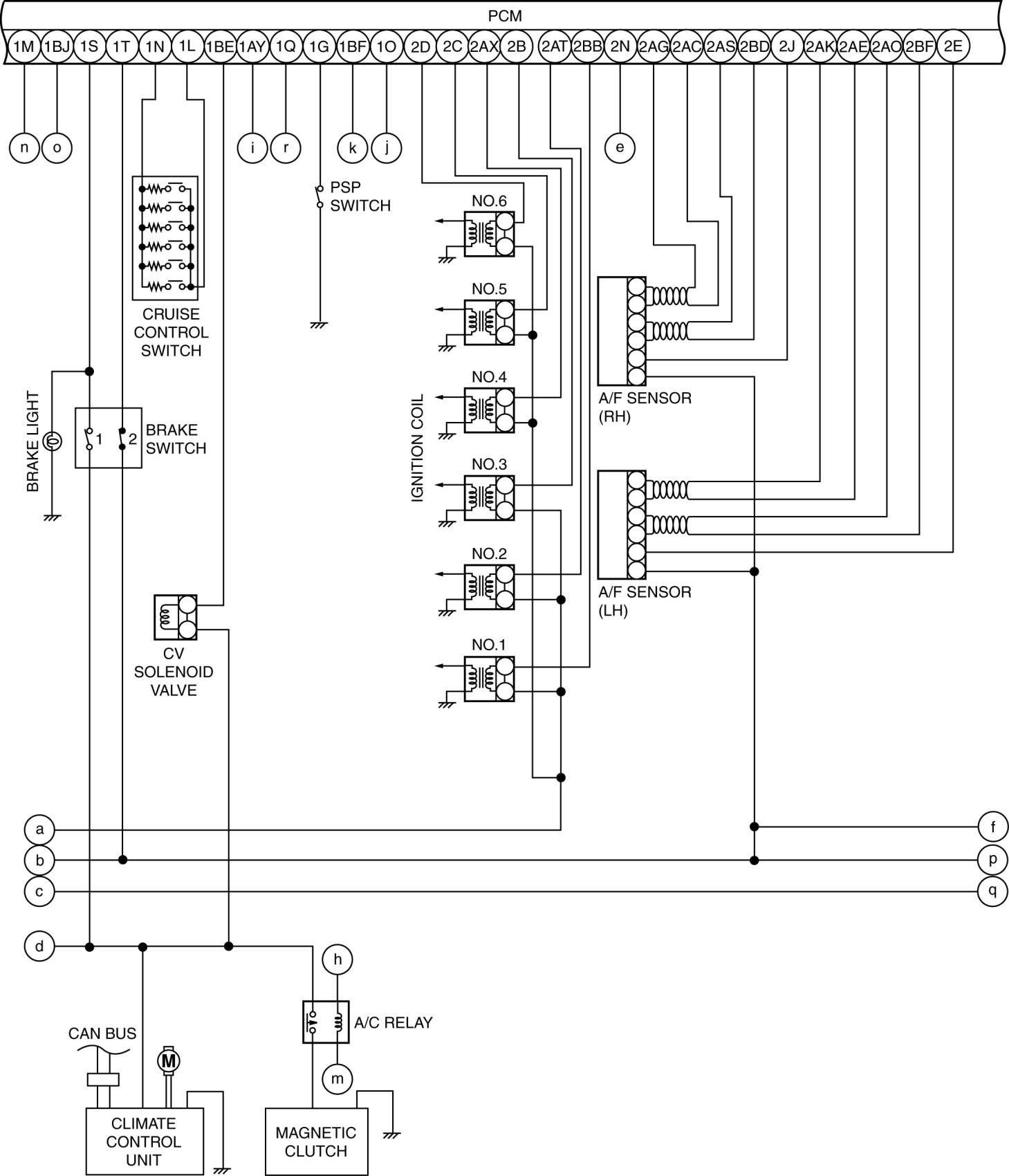

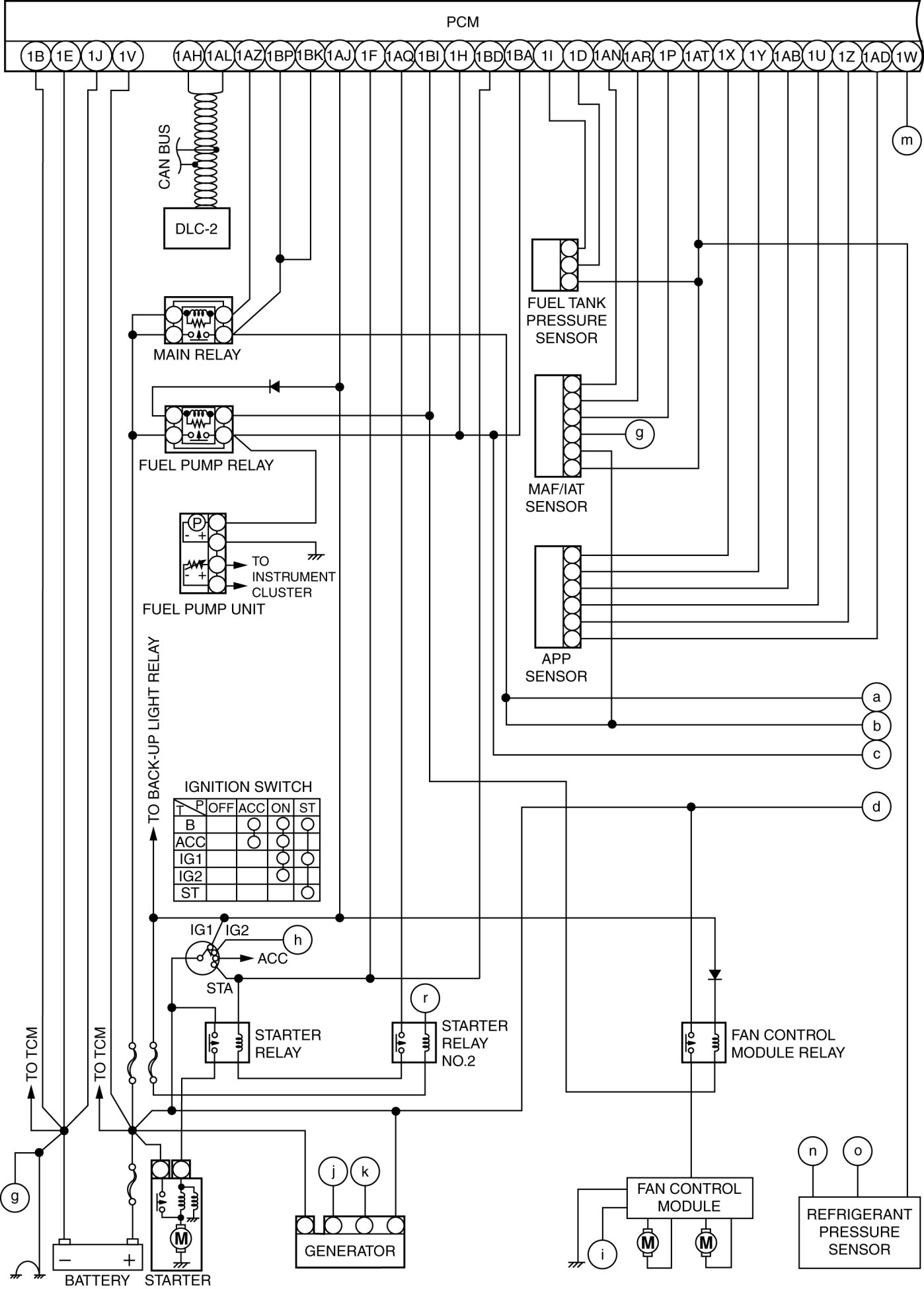

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [MZI 3.7 V6]
