No. 23 Transaxle Overheats
No. 23 Transaxle Overheats

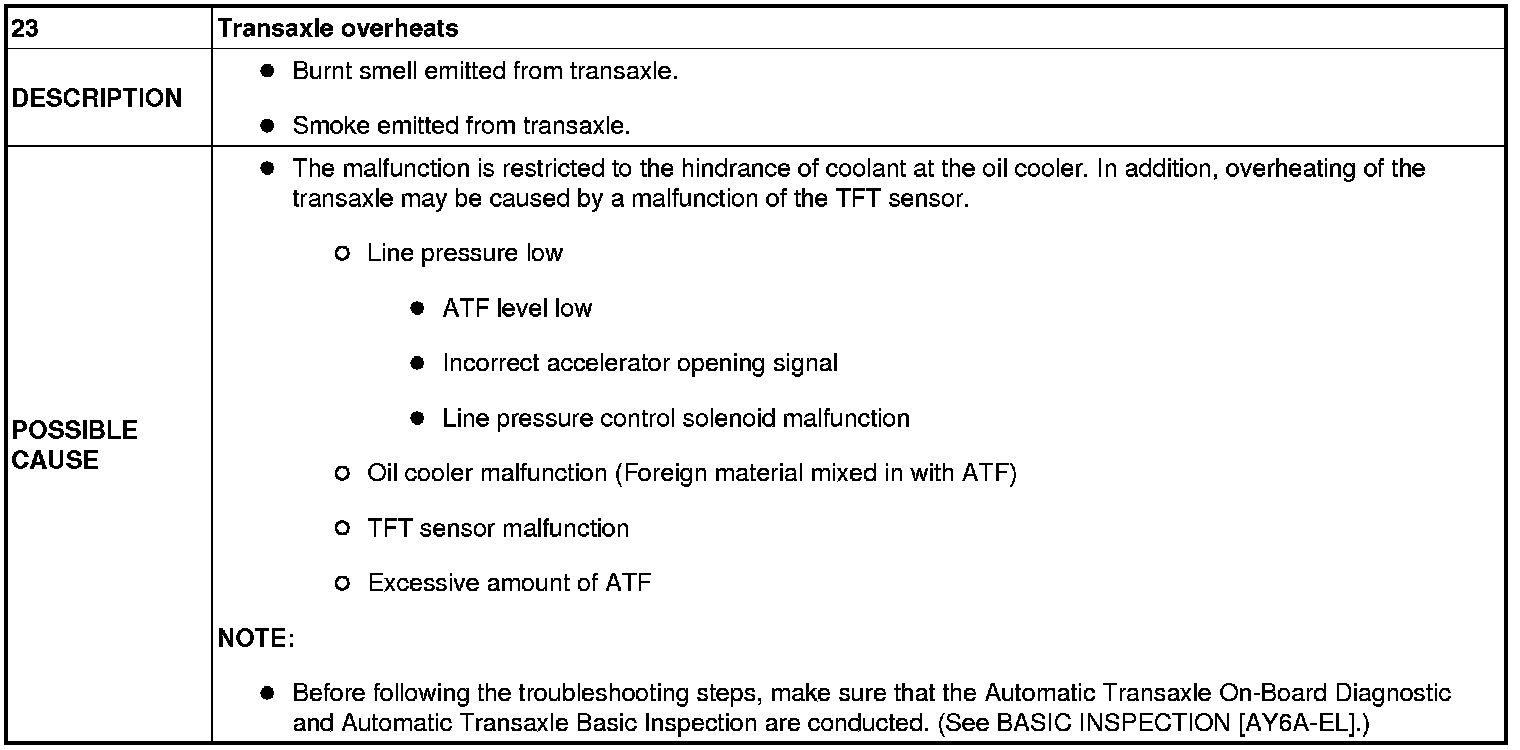

NO.23 TRANSAXLE OVERHEATS [AY6A-EL]

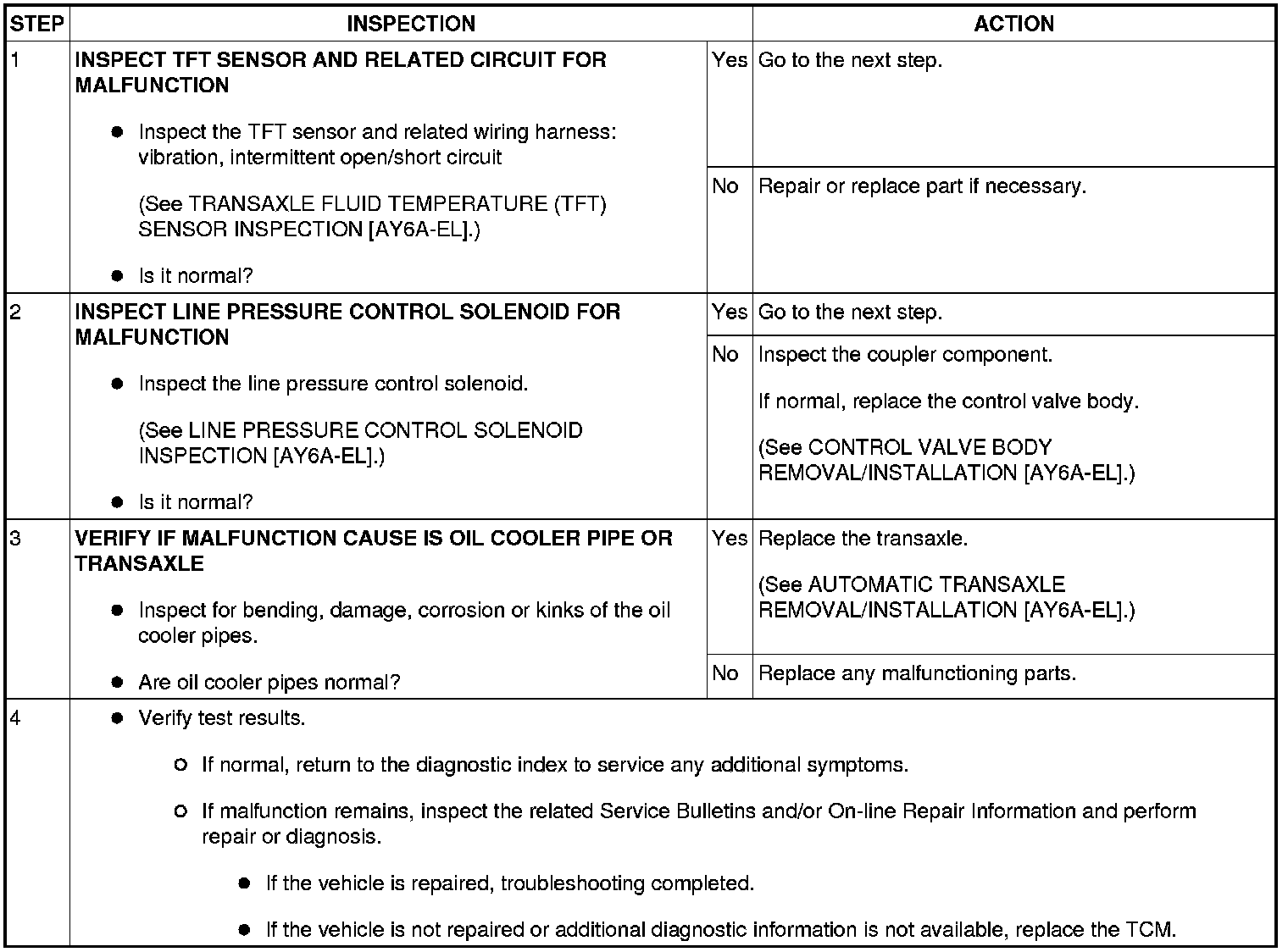

Diagnostic procedure
