Security Light 11

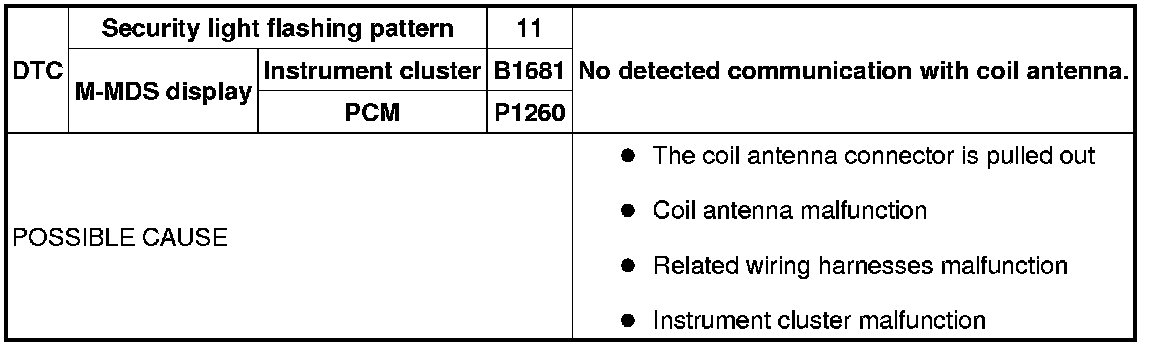

SECURITY LIGHT 11, DTC B1681/P1260 [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)]

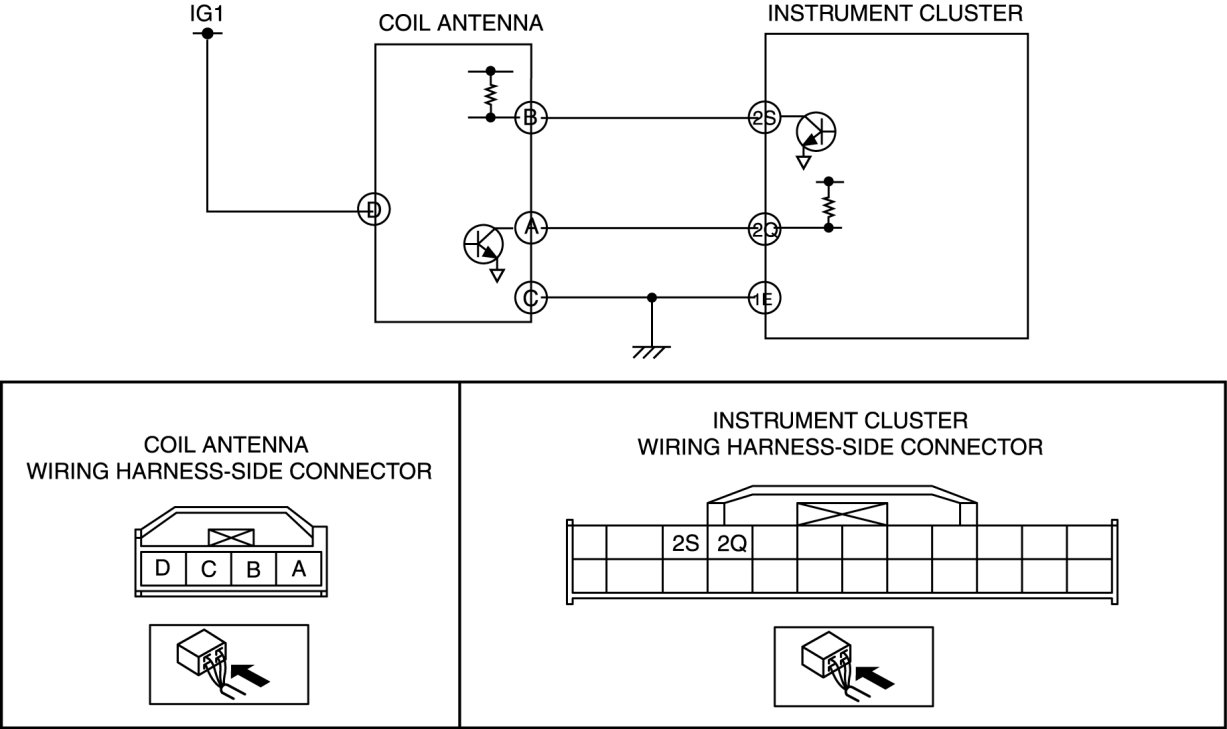

System wiring diagram

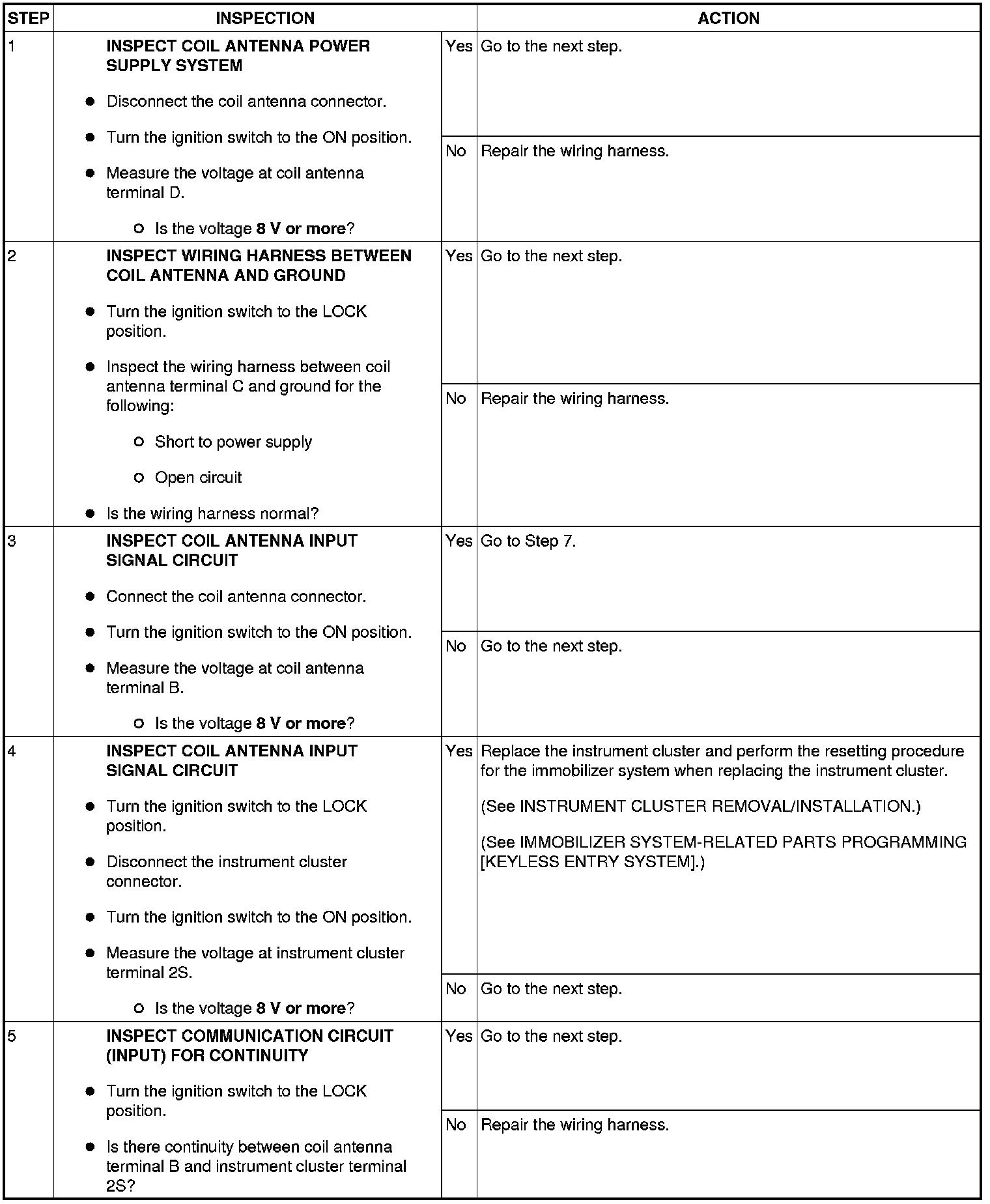

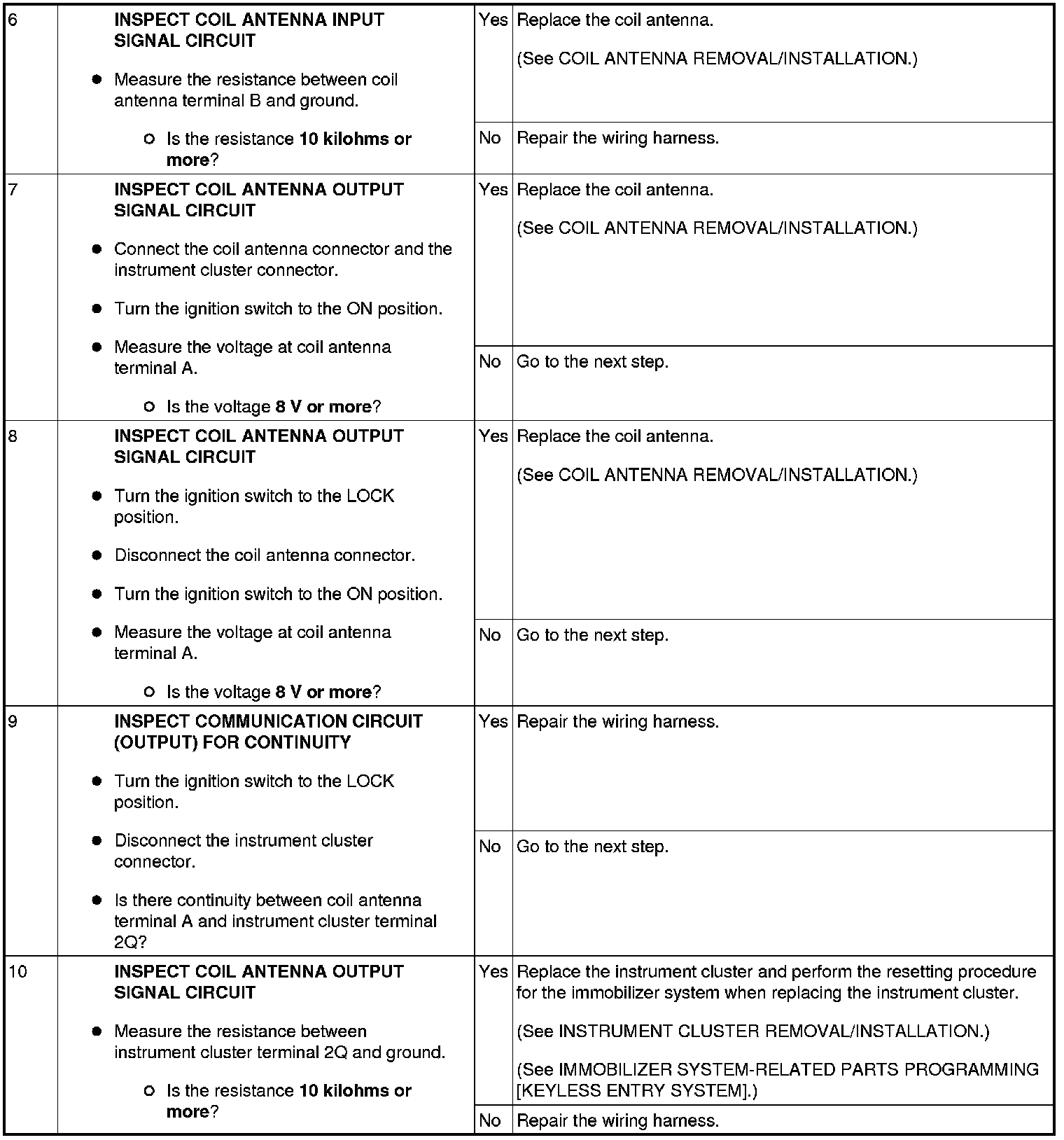

Diagnostic Procedure
