Calibration Resistor / Connector: Locations

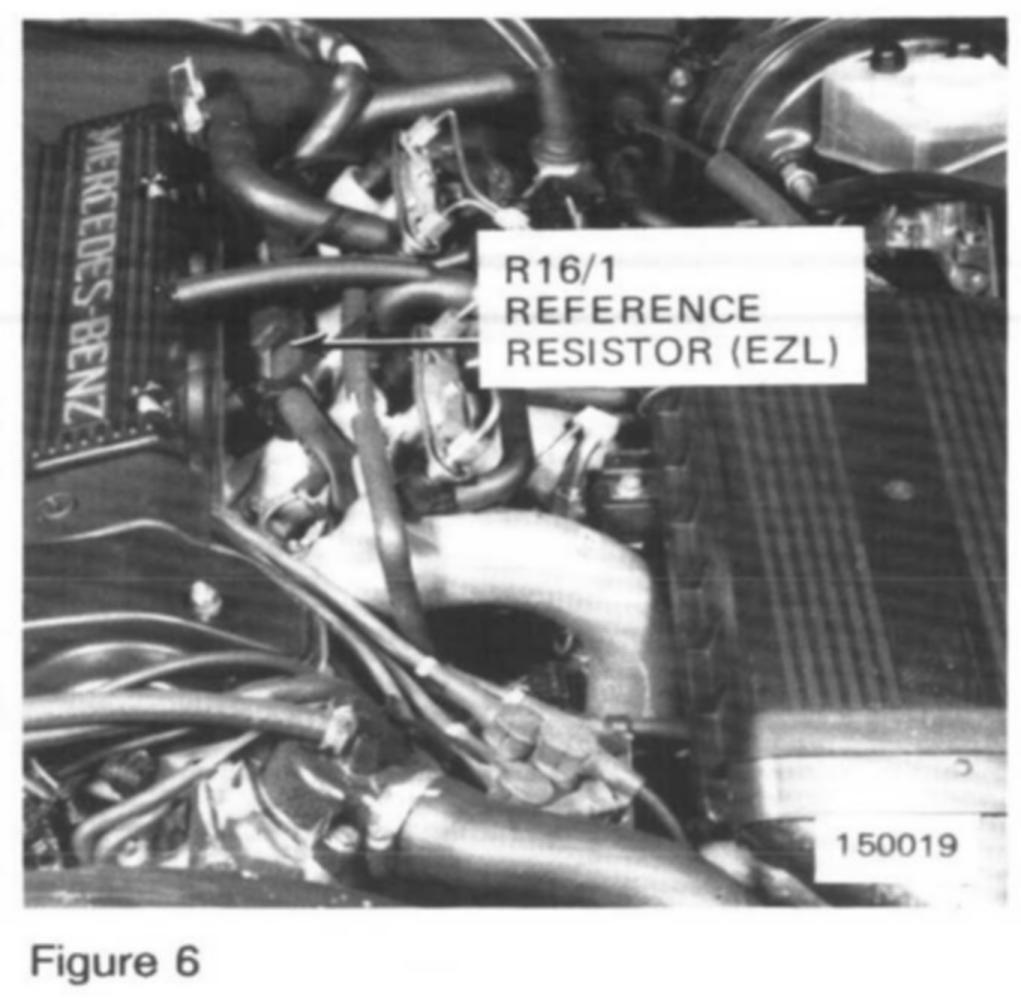

Component ID: R16/1
Component Name: Reference resistor (EZL)
Component Location: Top center of engine
