Belt Pulley/Vibration Damper Center Bolt

Replace center bolt.

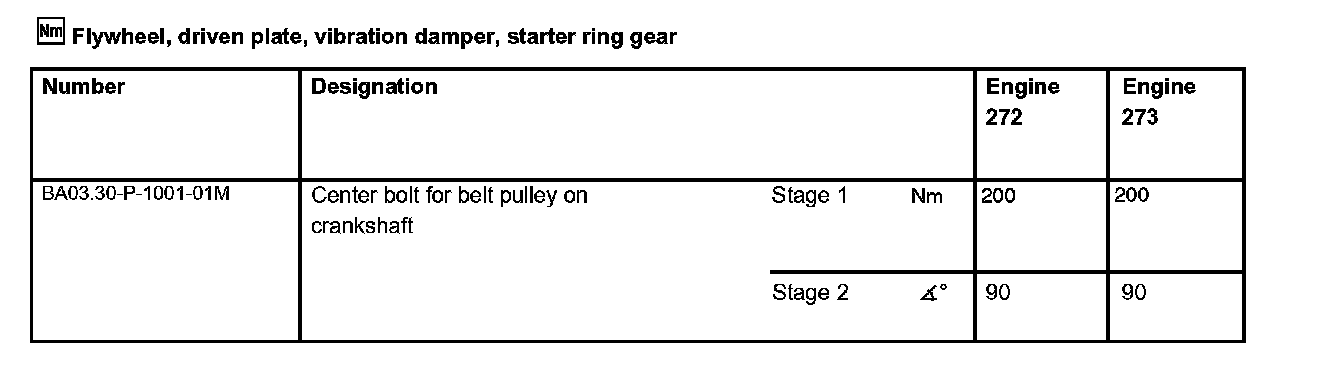

Flywheel, driven plate, vibration damper, starter ring gear:
