Brake Warning Indicator: Diagrams

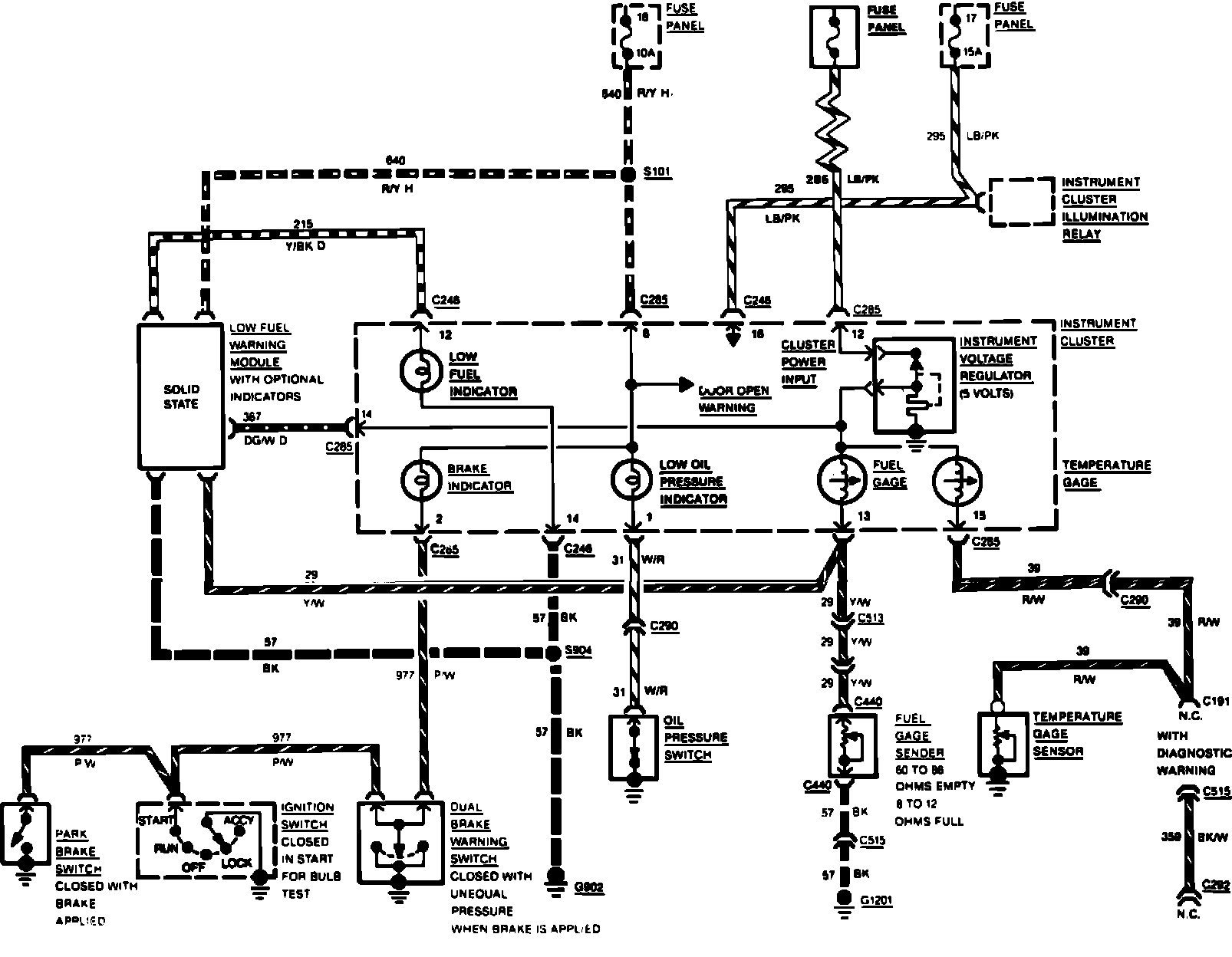

Fig. 13 Brake, Low Fuel, Oil Pressure & Temperature Gauge Wiring Circuit (Less Electronic Cluster). 1985 3.8 Litre & 5.0 Litre Engines:
