Premium Sound (Conventional)
Premium Sound (Conventional)

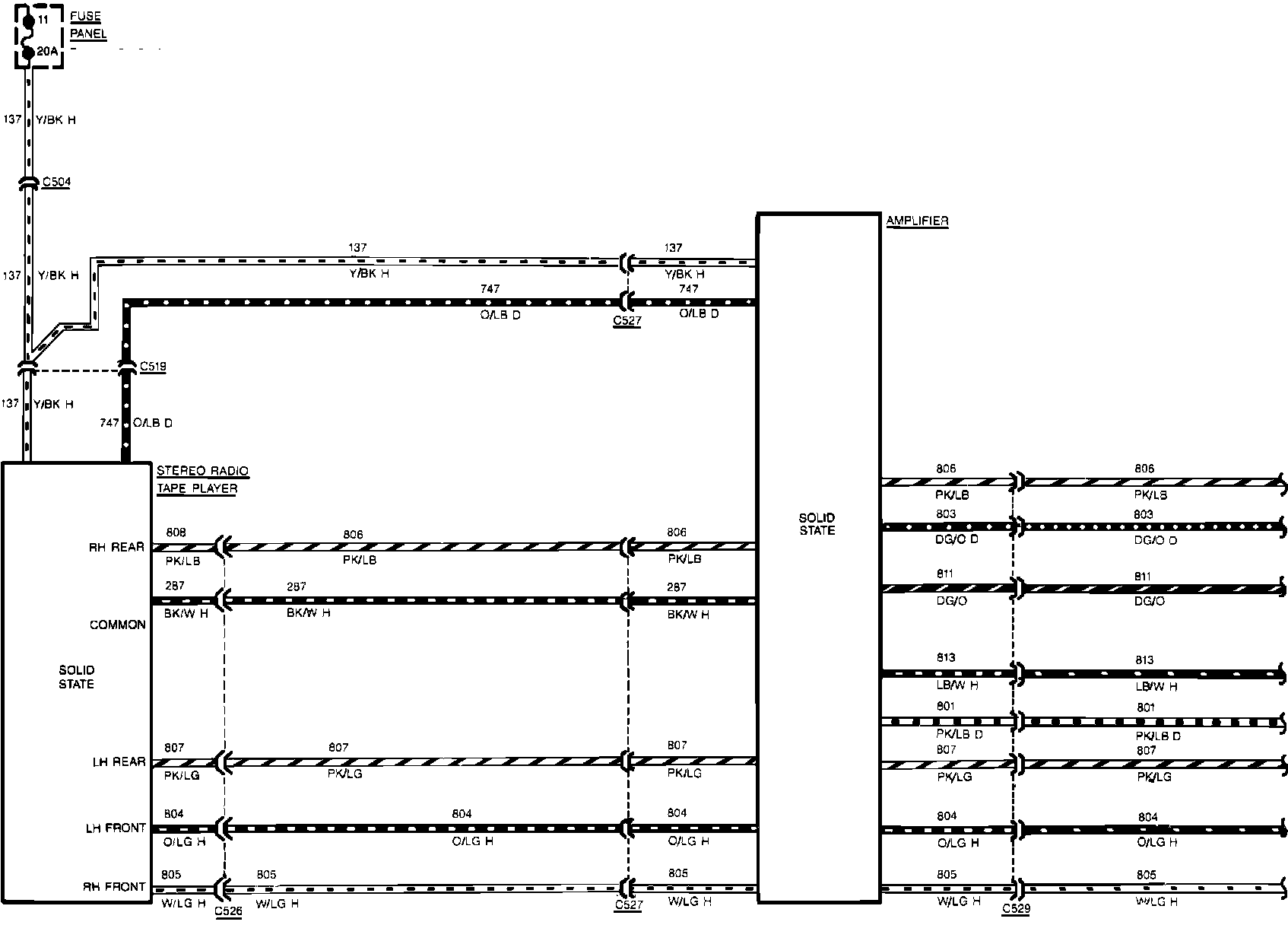

Fig. 41 Radio Wiring Circuit (With Premium Sound, Conventional). 1985:
