NC4: Clutch Cycling Pressure Switch (CCPS) Function, W/ MTC

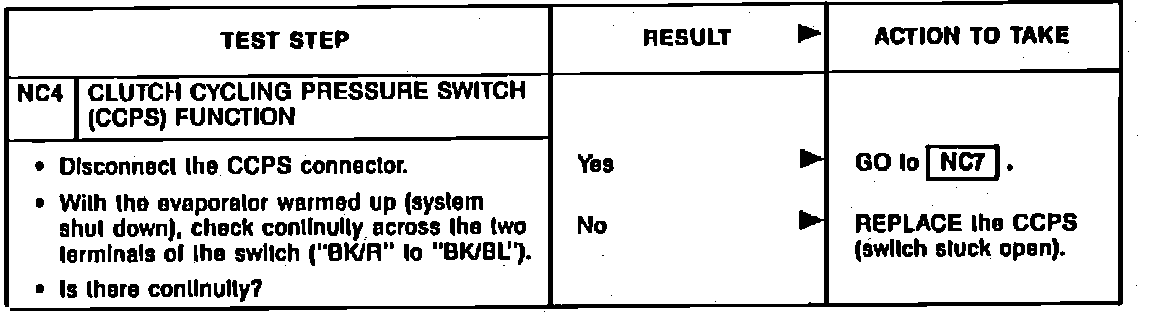

Fig. 37 Compressor clutch diagnosis (Test NC4):
