Headlamp Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

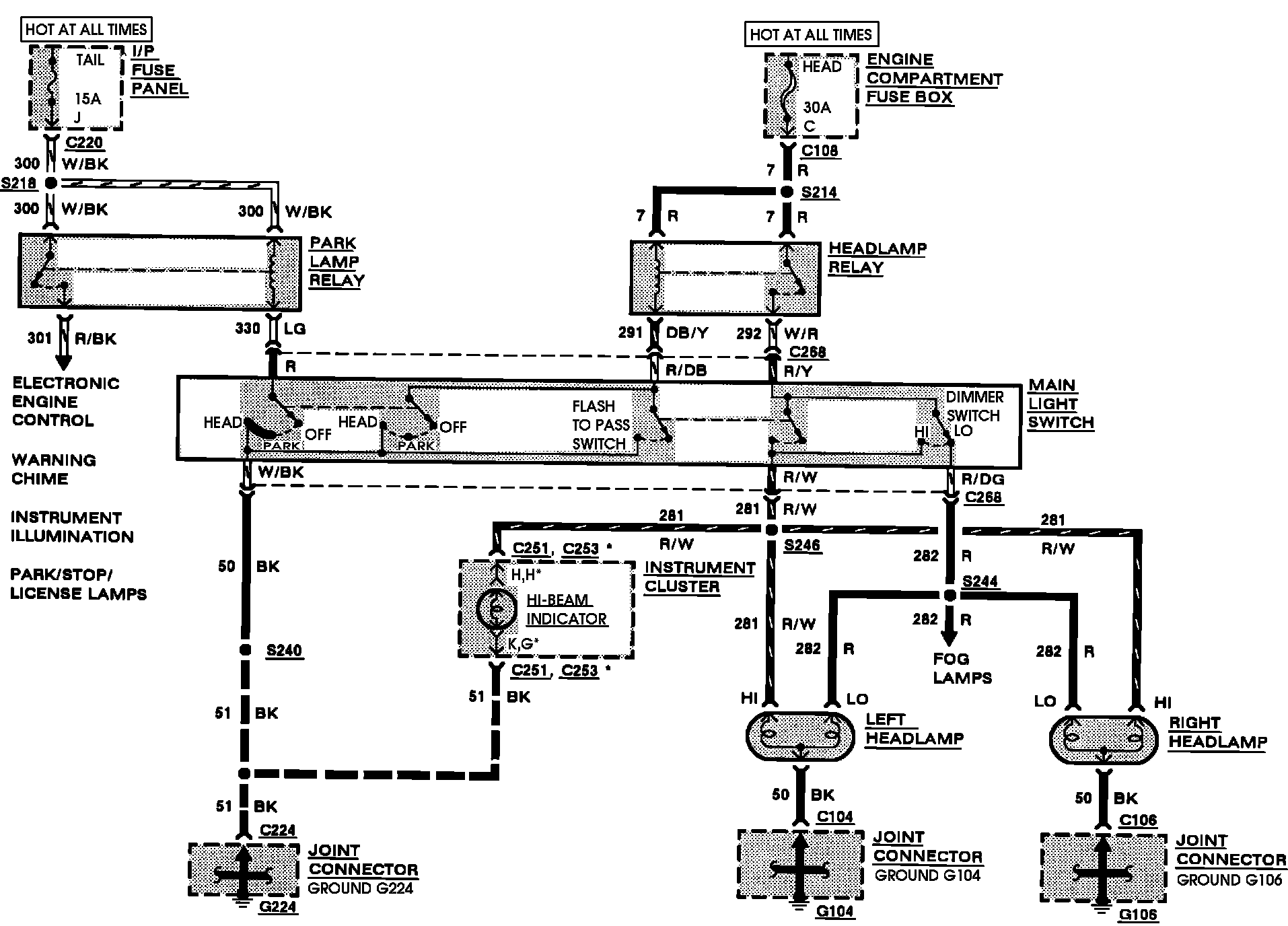

Headlamp. Models Less daytime Running Lamps:
