Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1995
>>
Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C222
C222

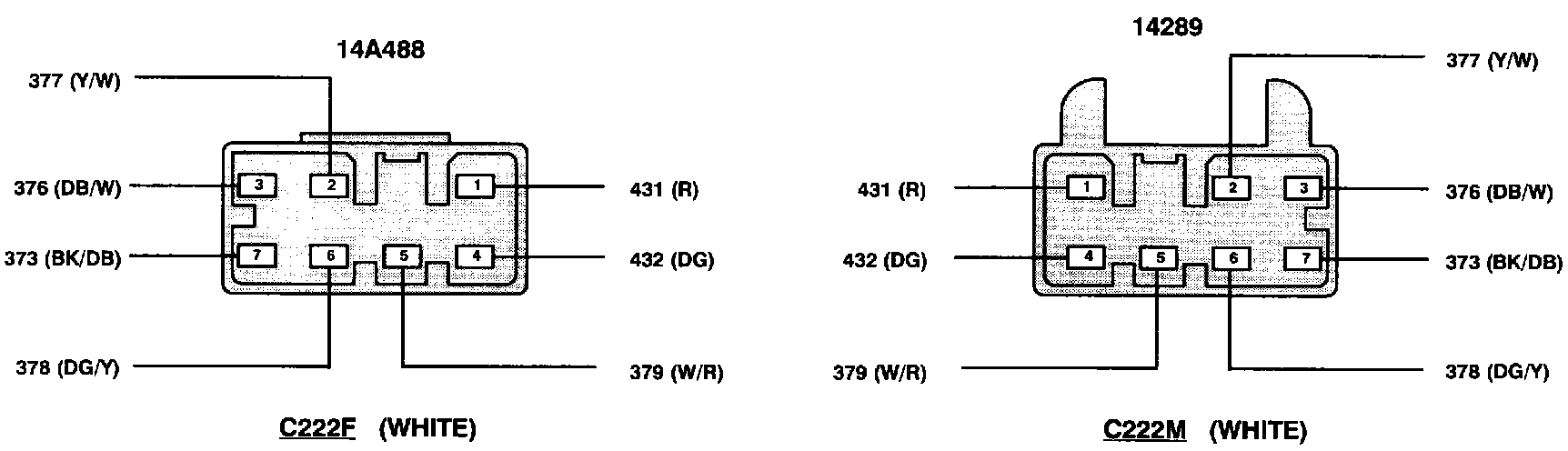

In Line Connector Faces - C222:
