Home >> Mercury >> 1995 >> Tracer L4-116 1.9L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> AM/FM/Stereo >> Output

Output

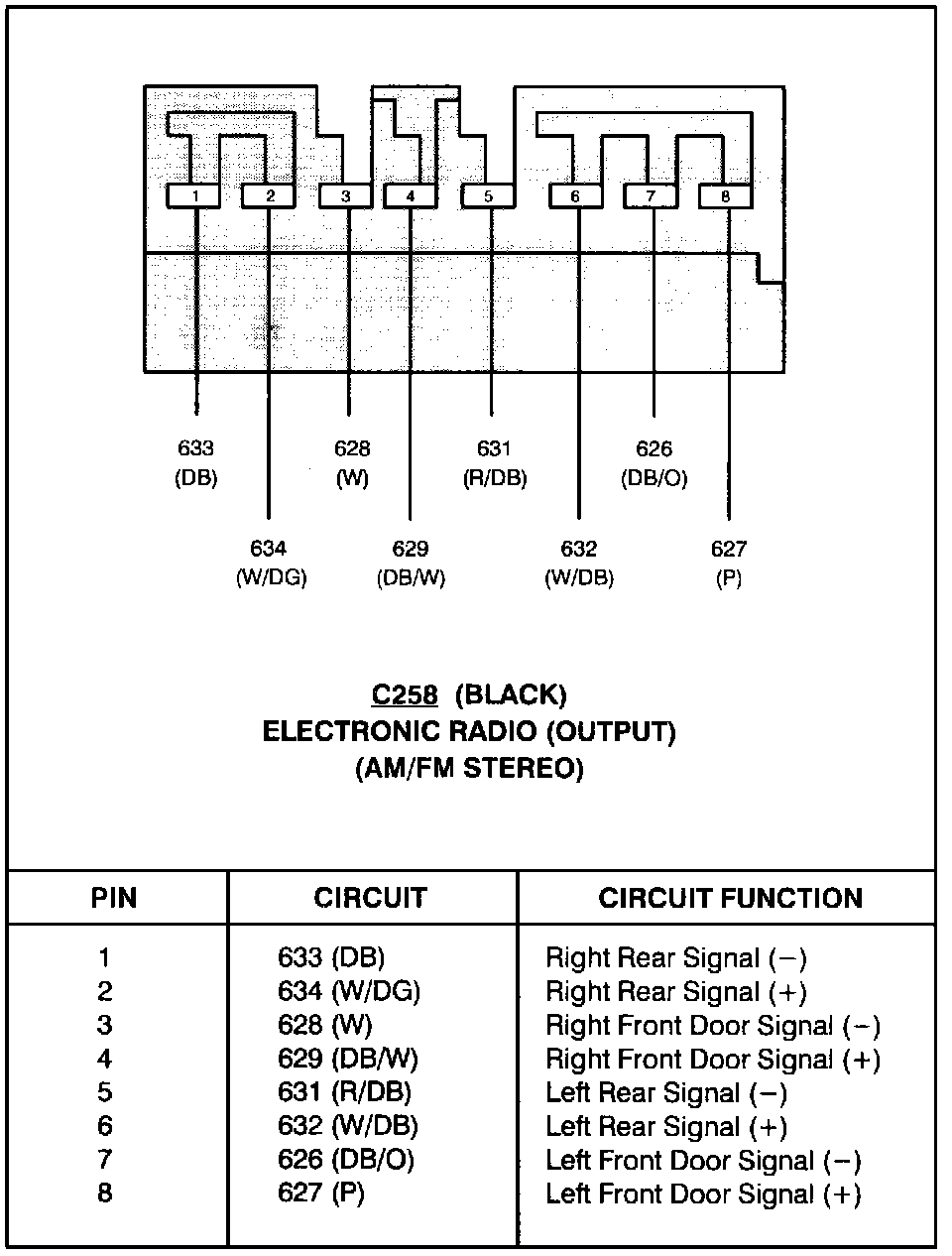

Electronic Radio (Output) (AM/FM Stereo):
