Home >> Mercury >> 1995 >> Tracer L4-116 1.9L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System >> Diagrams For Use With Test Harness

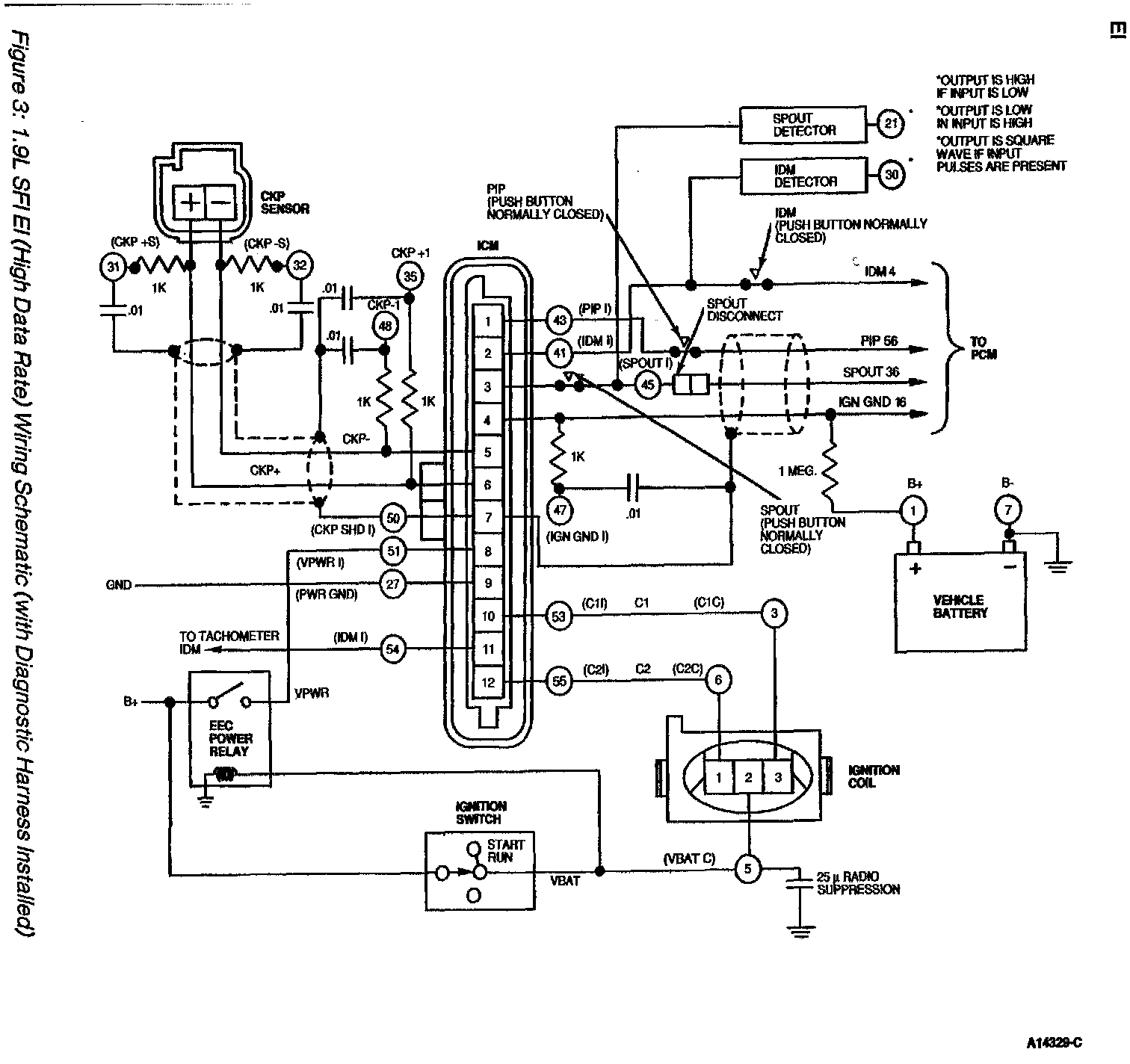

Diagrams For Use With Test Harness
