Home
>>
Mercury
>>
1995
>>
Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Restraints and Safety Systems
>>
Seat Belt Control Module
>>
Locations
>>
Station Wagon
Station Wagon

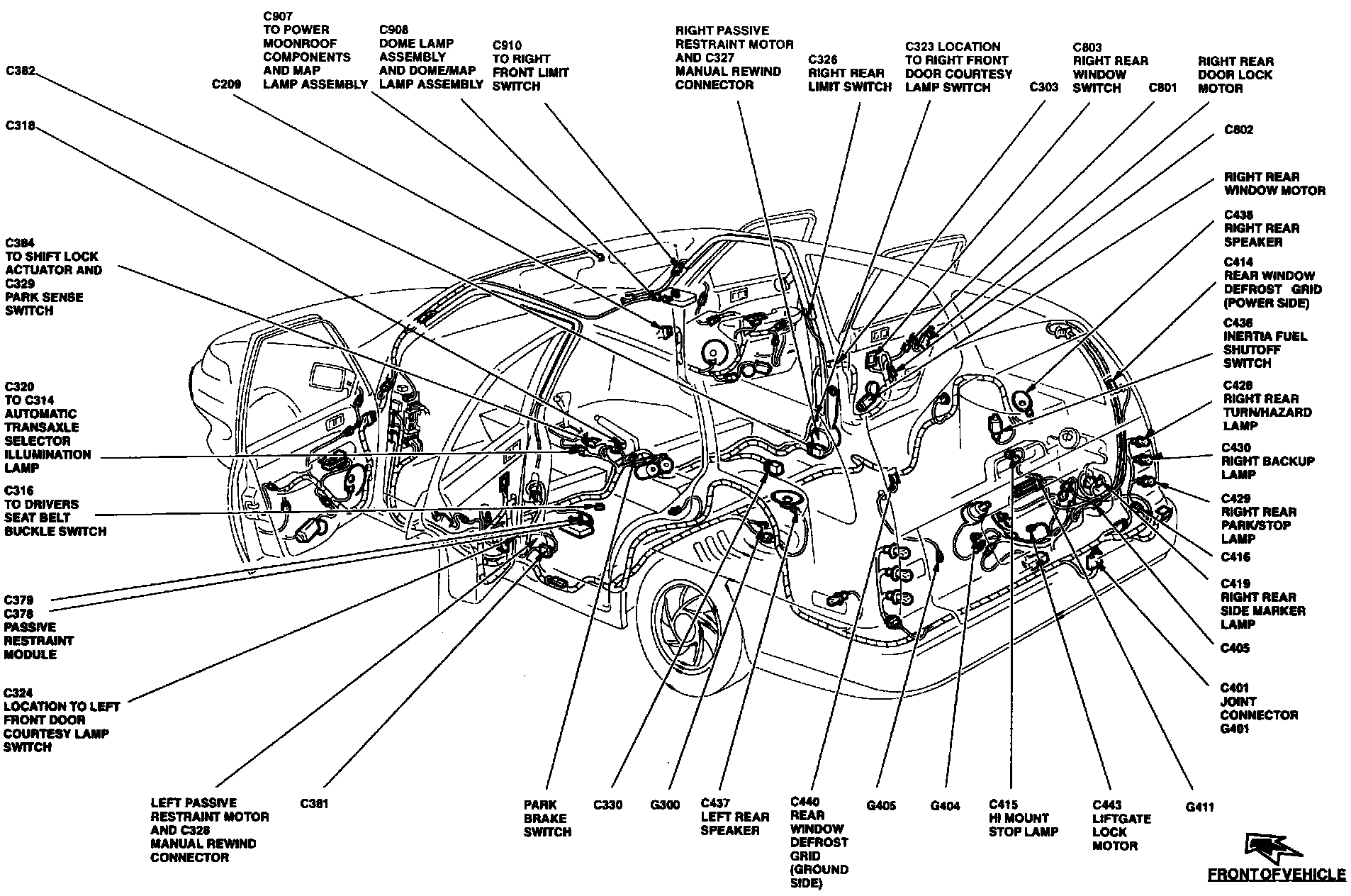

Full Body View (Station Wagon):
The Passive Restraint Module is located under LH front seat.
