Mercury
>>
1996
>>
Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
Cooling System

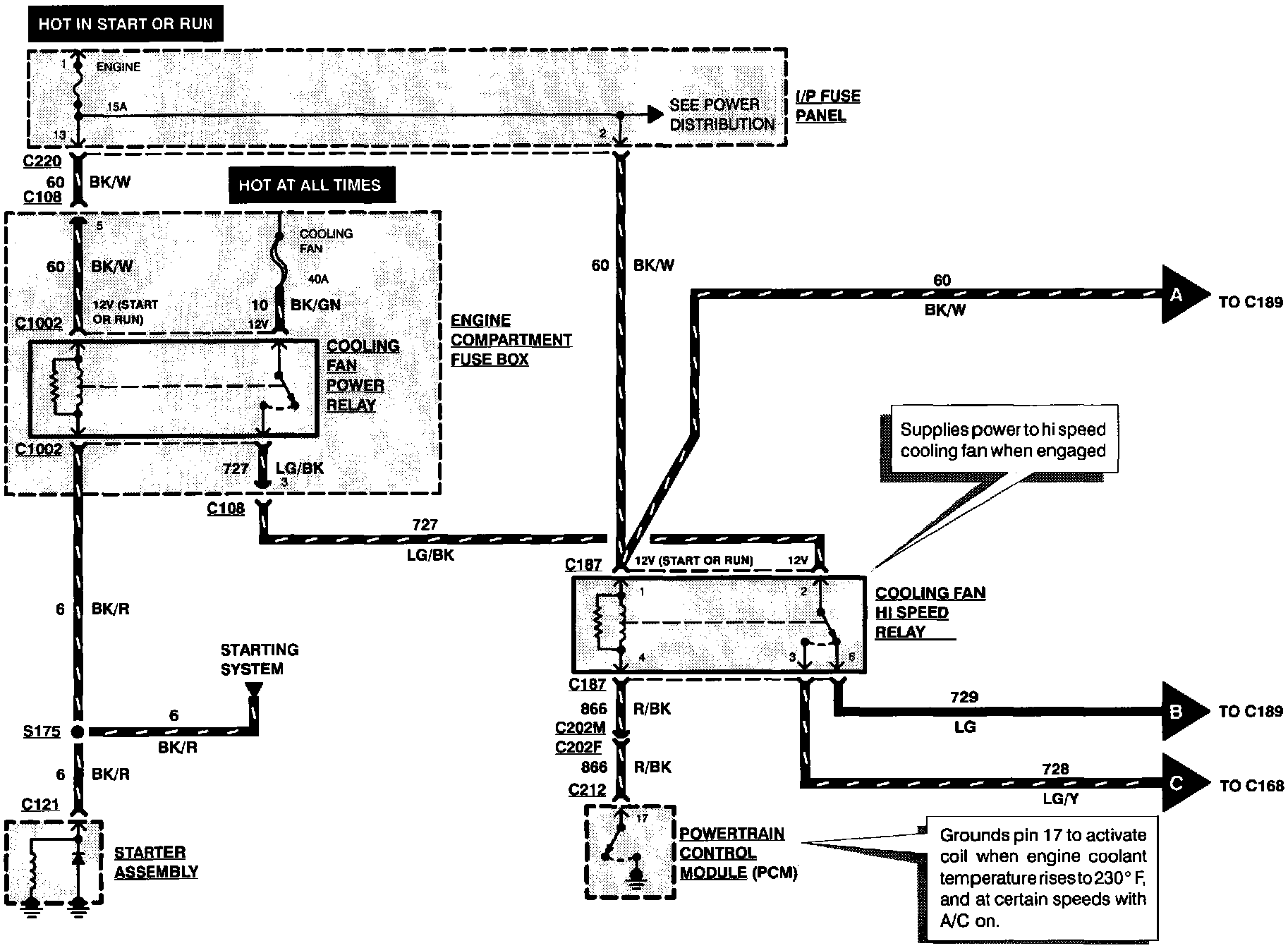

Electric Cooling Fan (Part 1 Of 2):

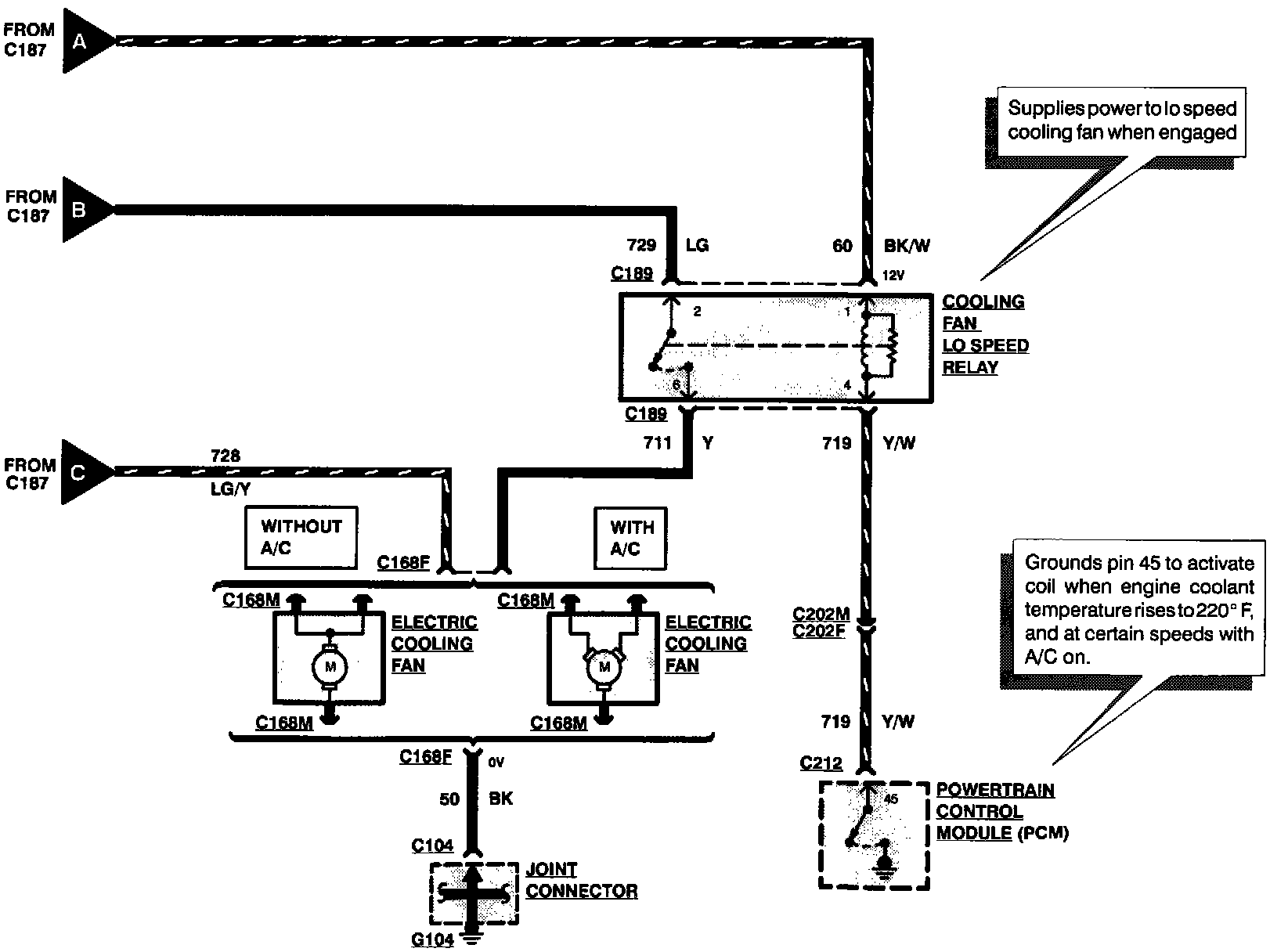

Electric Cooling Fan (Part 2 Of 2):
