TD - Transmission Range (TR) Sensor
>>
Tables and Charts
Tables and Charts

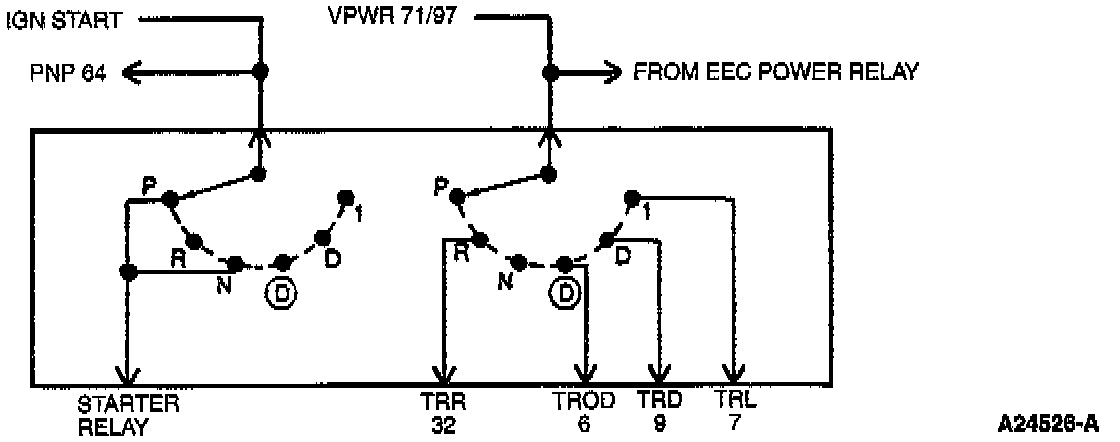

Escort/Tracer - Internal TR Sensor Configuration:
Internal TR Sensor Configuration:
Voltage And Resistance Specification Chart:
