Component Tests

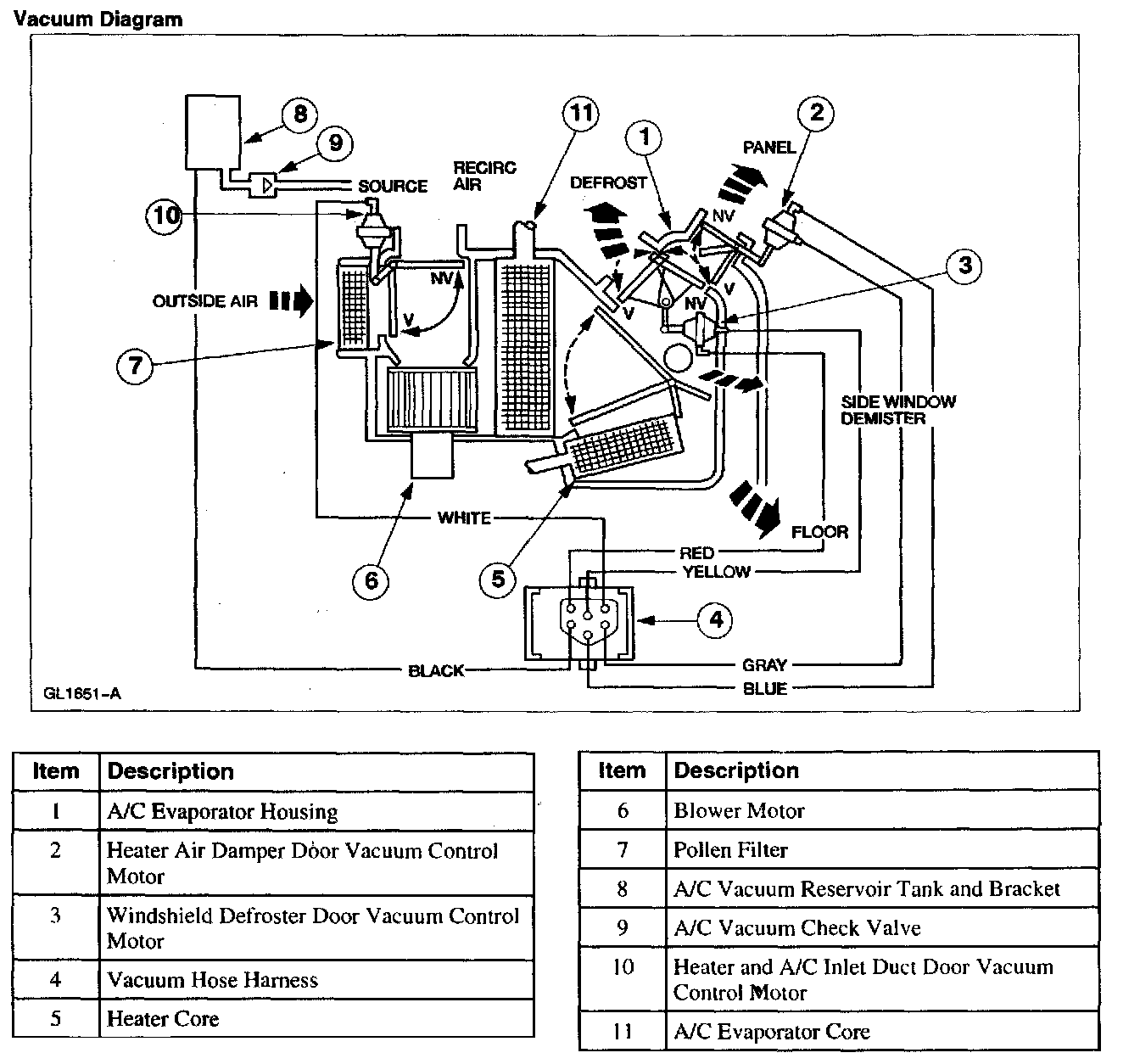

Vacuum Diagram:






Vacuum Control Chart, Part 1:






Vacuum Control Chart, Part 2:
