Fuel Filter: Description and Operation

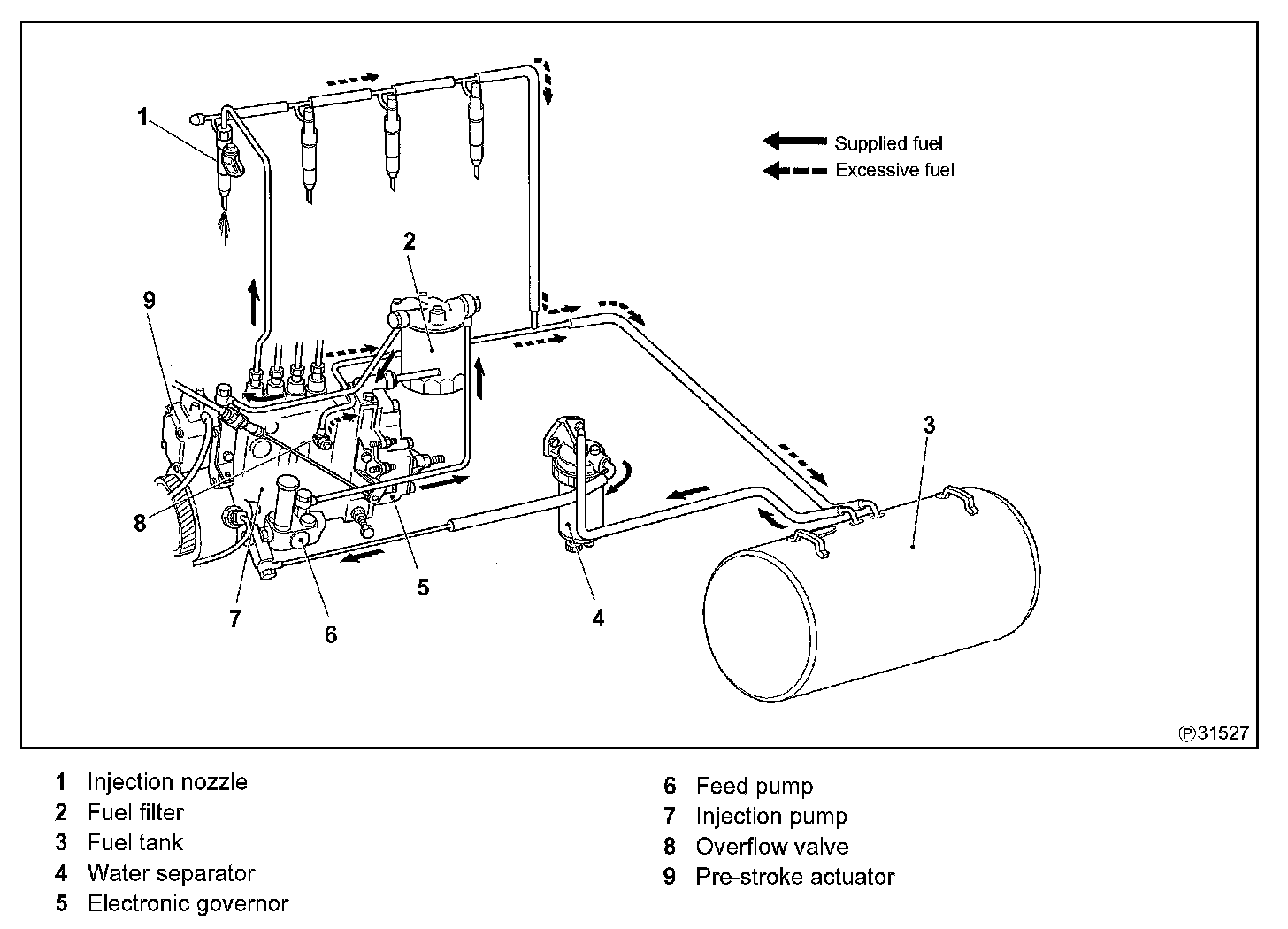

STRUCTURE AND OPERATIONFuel System (Flow of Fuel)

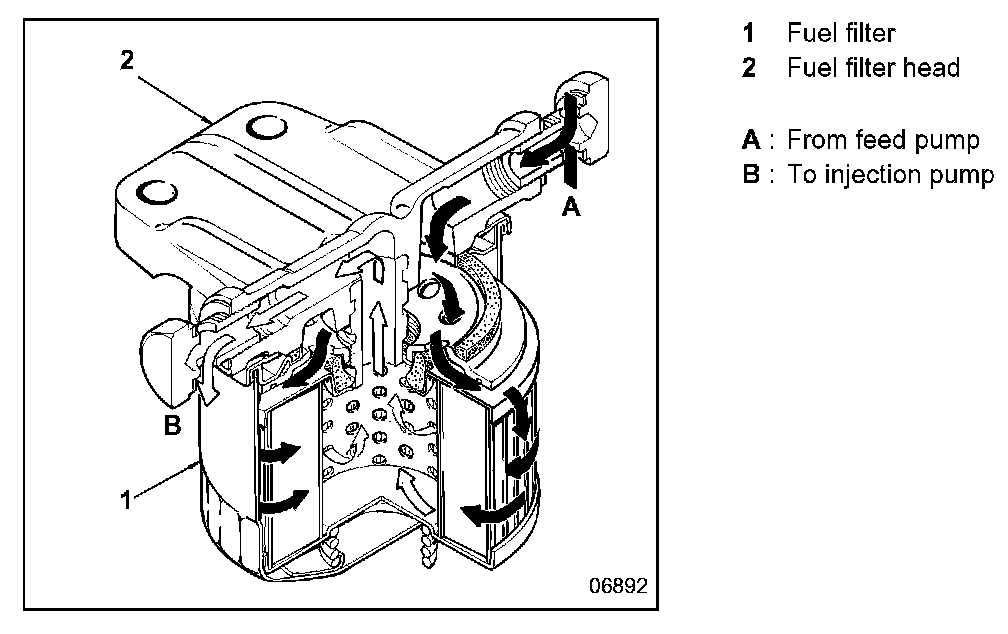

Fuel Filter
Pressurized fuel is delivered from the feed pump of the injection pump to the fuel filter which separates water from the fuel. Dirt and other foreign particles are removed from the fuel by fuel filter 1.
