Materials and Special Tools Required

* Fast Idle Release Driver.

Note:

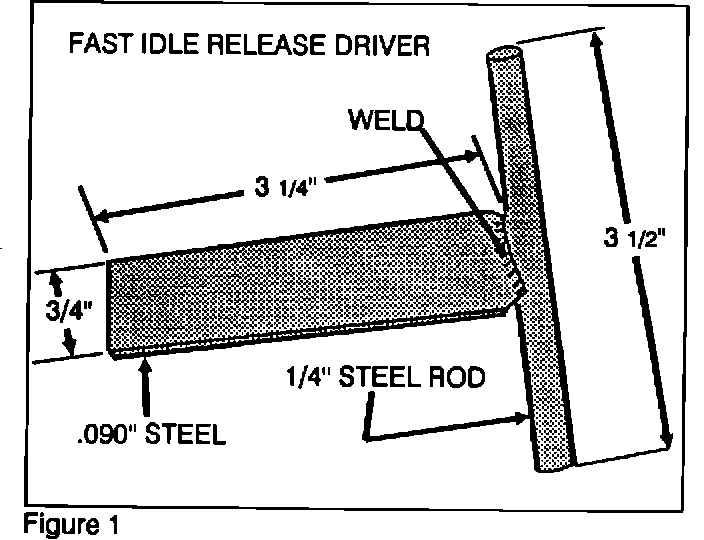

This special tool was included with bulletin EMR-89-001. In the event that the tool has been misplaced, see Figure 1 for make up specifications.

* Carburetor spray cleaner.

* Exhaust emission analyzer.

* Digital Volt-Ohm meter.

* Tachometer.

* Anti-seize compound.

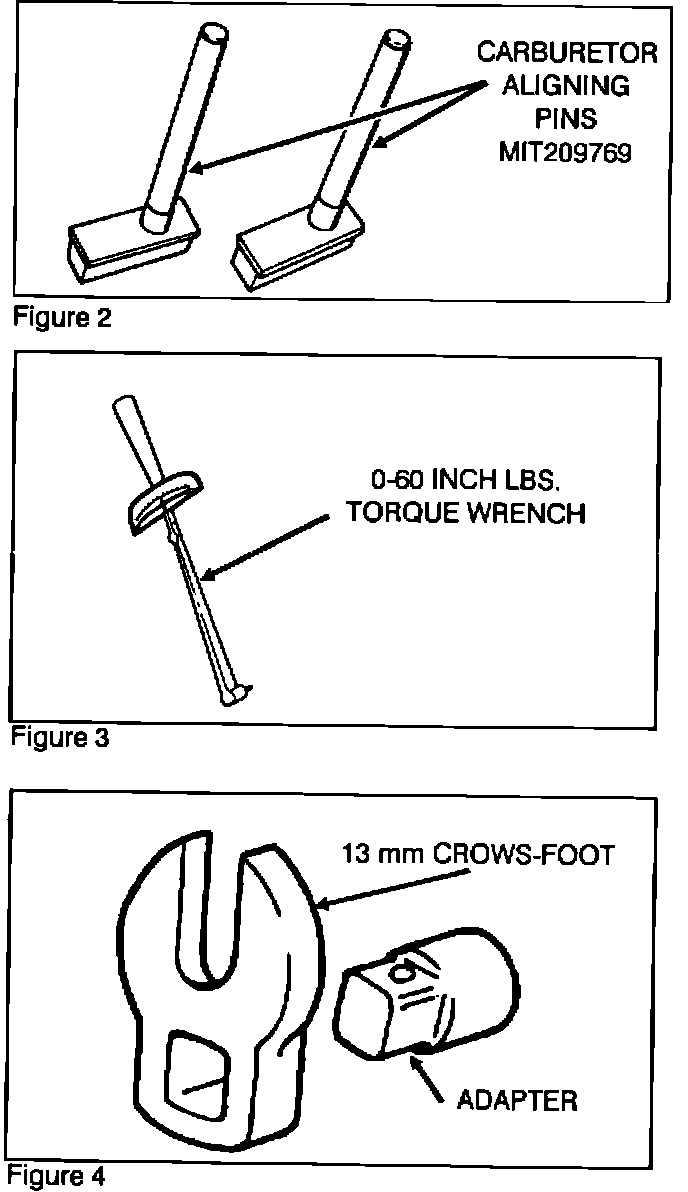

* MIT209769 - Carburetor aligning pins (Figure 2).

* 0-60 INCH lbs. Torque wrench (Figure 3).

* 13 mm crows-foot and adapter (Figure 4).

* Penetrating oil.

* Timing light.

* Crocus Cloth.

* Pressure Regulated air blow gun.

* Shop vacuum cleaner.

* "O-Ring" pick.

* Safety goggles.
