Cylinder Head Tightening Specifications

Torque Sequence:

Part 1 Of 2:

Part 2 Of 2:

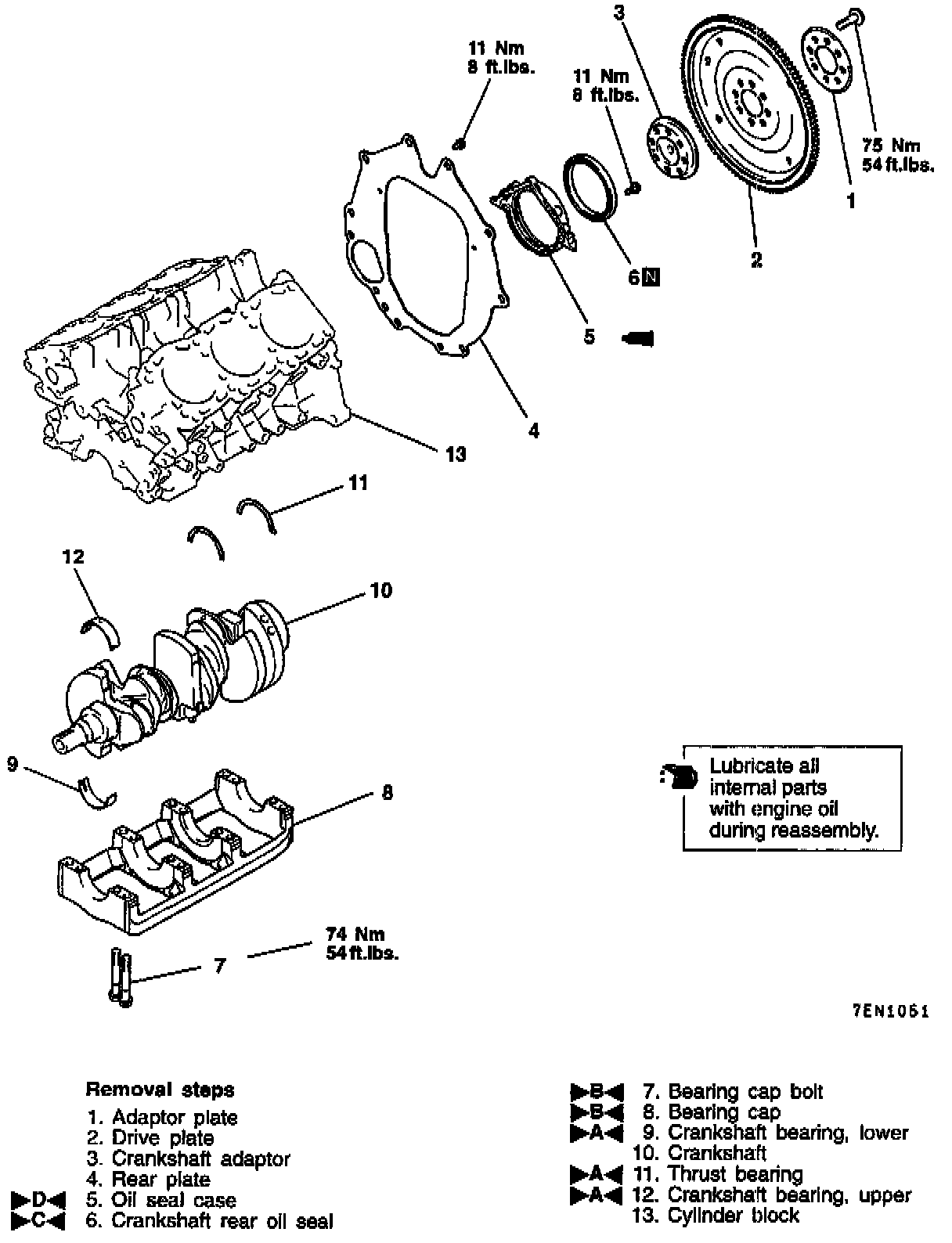

Bearing Cap Bolt 74 Nm (54 ft. lbs.)

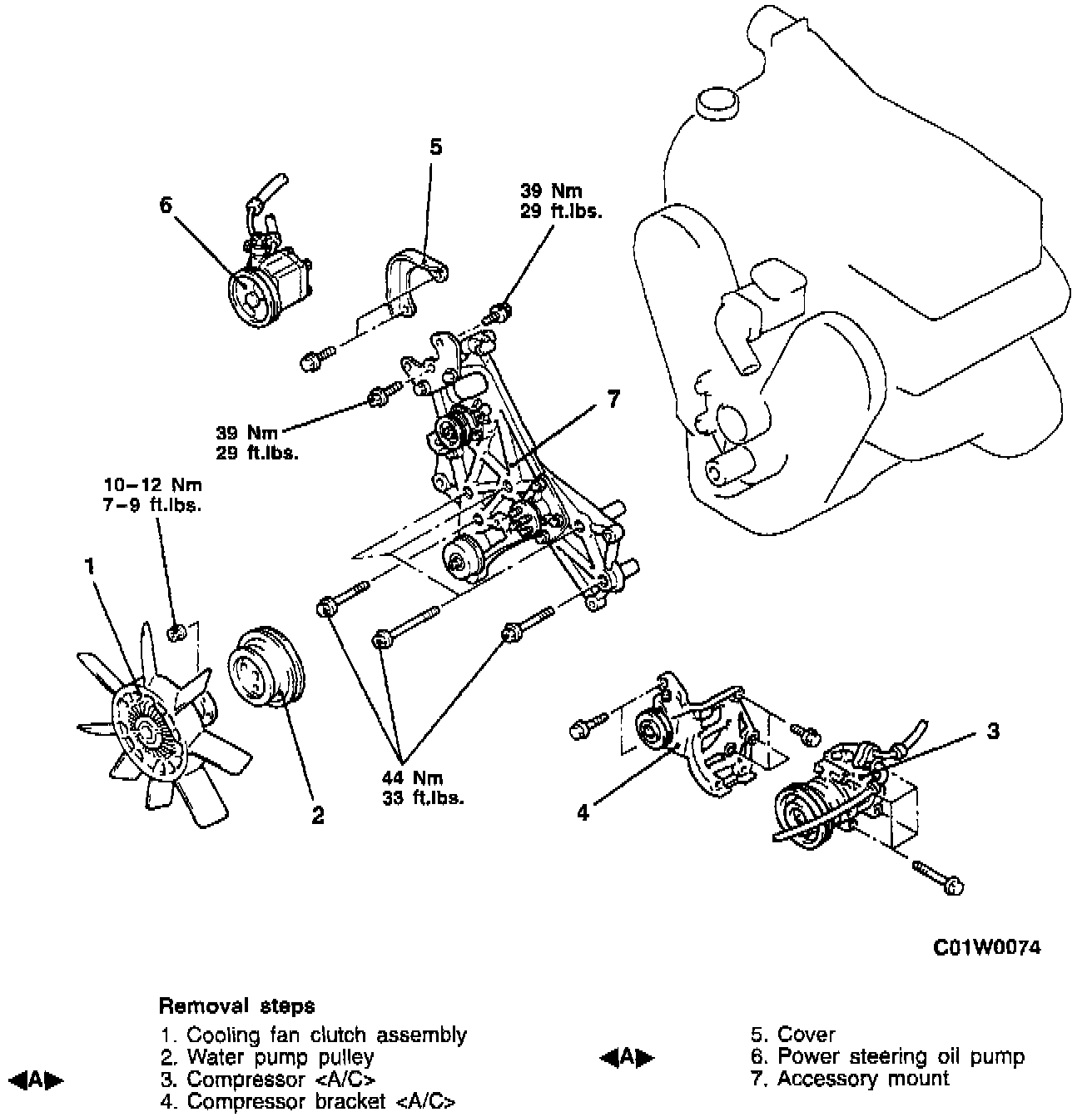

Bracket Bolt:
M8 22 Nm (16 ft. lbs.)
M10 41 Nm (30 ft. lbs.)
M12 75 Nm (54 ft. lbs.)
