Control Unit: Testing and Inspection

REAR DIFFERENTIAL LOCK CONTROL UNIT

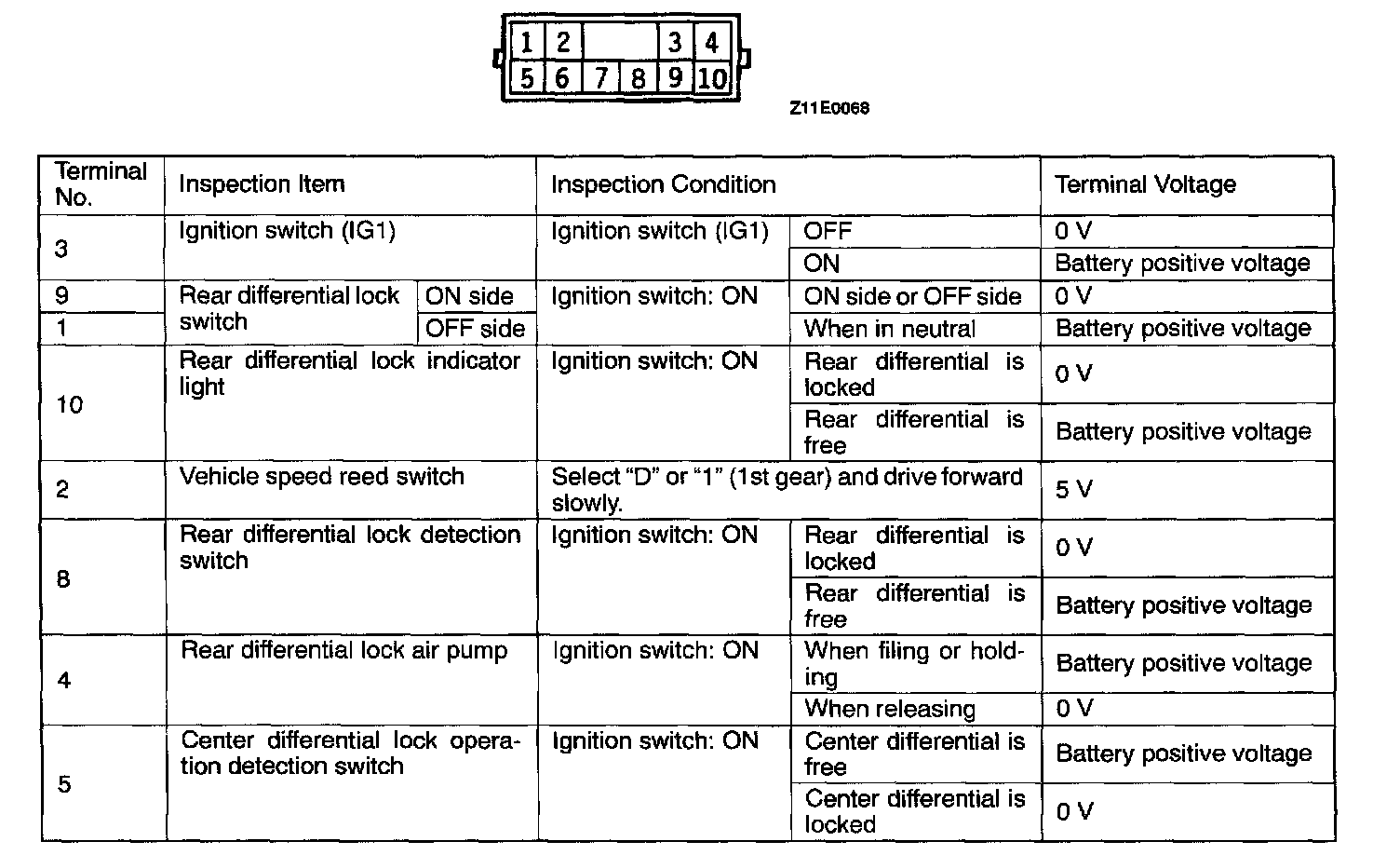

1. Measure the terminal voltages under each condition.





2. With the control unit connected to the harness and the probe inserted into the rear of the harness connector, carry out the voltage measurements between terminal (6) (ground terminal) and each other terminal.
