Output Shaft Speed Sensor Check

OUTPUT SHAFT SPEED SENSOR CHECK





1. Disconnect the vehicle speed sensor connector.

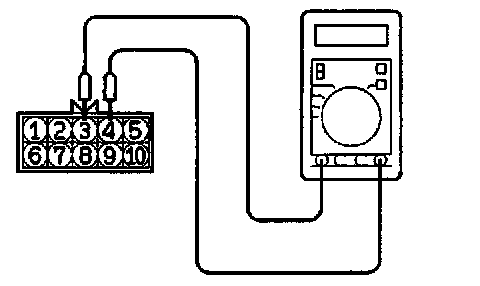

2. Measure the resistance between terminals No. 3-4 of the sensor-side connector.
Standard value: 620 ± 6O Ohms [at 20°C (68°F)]
3. If the resistance is outside the standard value, replace the vehicle speed sensor.
