Center Differential Lock Operation Detection Switch Check

CENTER DIFFERENTIAL LOCK DETECTION SWITCH CHECK

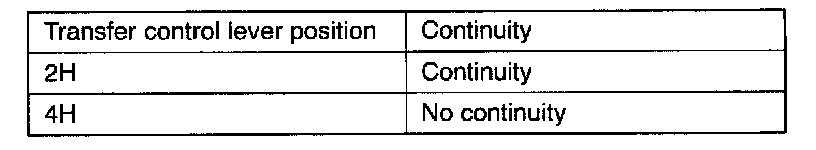

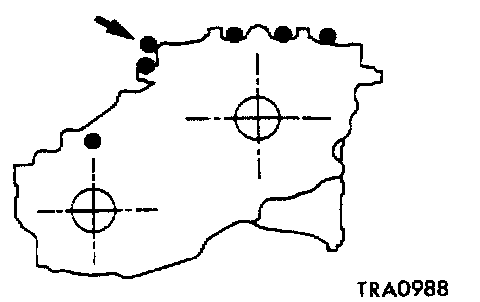

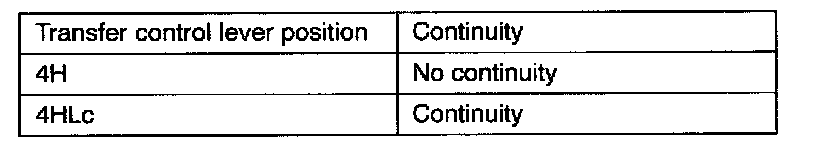

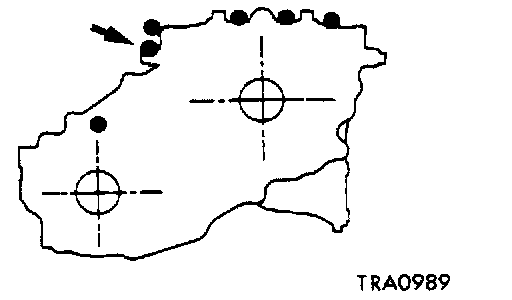

Check for continuity between the brown connector terminal on the side of the transfer case and the transfer case.
