Low Range Operation Detection Switch Check
LOW RANGE OPERATION DETECTION SWITCH CHECK

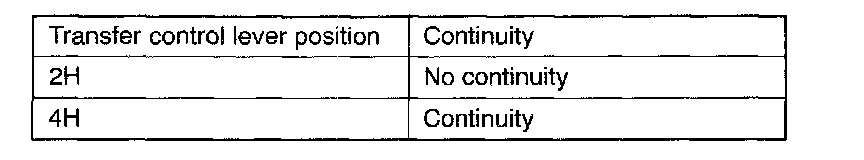

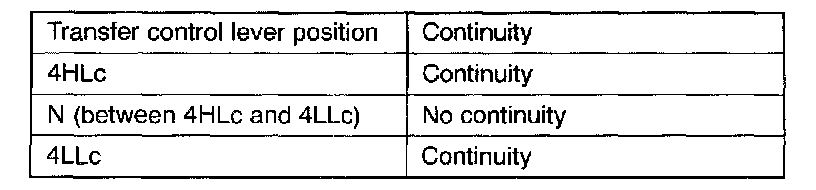

Check for continuity between the white connector terminal on the side of the
transfer case
and the transfer case.
