Mitsubishi Truck
>>
2001
>>
Montero XLS 4WD V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Axle Shaft Assembly
>>
Front Axle
>>

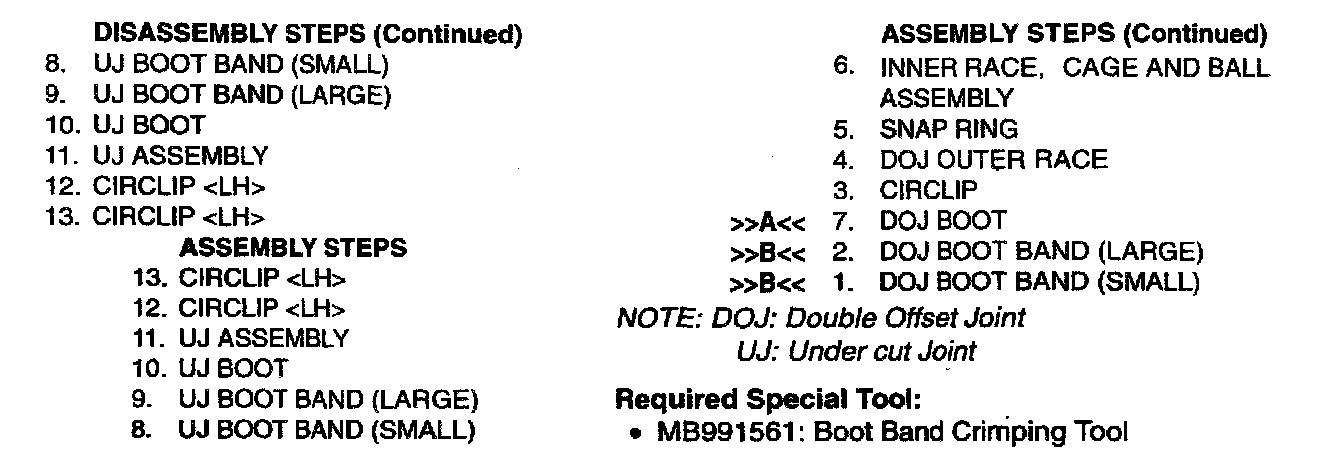

Disassembly and Reassembly
Disassembly and Reassembly

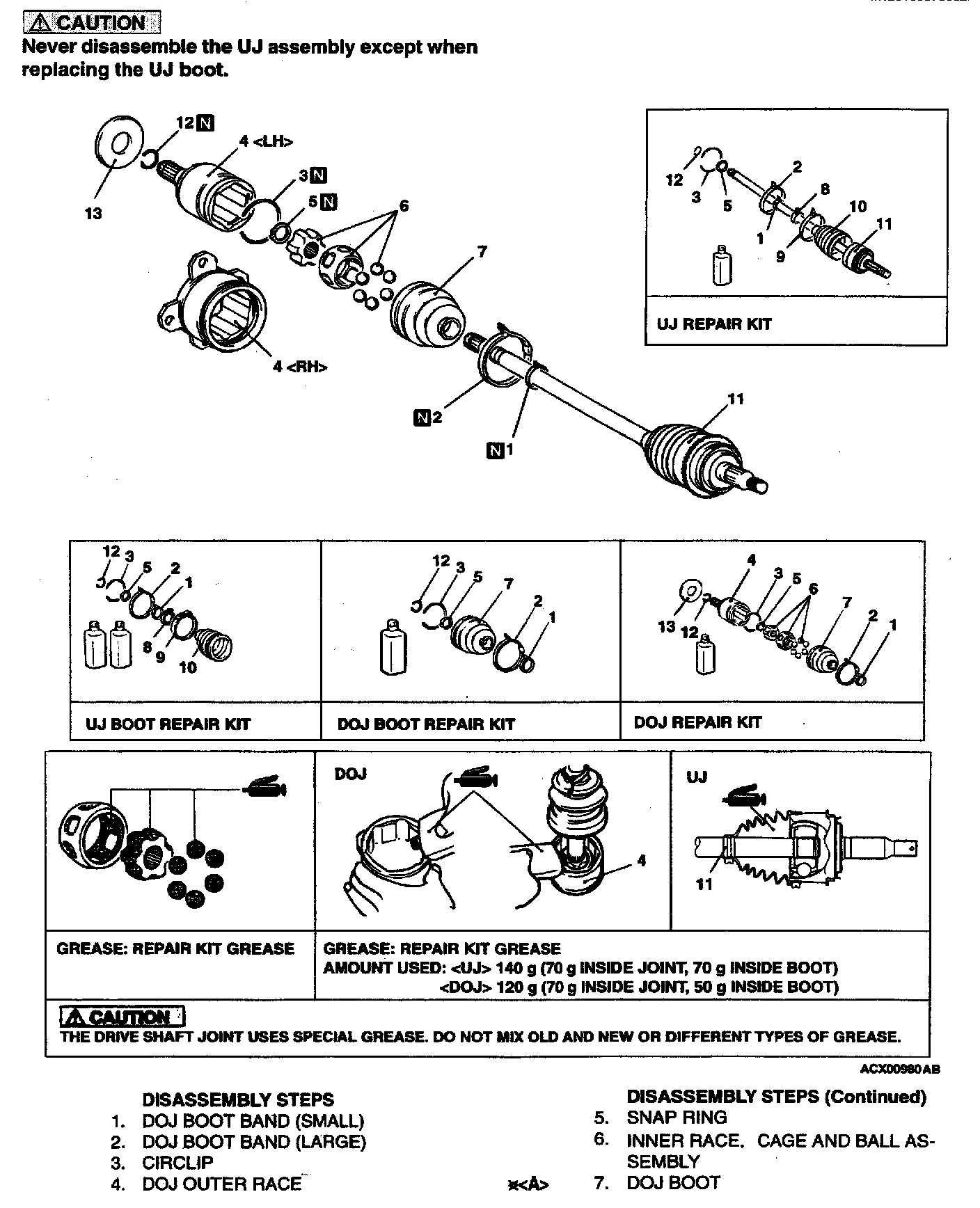

FRONT AXLE OVERHAUL W/ RELATED COMPONENTS
