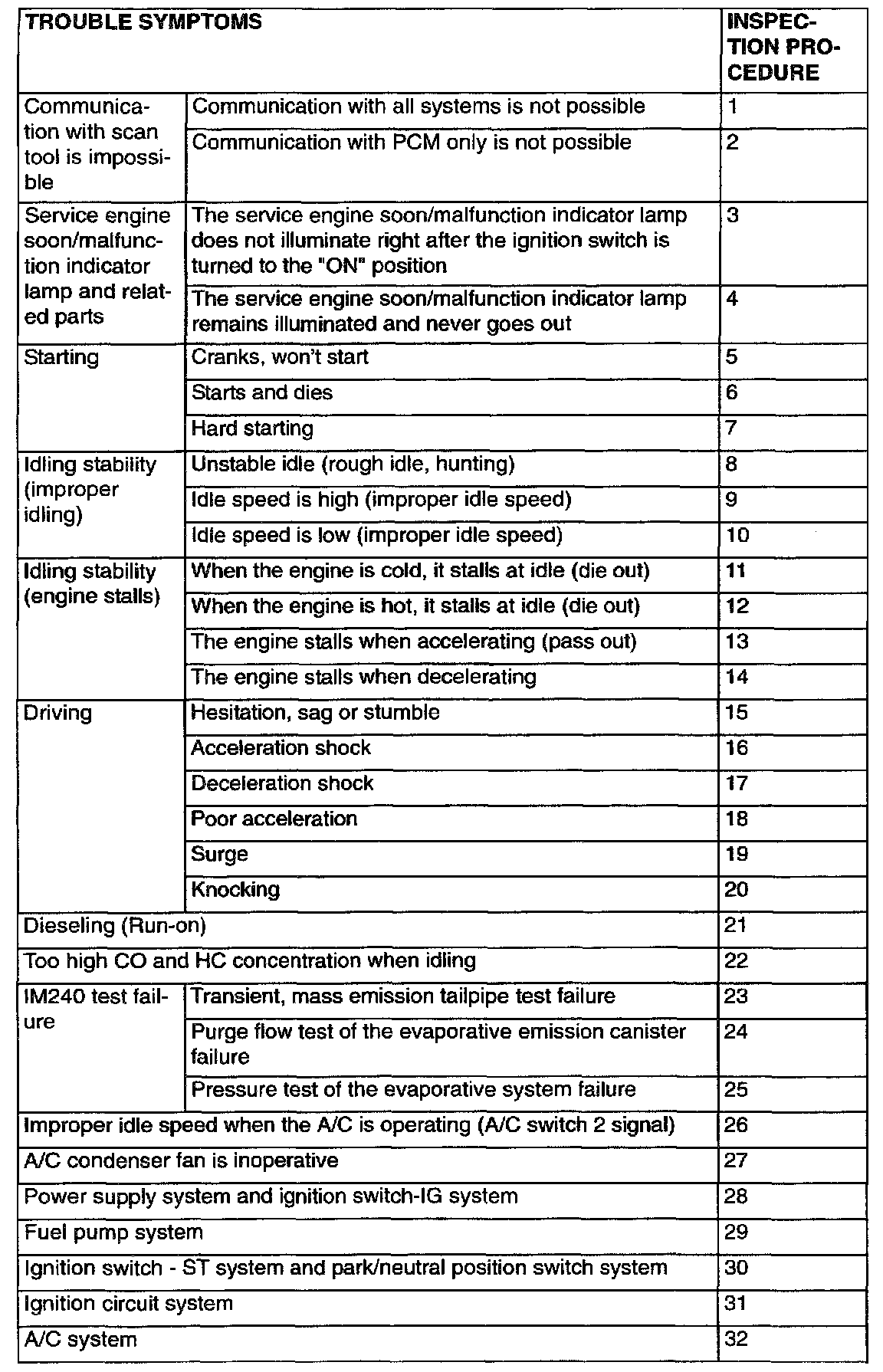

Symptom Chart






NOTE: Check that the PCM ground circuit is normal before checking for the cause of the problem.
