Heater Core Temperature Sensor / Switch: Testing and Inspection

HEATER WATER TEMPERATURE SENSOR CHECK

NOTE: The temperature conditions when checking should not exceed the range shown in the diagram.

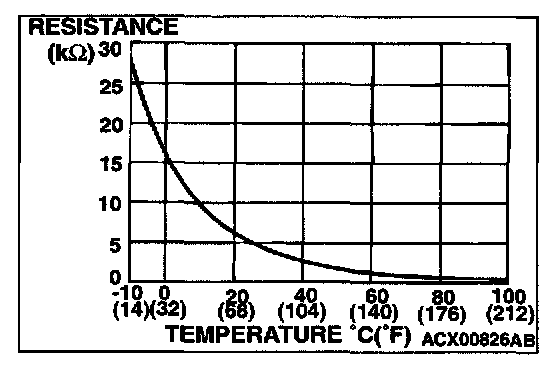

When the resistance between the sensor terminals is measured under two or more temperature conditions, the resistance should approximately satisfy the illustrated values.
