Data List Reference Table

DATA LIST REFERENCE TABLE

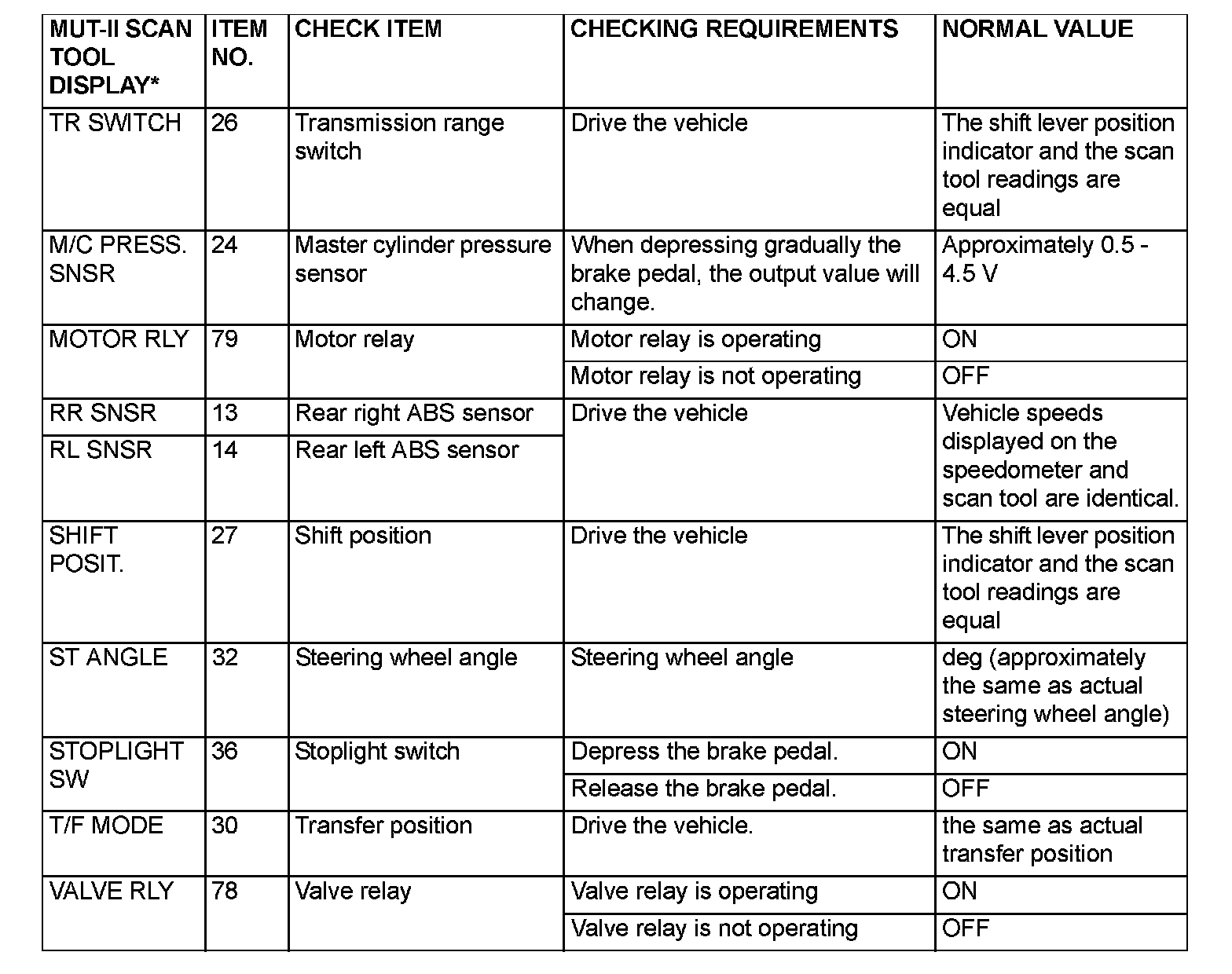

Part 1 Of 2:

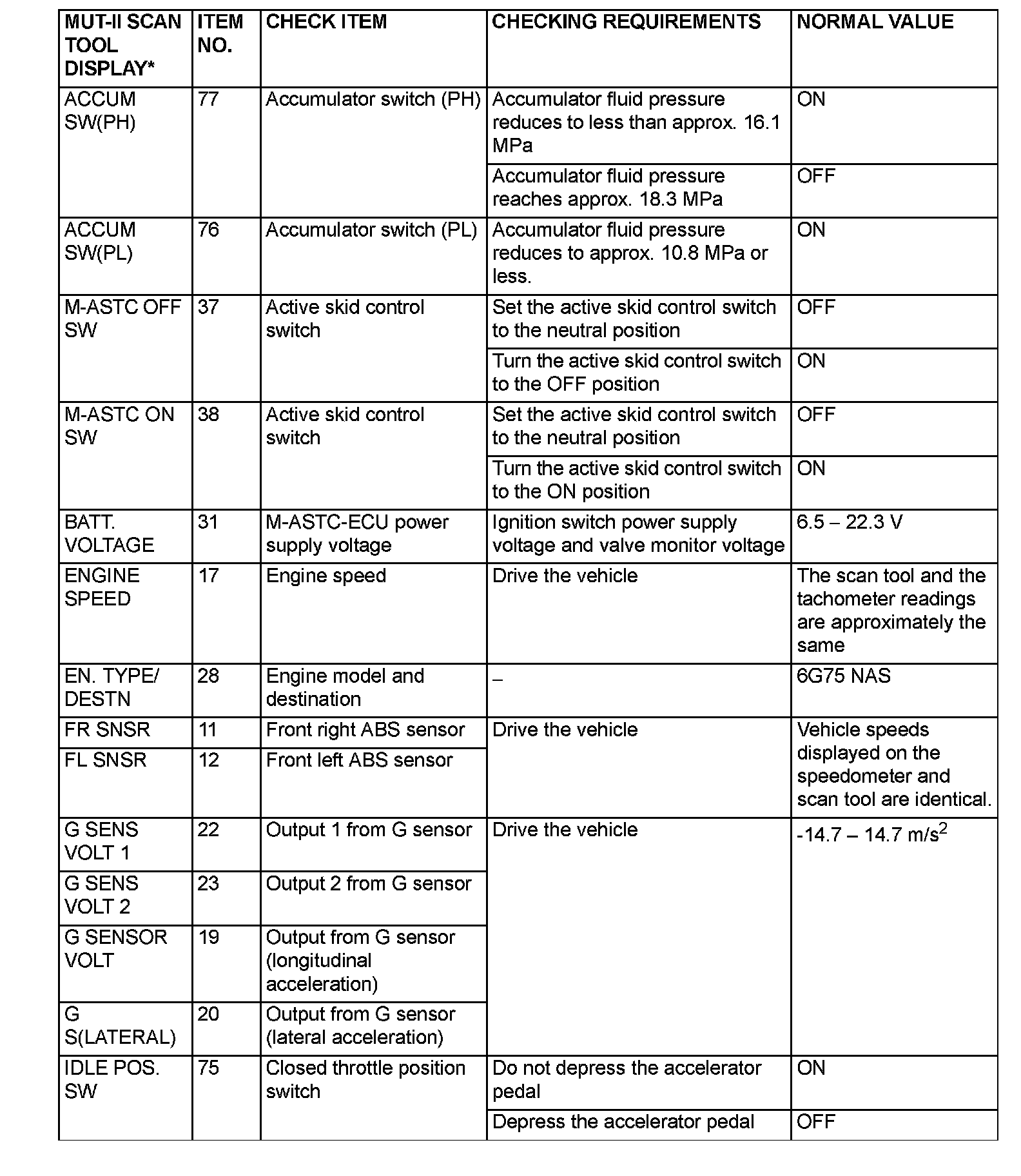

Part 2 Of 2:





The following items can be read by the scan tool from the M-ASTC-ECU input data.
