Intake Manifold Plenum and Throttle Body Assembly

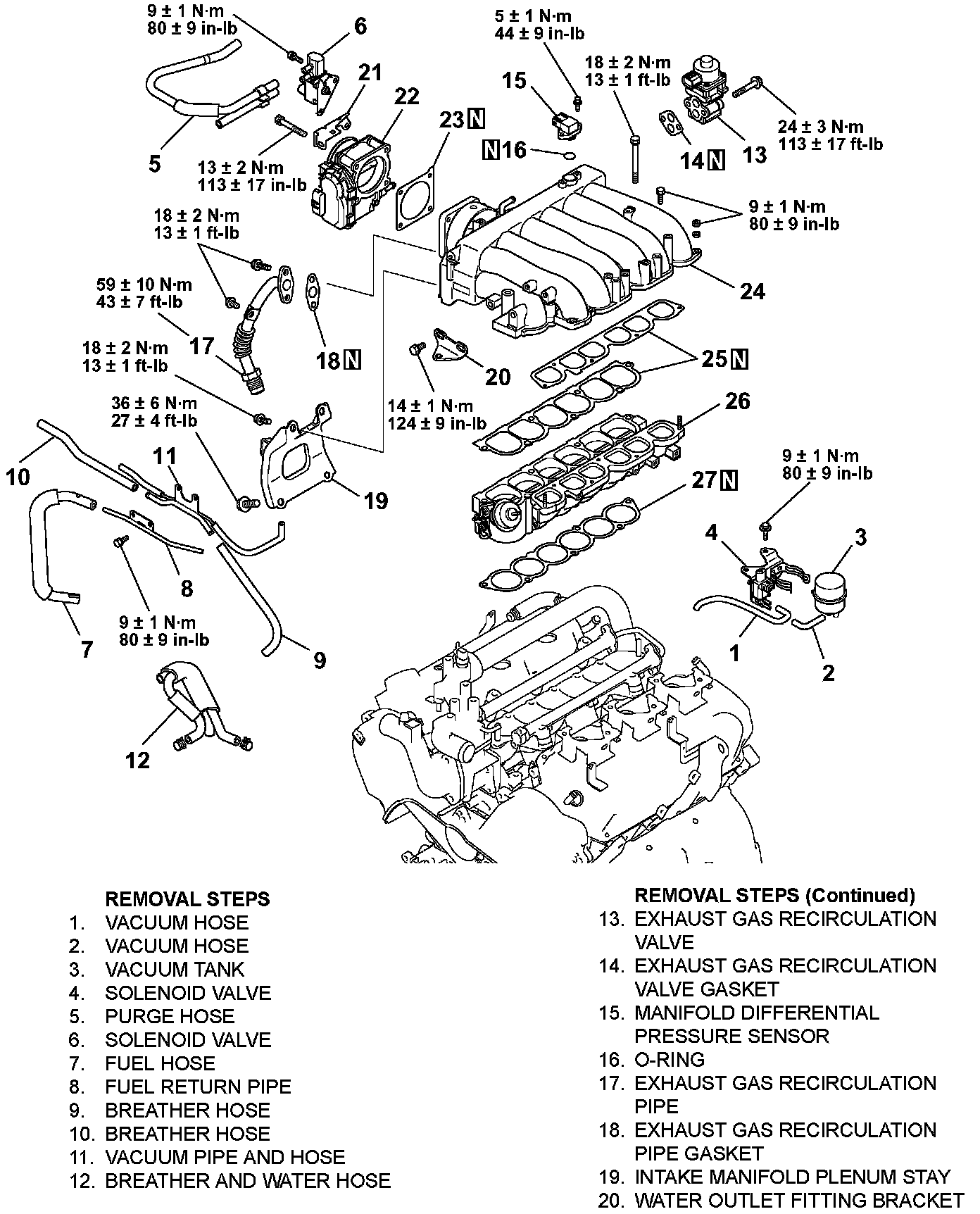

Part 1 Of 2:

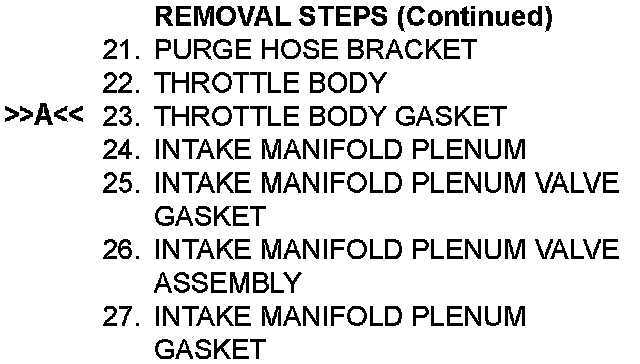

Part 2 Of 2:





INTAKE MANIFOLD PLENUM AND THROTTLE BODY ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
