Air Thermo Sensor Inspection

AIR THERMO SENSOR CHECK

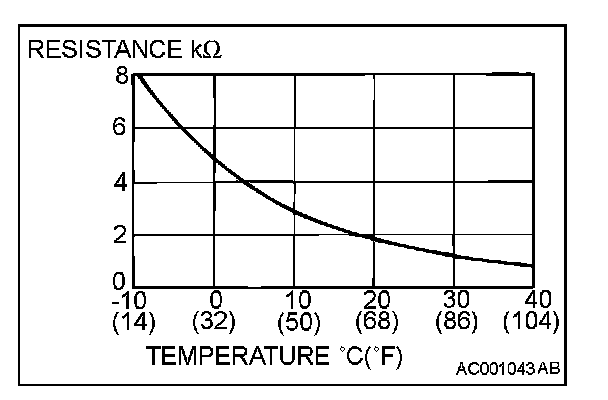

NOTE: The temperature conditions when checking should not exceed the range shown in the diagram.




When the resistance between the sensor terminals is measured under two or more temperature conditions, the resistance should approximately satisfy the illustrated values.
