HOW TO USE SWS MONITOR

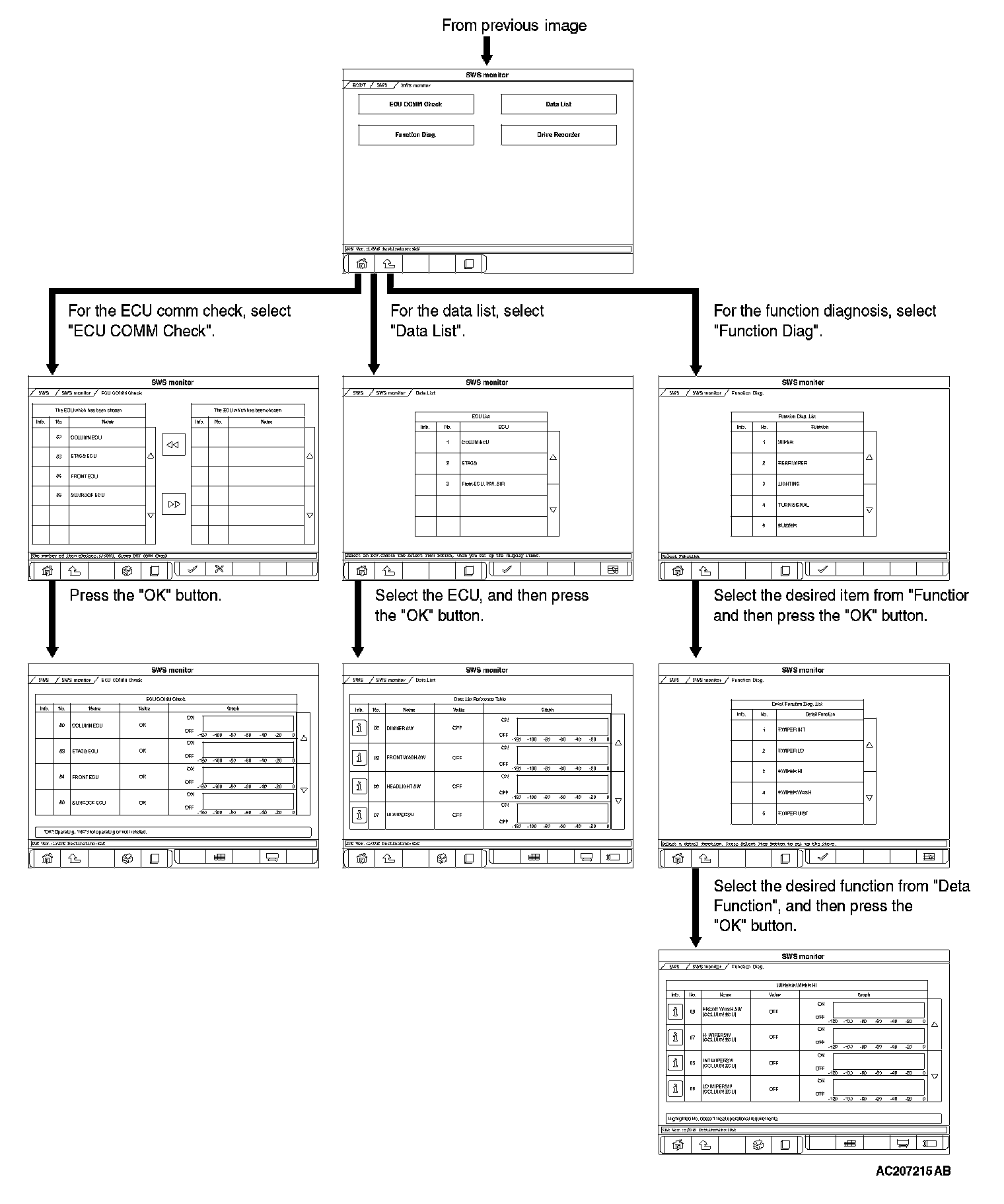

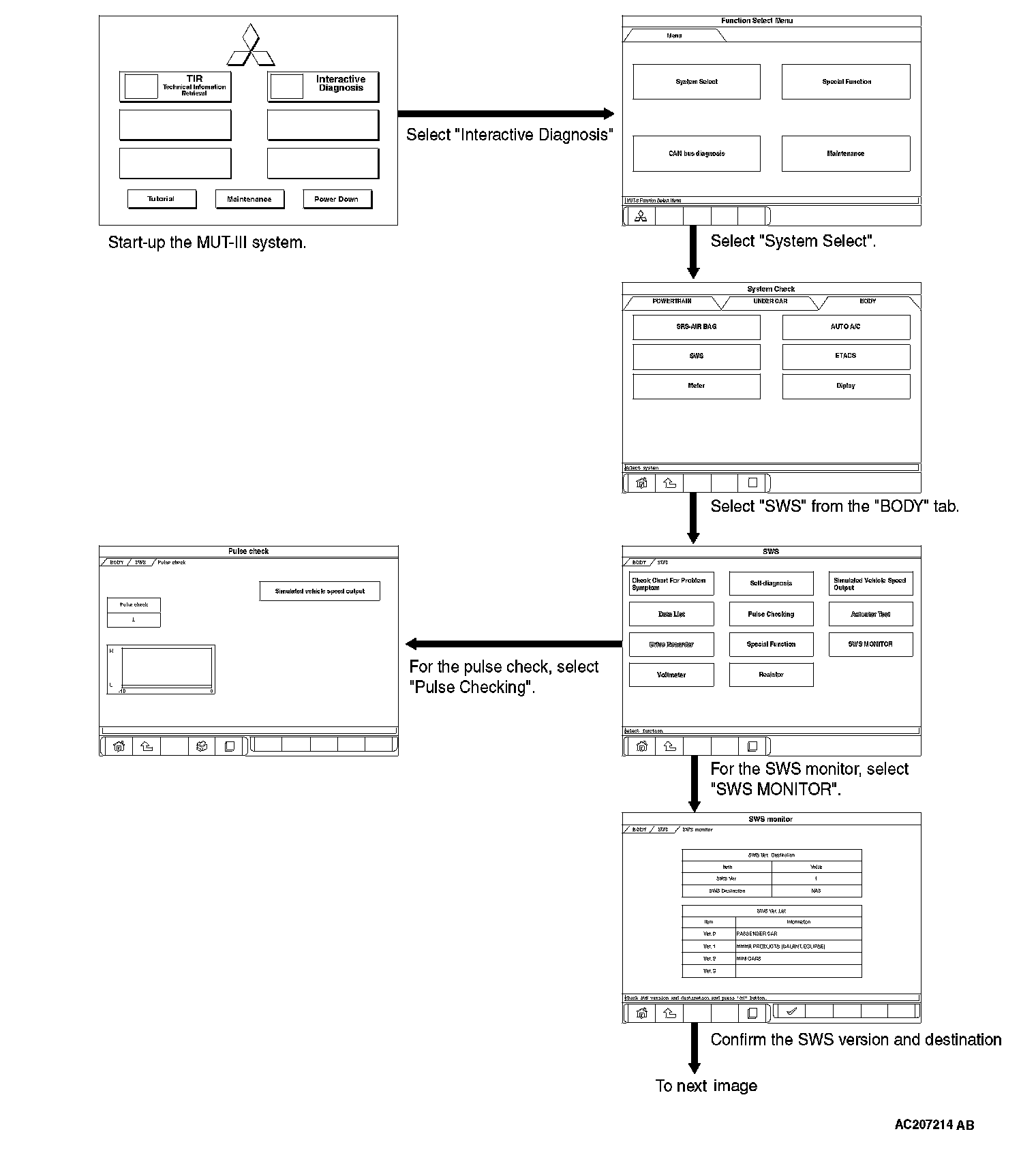

To carry out troubleshooting, operate scan tool MB991958 (MUT-III Sub Assembly) as above.
