Automatic Transmission Control Component Layout

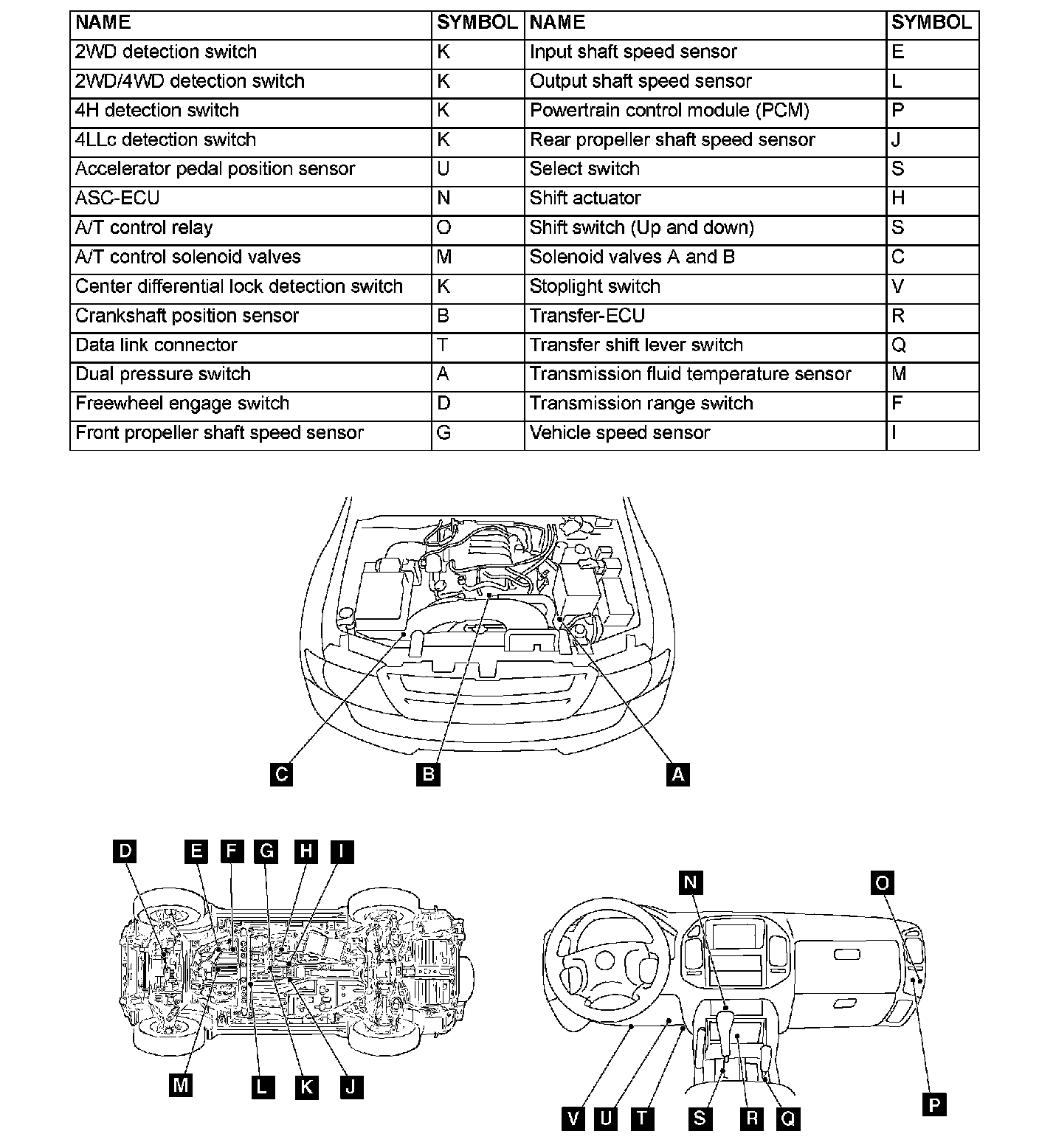

Part 1:

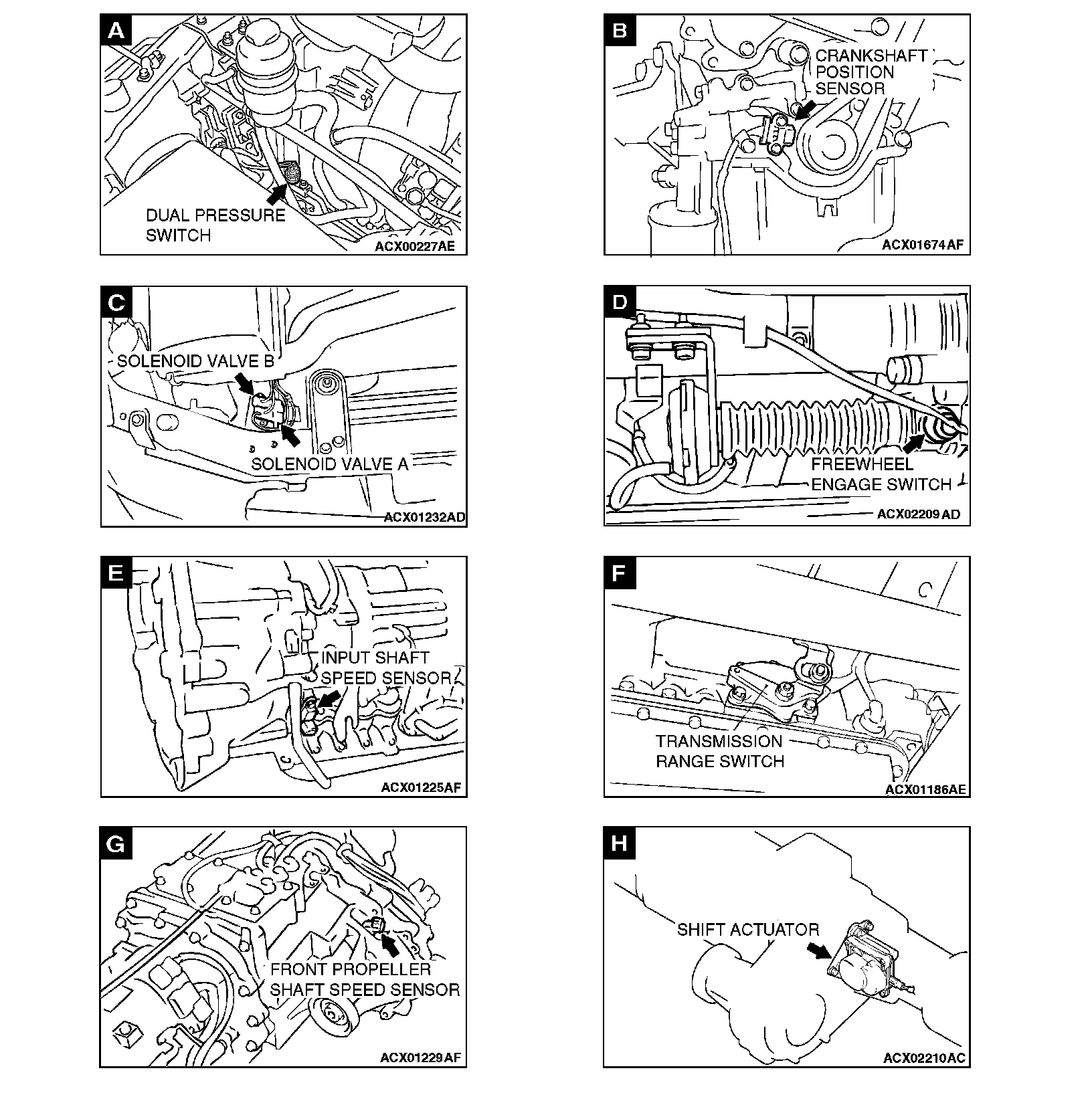

Part 2:

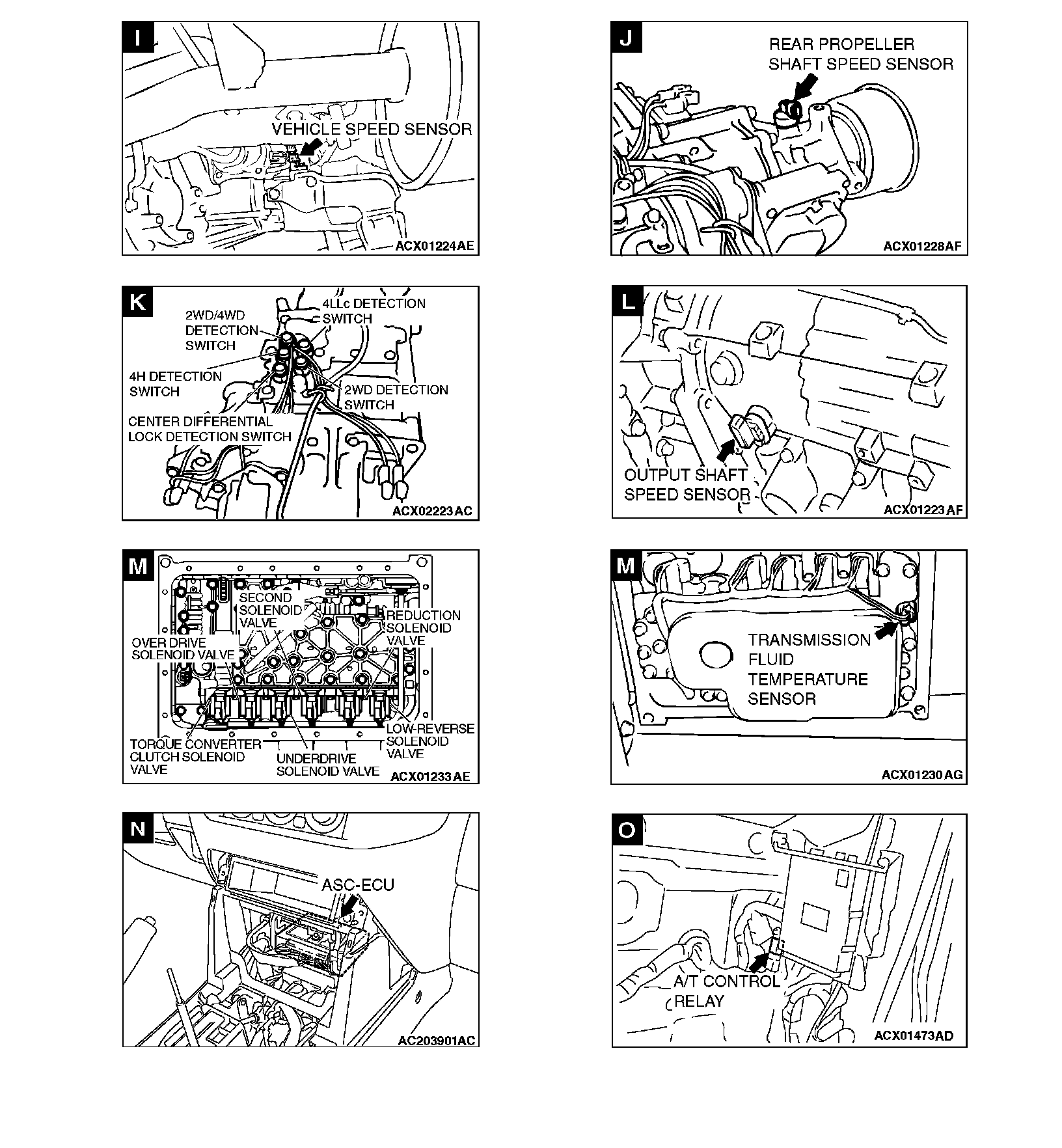

Part 3:

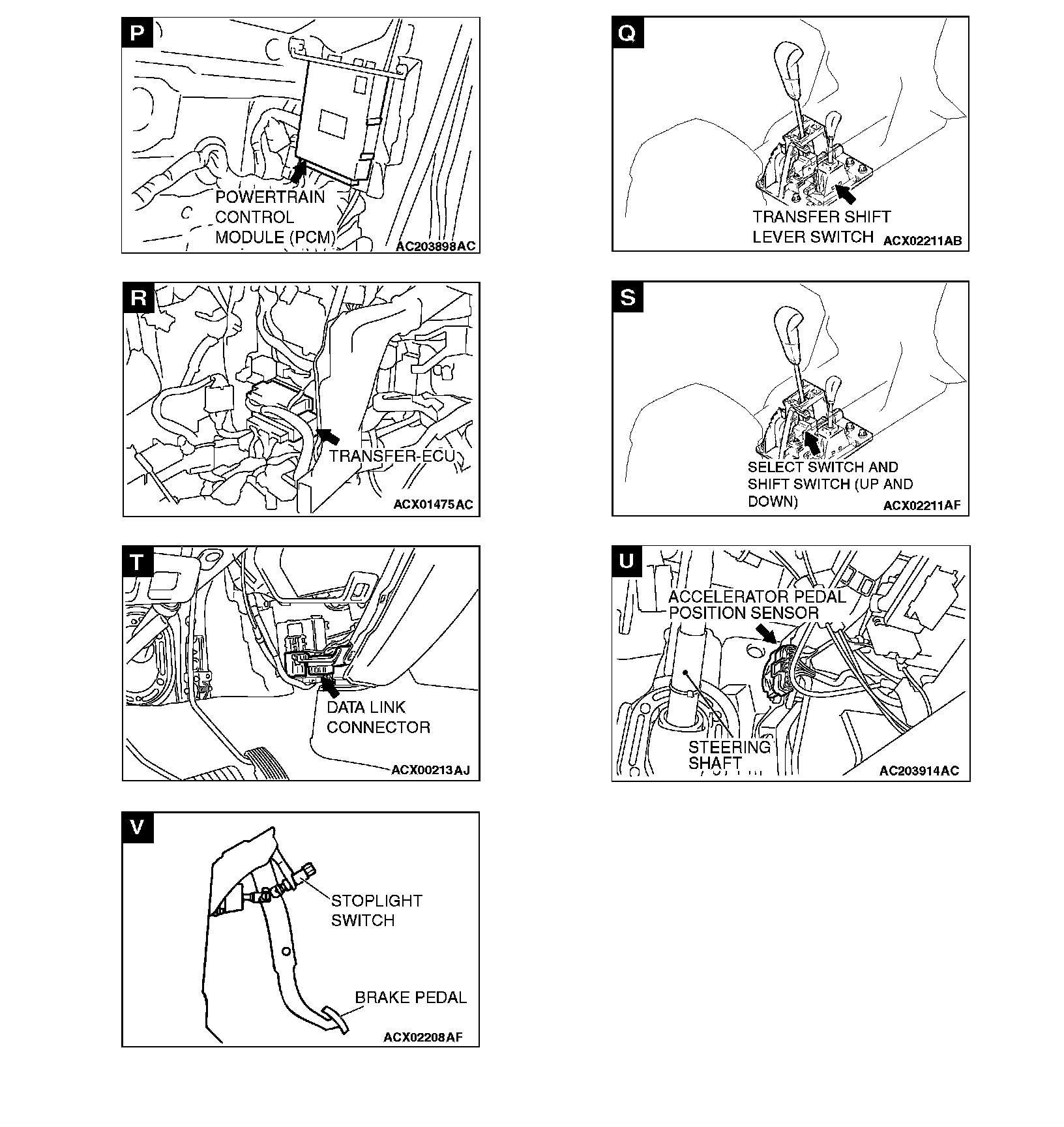

Part 4:





AUTOMATIC TRANSMISSION CONTROL COMPONENT LAYOUT
