Key Reminder Switch Continuity Check
INSPECTIONKEY REMINDER SWITCH CONTINUITY CHECK

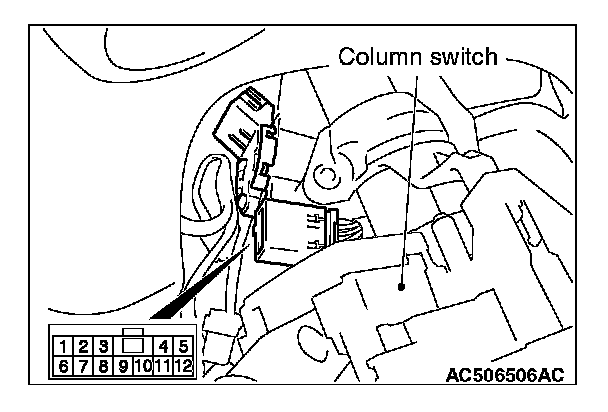

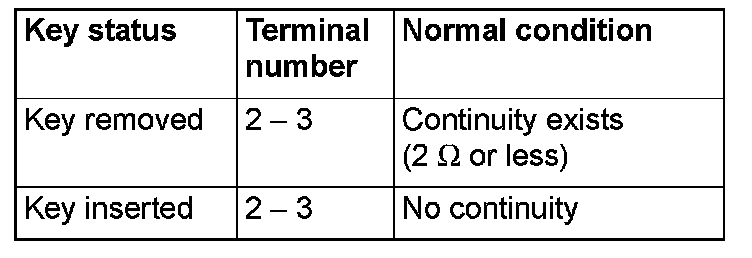

With the key reminder switch mounted to the vehicle, disconnect the key reminder switch connection connector, and then perform the continuity check.
KEY REMINDER SWITCH CONTINUITY CHECK
With the key reminder switch mounted to the vehicle, disconnect the key reminder switch connection connector, and then perform the continuity check.
