Home
>>
Mitsubishi Truck
>>
2011
>>
Endeavor AWD V6-3.8L (6G75)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Description and Operation
>>
Traction Control/Active Stability Control System (TCL/ASC)
>>

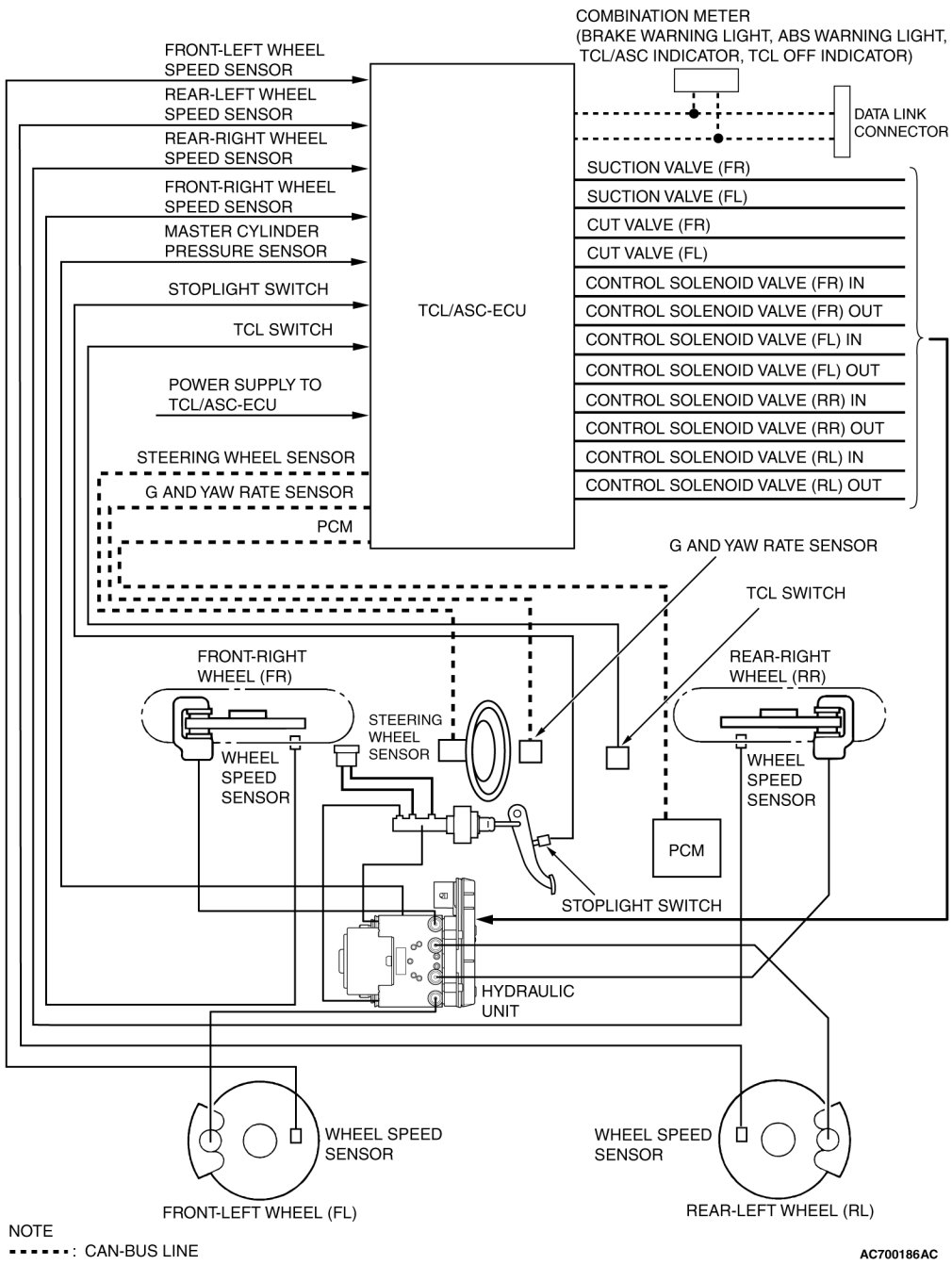

System Configuration Diagram
System Configuration Diagram
GENERAL INFORMATION
SYSTEM CONFIGURATION DIAGRAM
