Mitsubishi
>>
1987
>>
Galant L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Complete Emission Control System Diagram
Complete Emission Control System Diagram

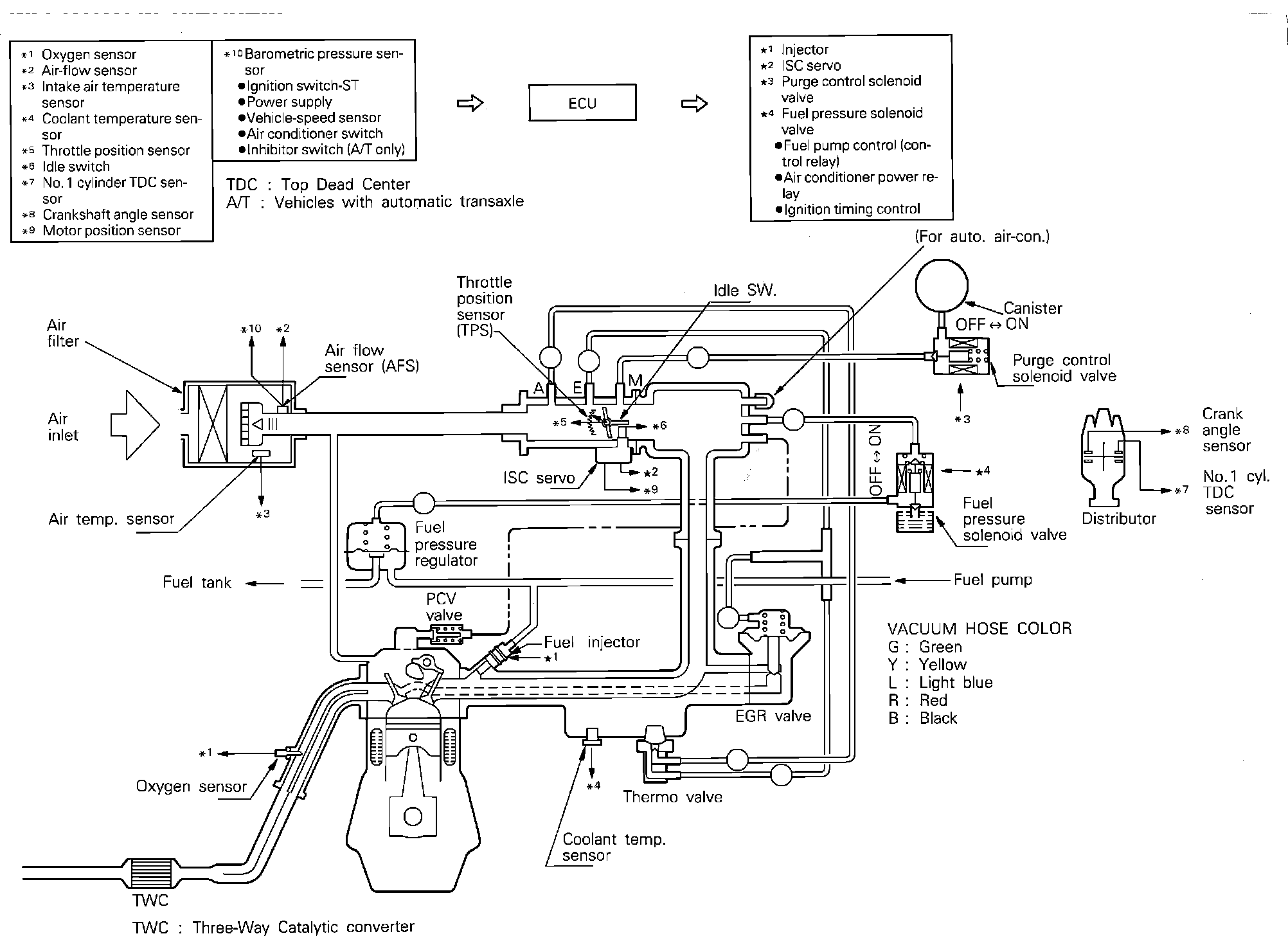

Fig. 20 Multi-point fuel injection system diagram:
