A/T Technical Data

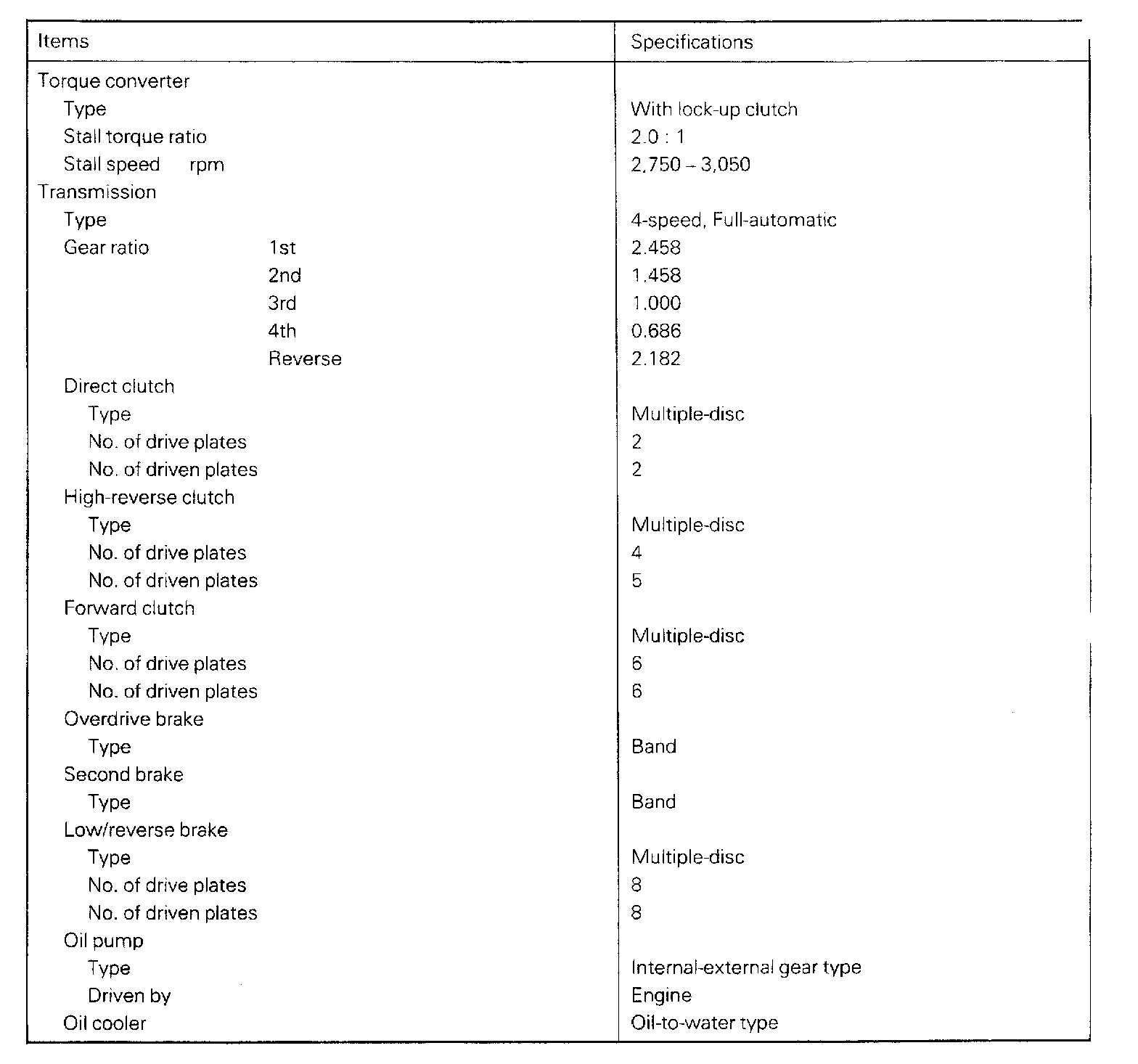

JM600 4-spd A/T, Gear Ratio & Drive Plates:





JM600 4-spd A/T, Transmission Clearance/End Play:
