Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1990
>>
Galant L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Early 1990
Early 1990

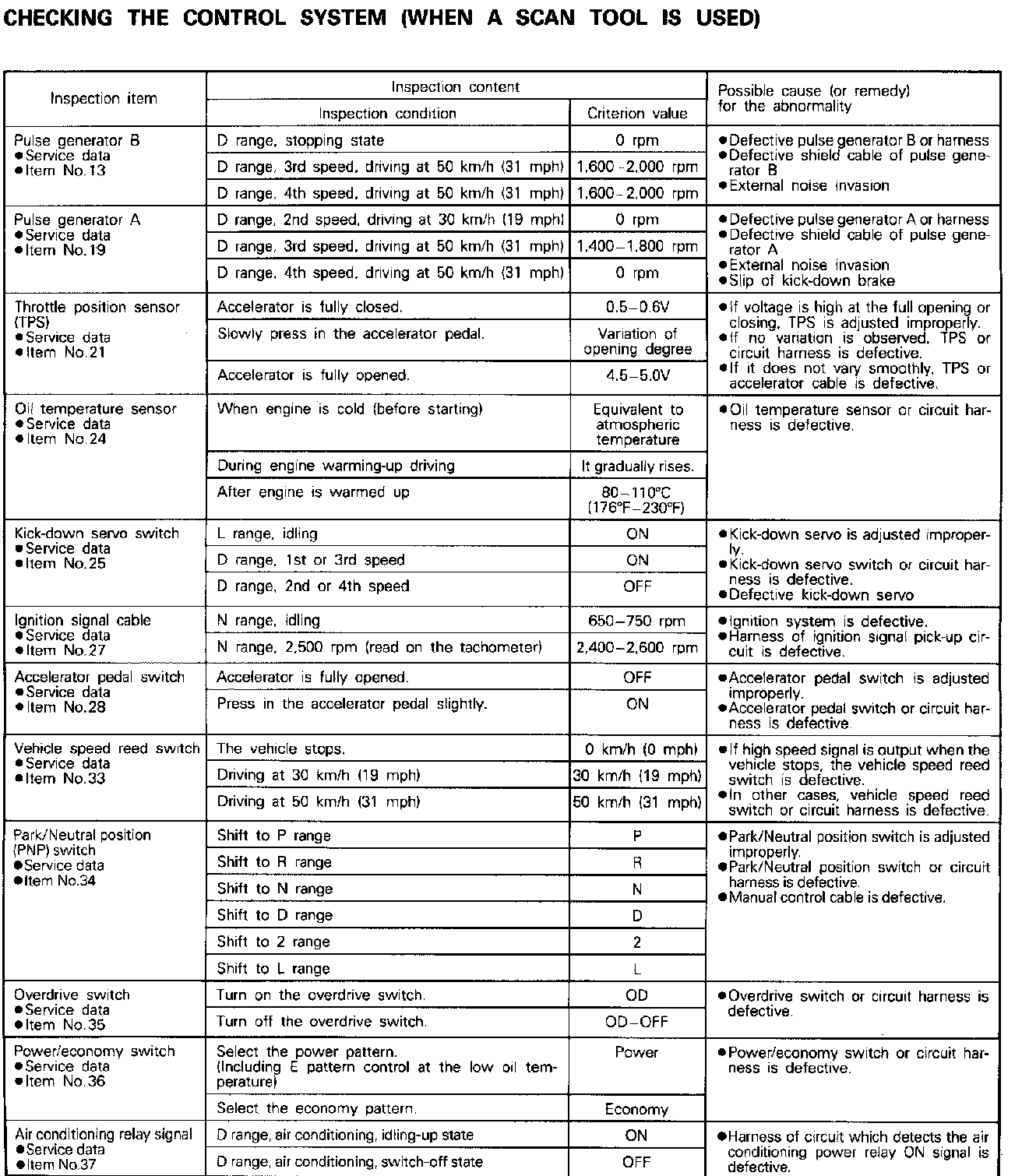

Control System Chart:

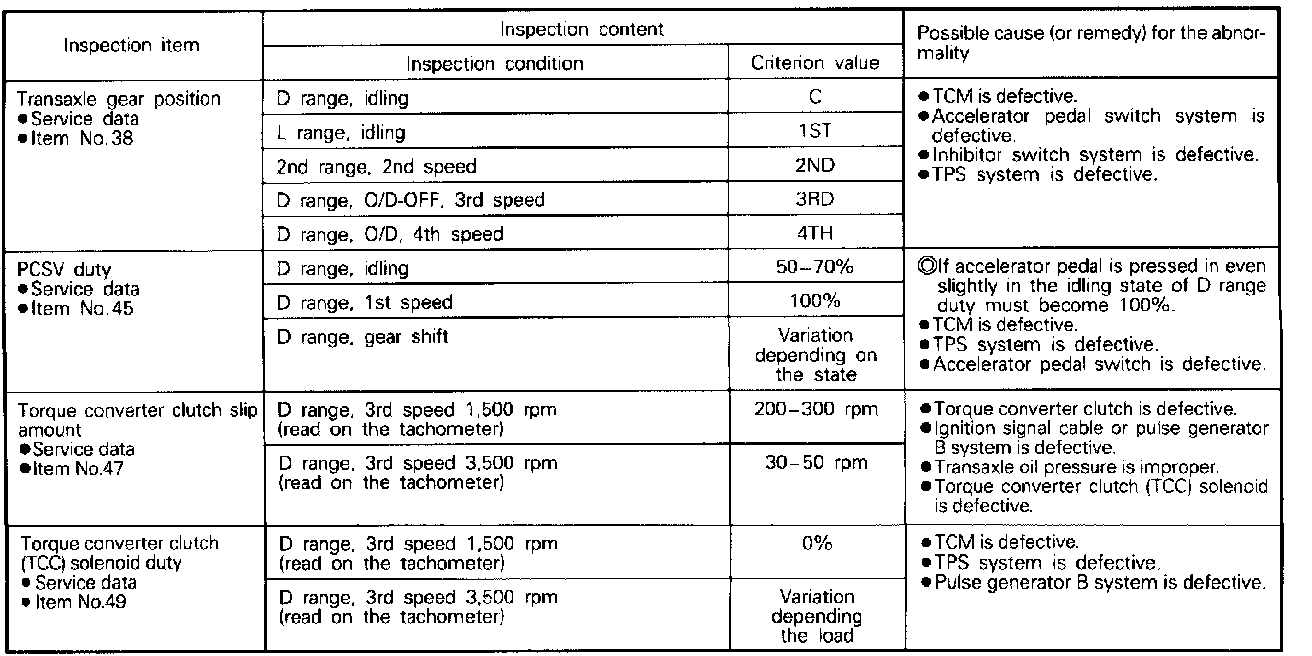

Control System Chart:
