Eclipse L4-1755cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Description and Operation
>>
Circuit Operation
Circuit Operation

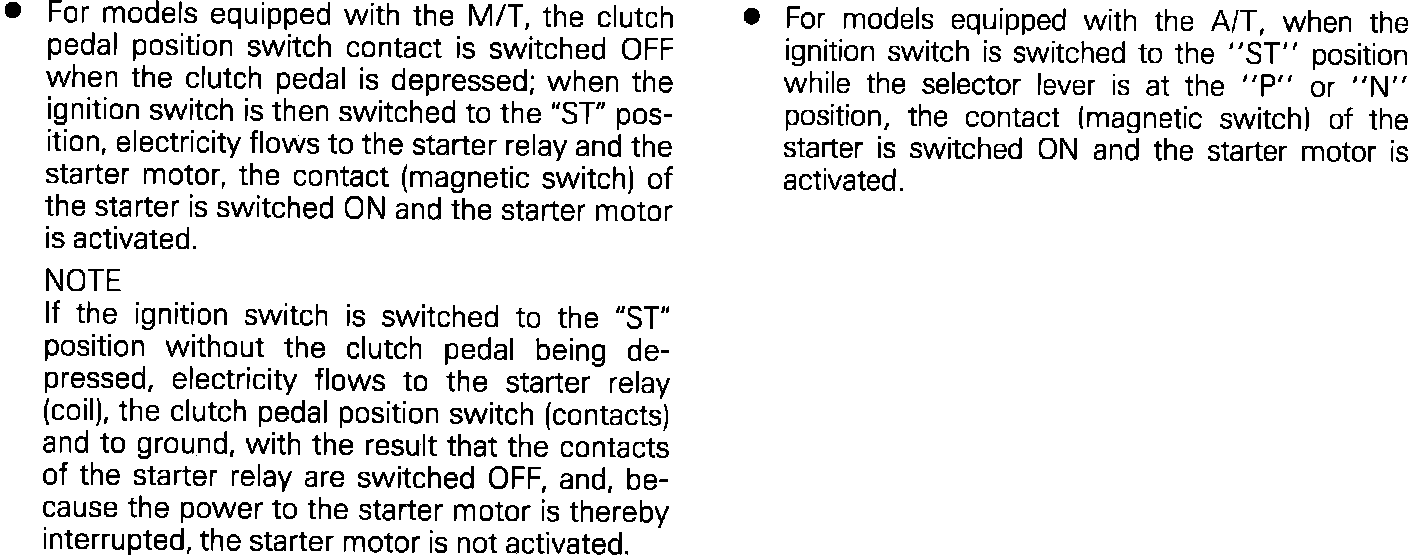

Starting System Circuit Operation:
