Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1992
>>
Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Driveability Tests
>>

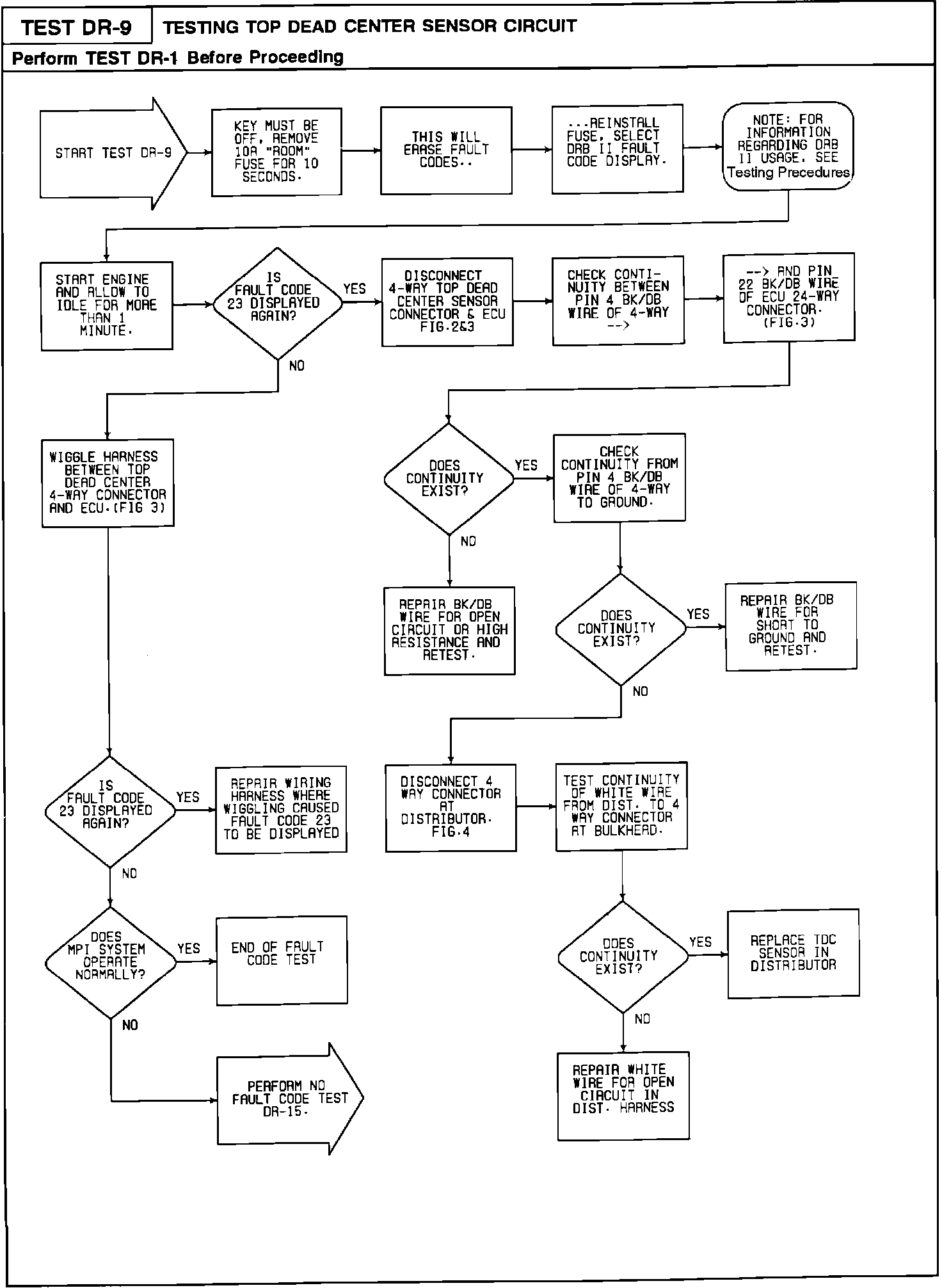

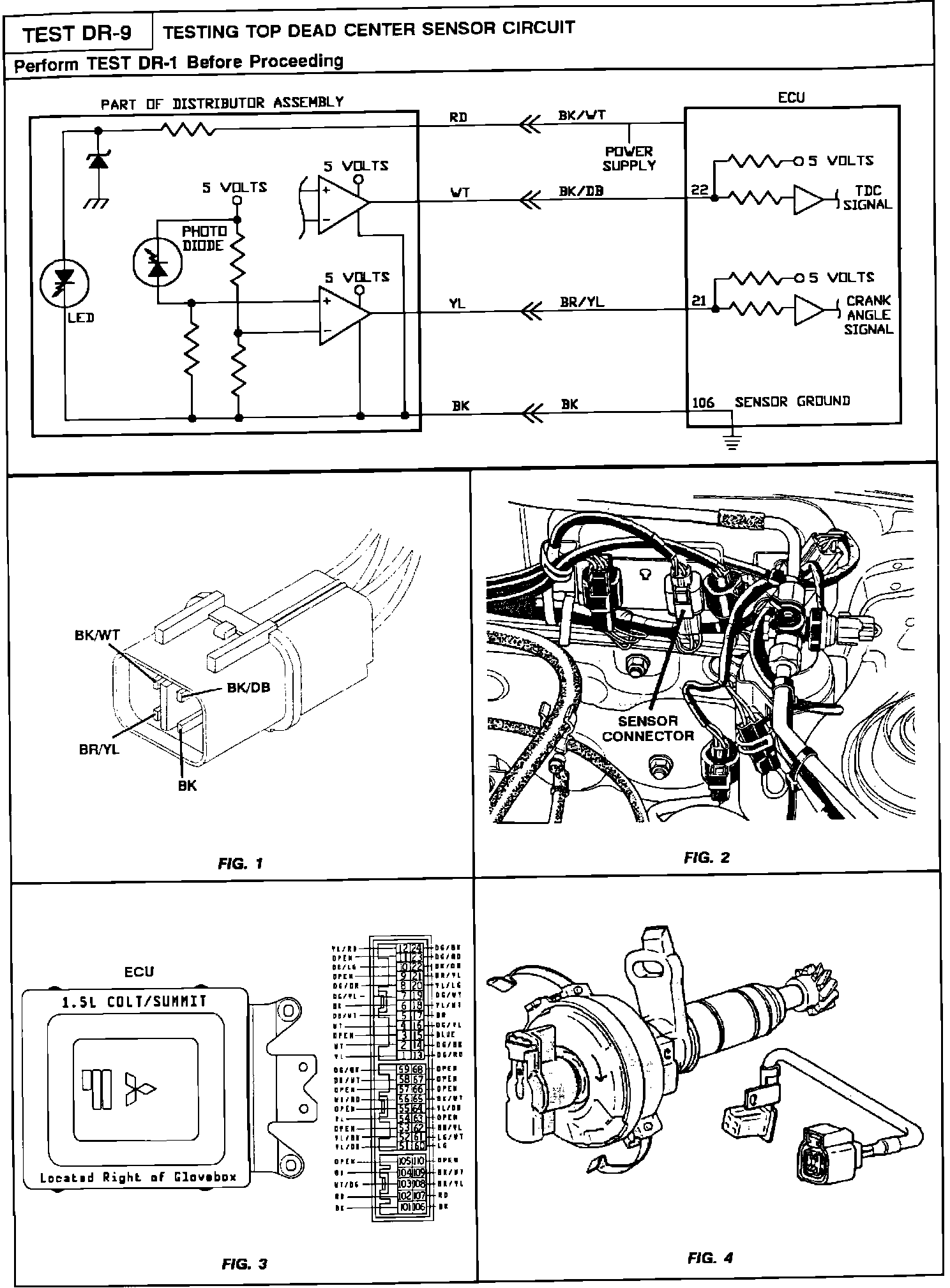

Test DR-9 - Testing Top Dead Sensor Circuit
Test DR-9 - Testing Top Dead Sensor Circuit
