Electrical Diagrams

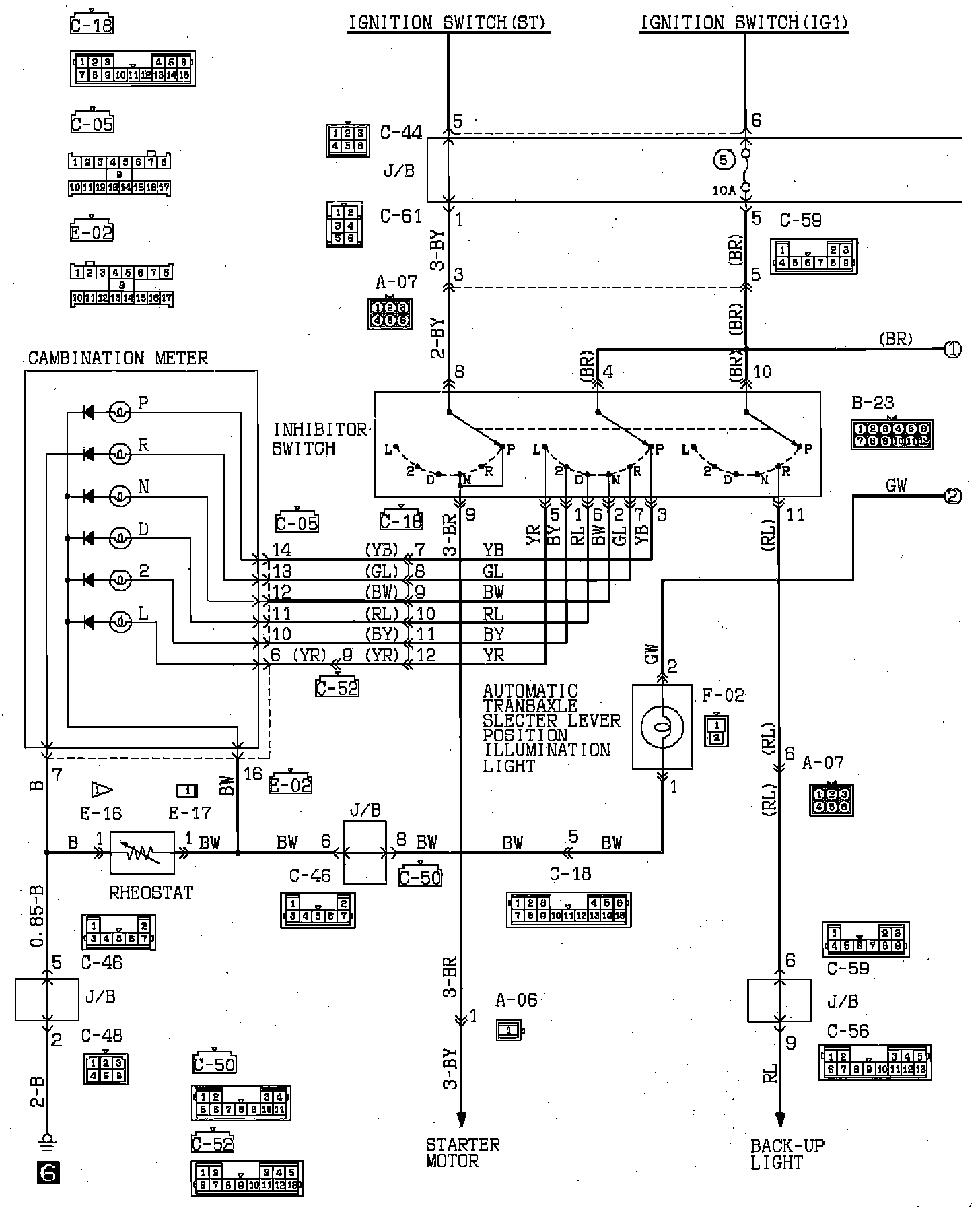

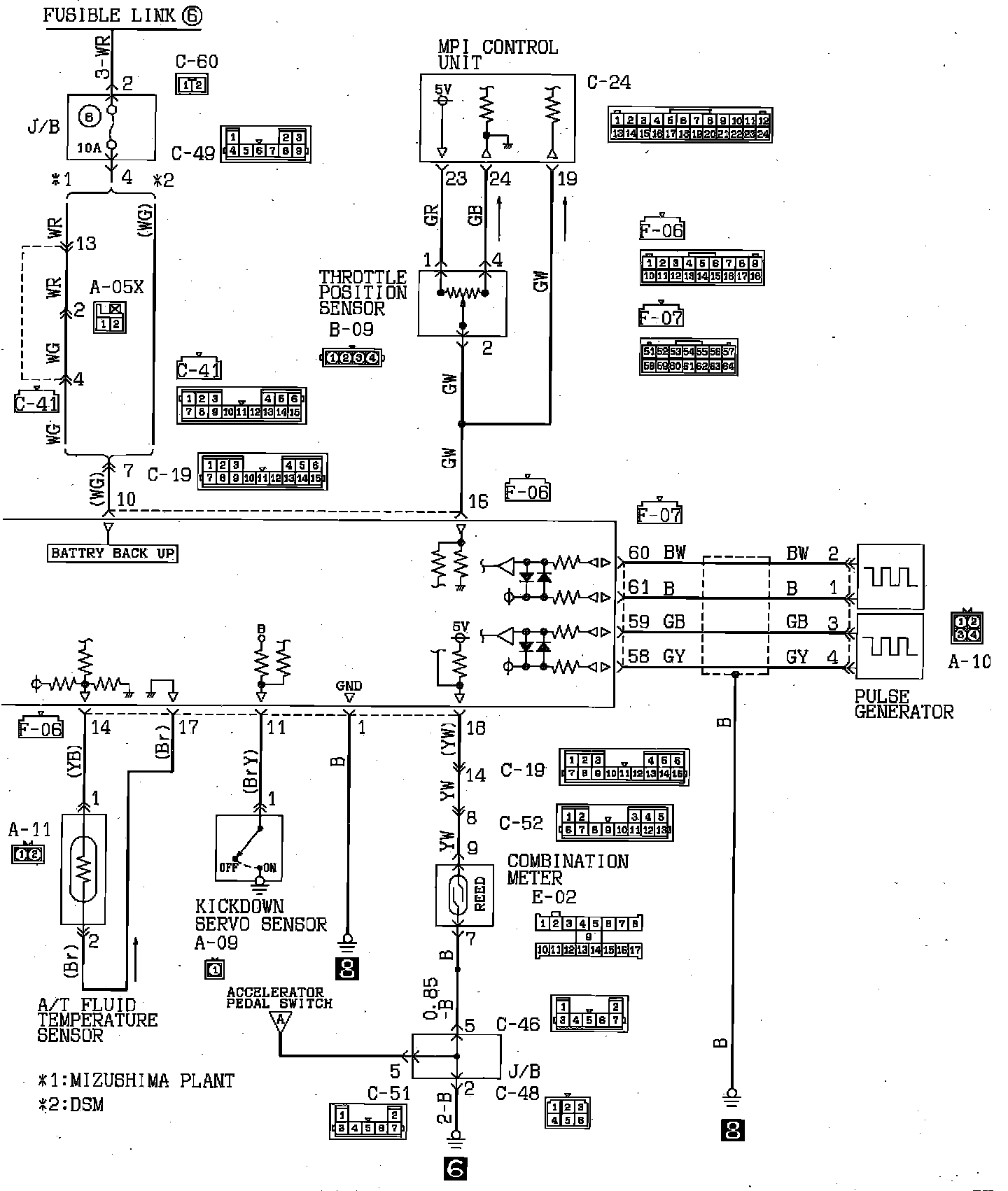

Automatic Transaxle (3-Speed):

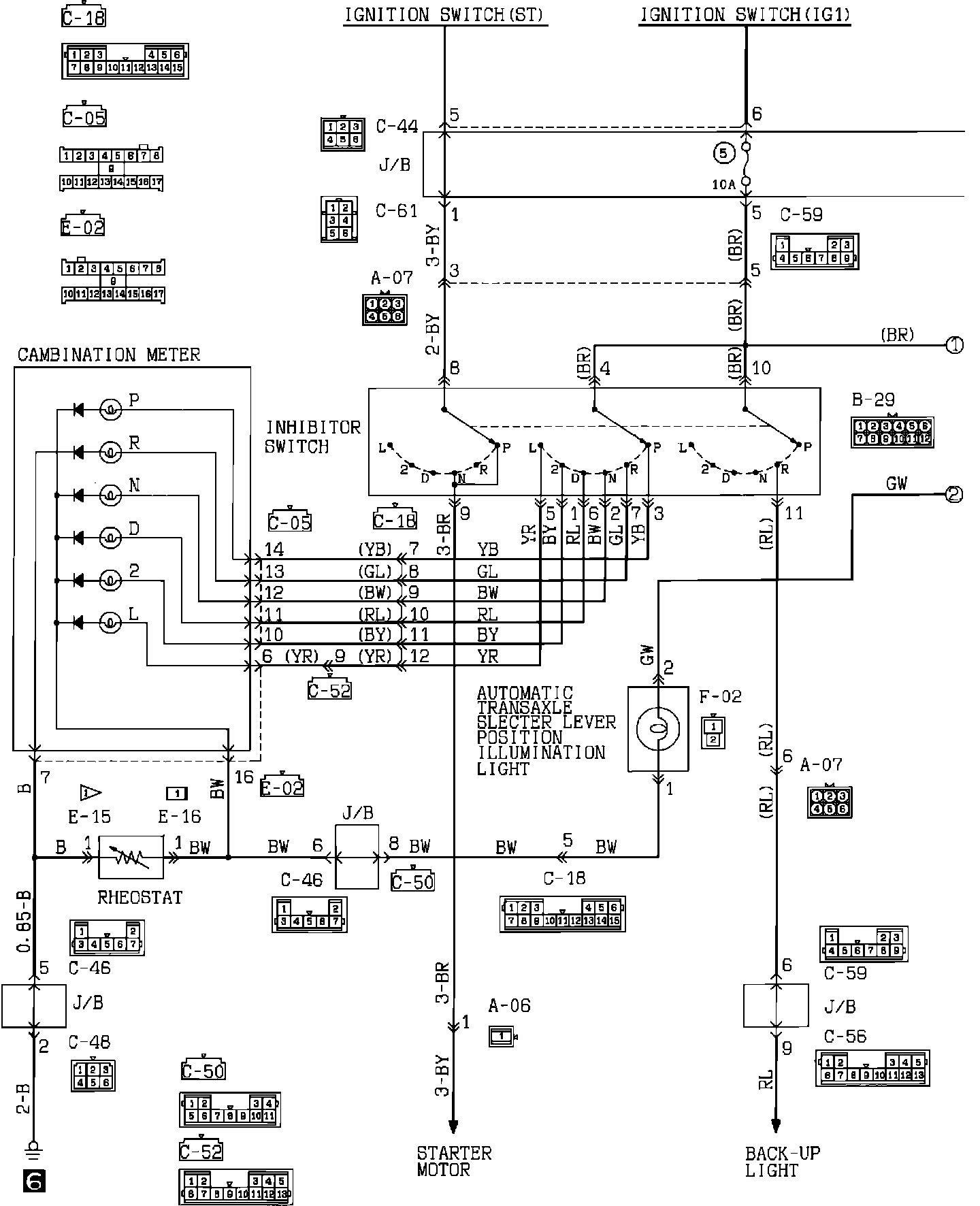

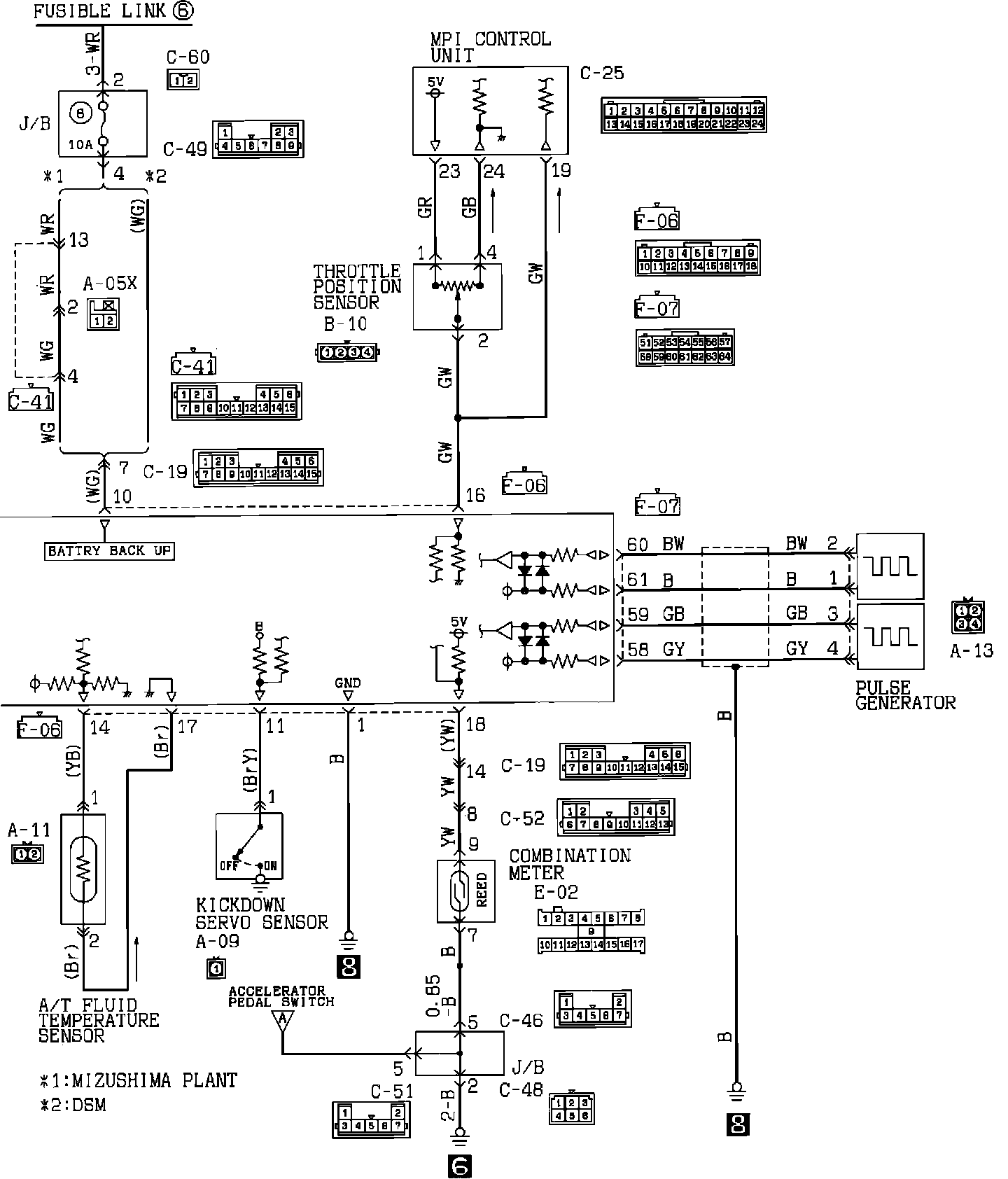

Automatic Transaxle (3-Speed):

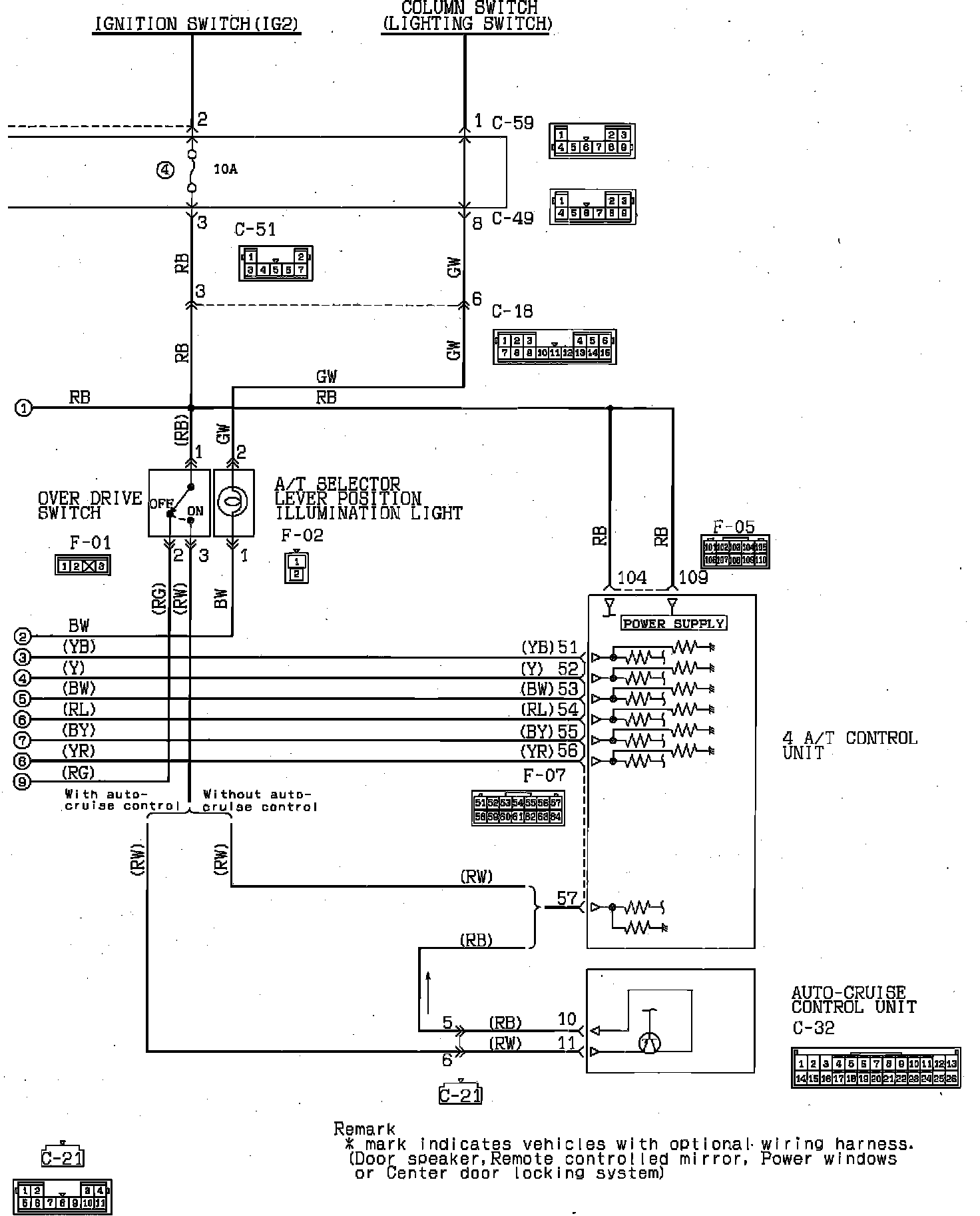

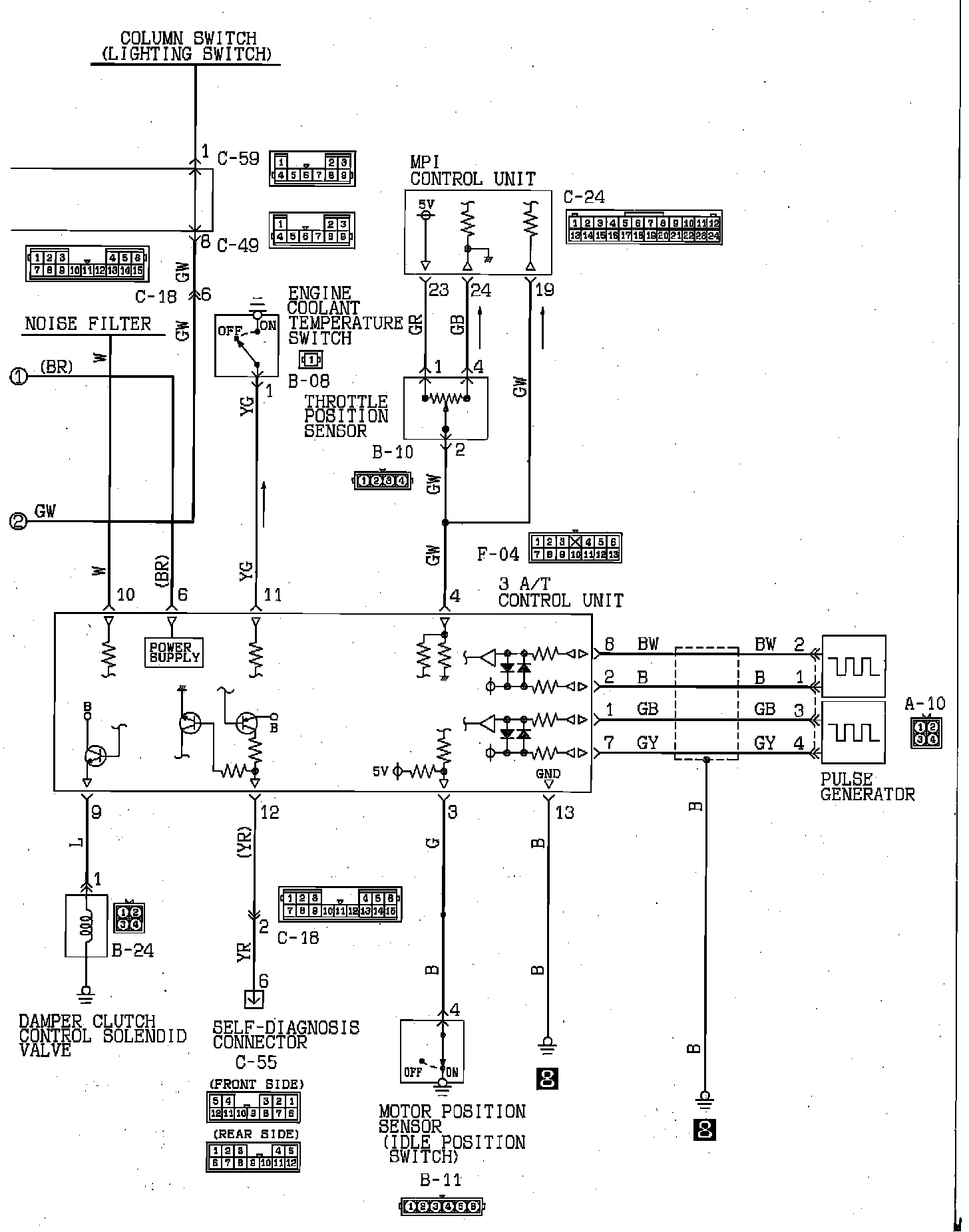

Automatic Transaxle (4-Speed):

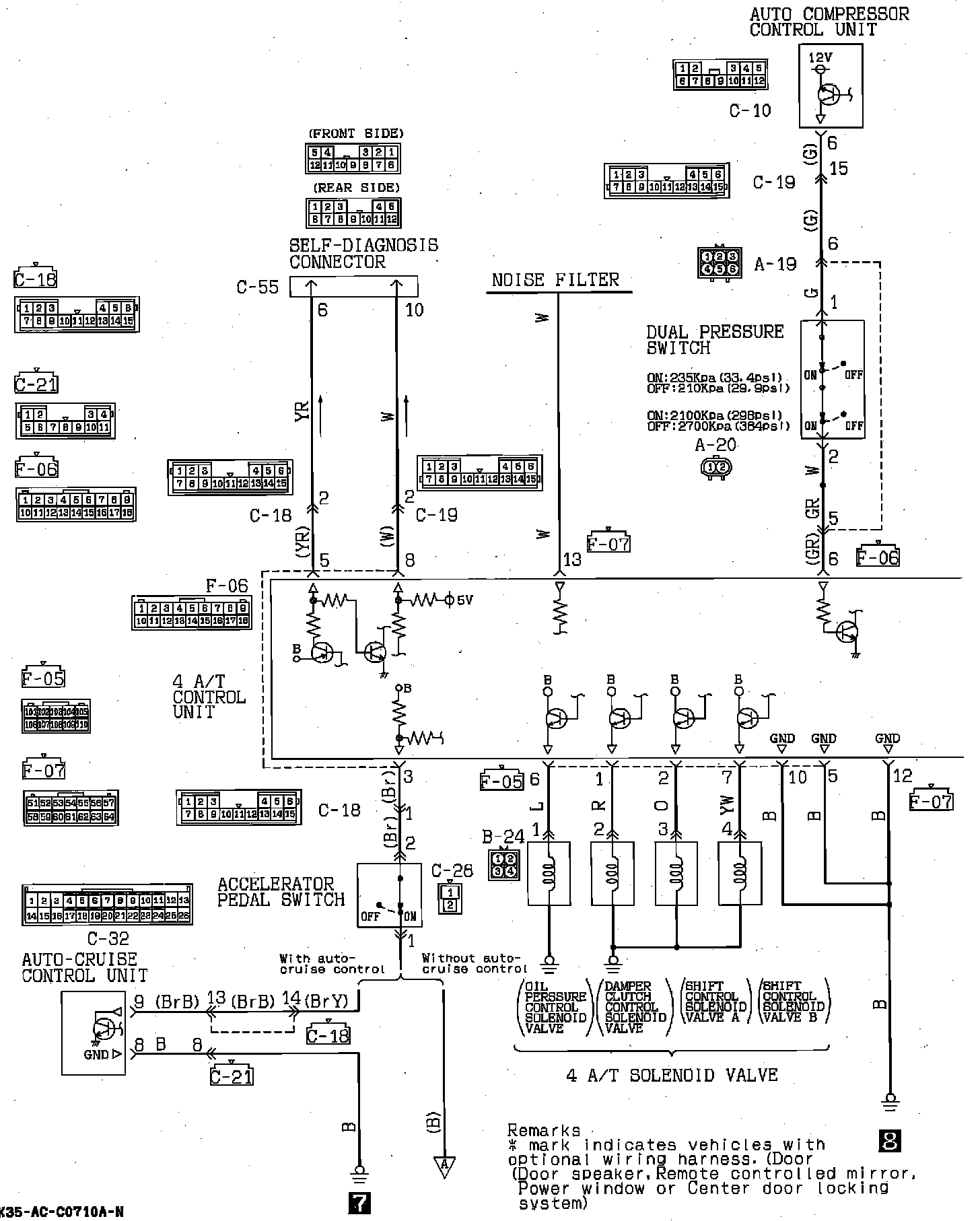

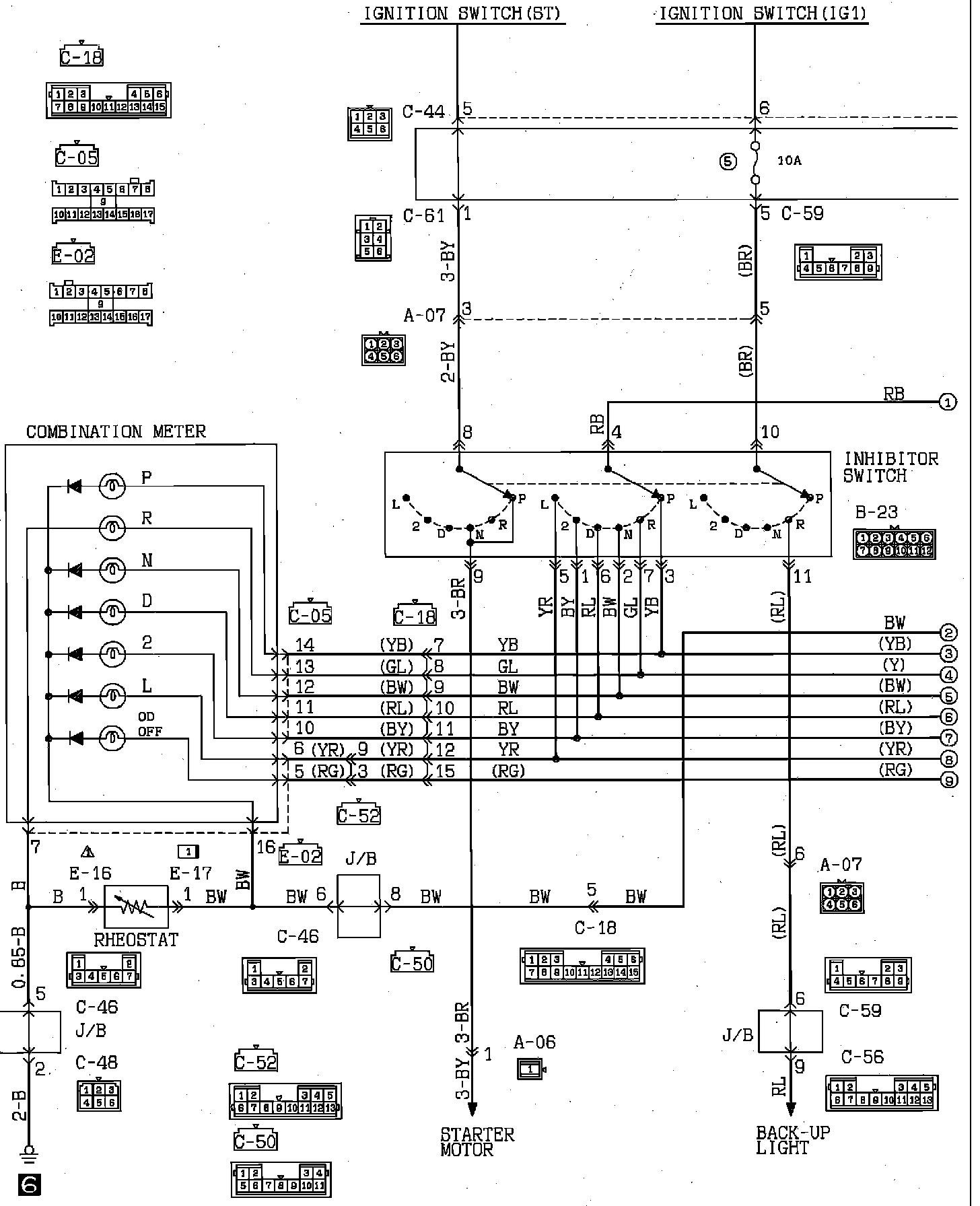

Automatic Transaxle (4-Speed):

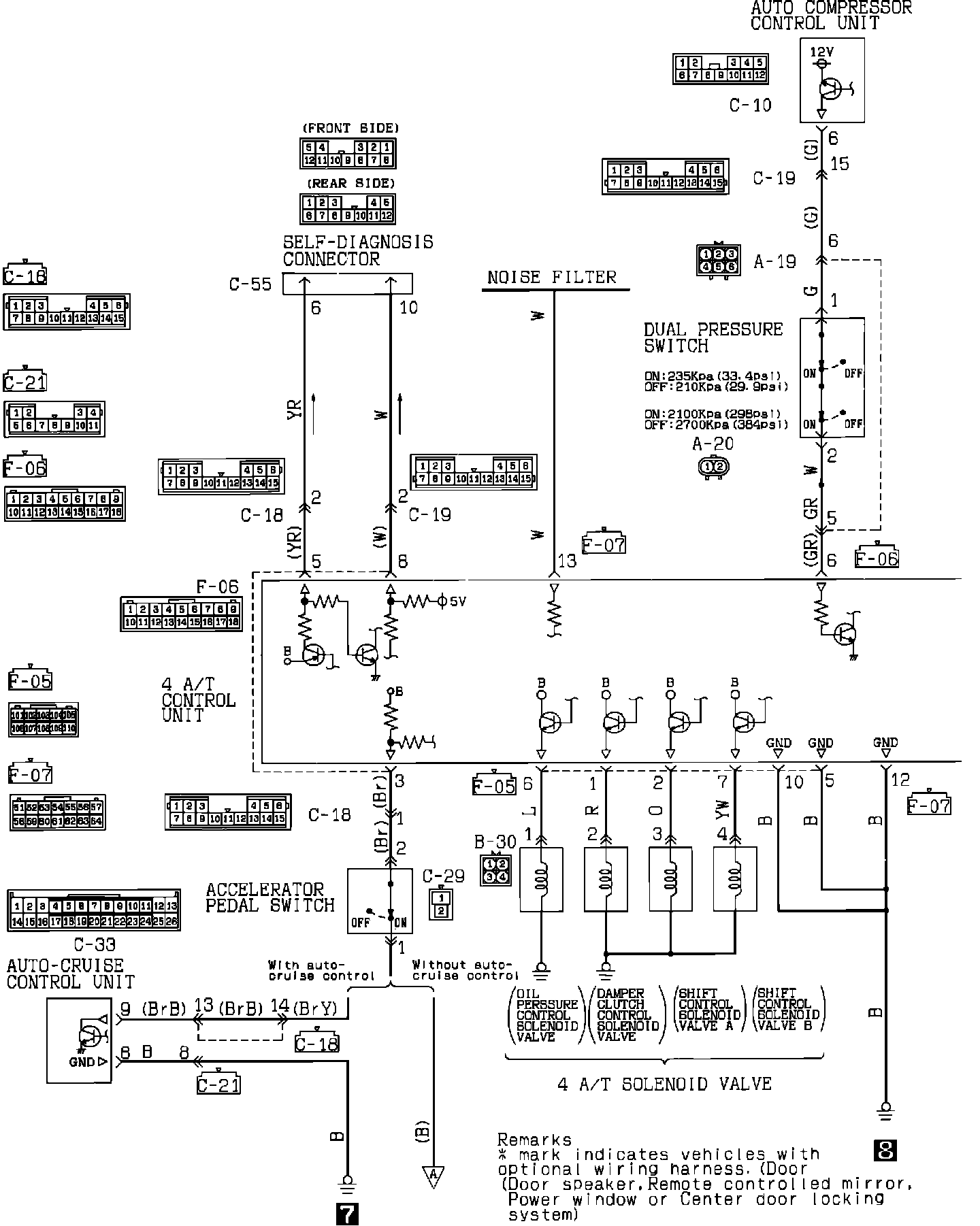

Automatic Transaxle (4-Speed):

Automatic Transaxle (4-Speed):

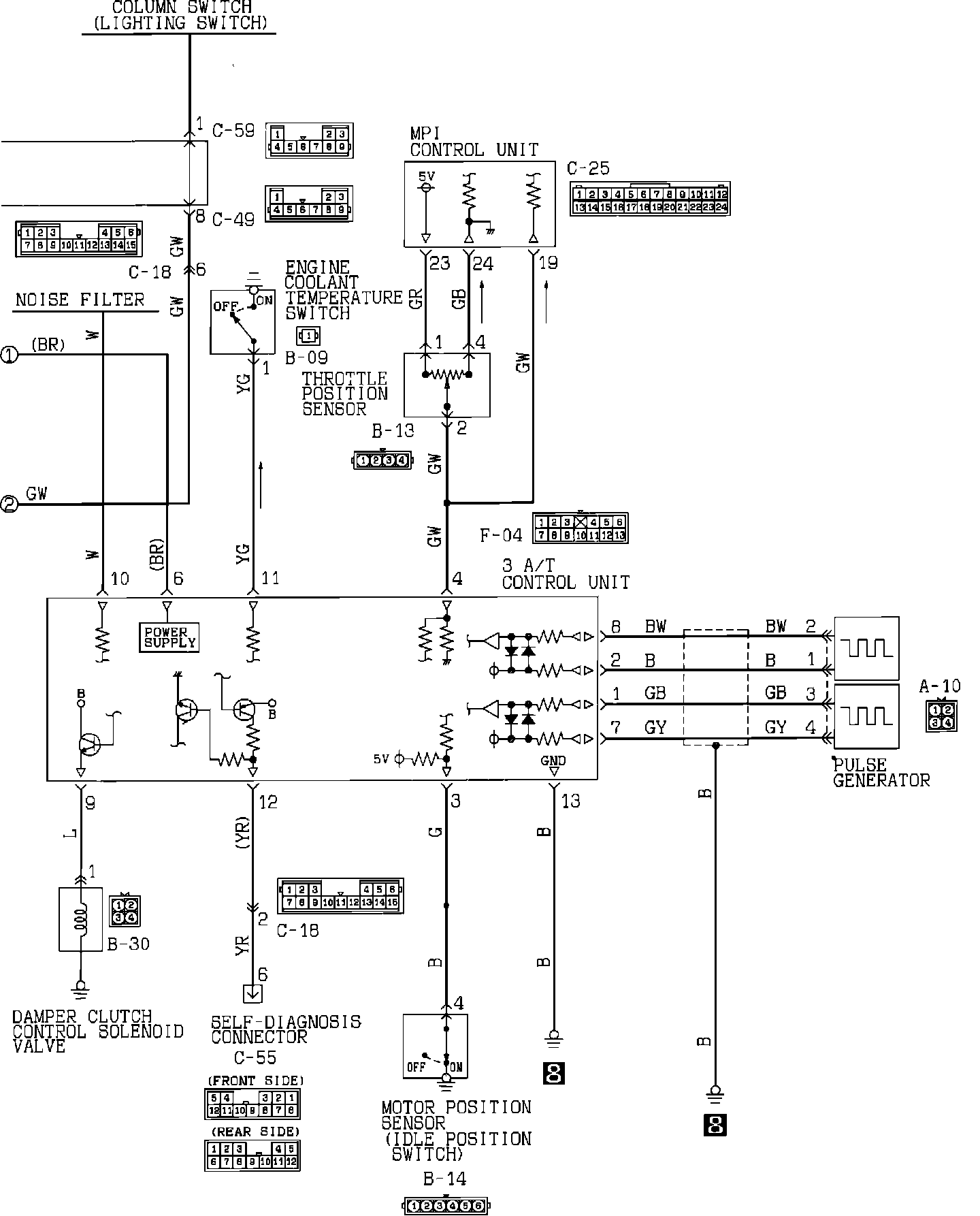

Automatic Transaxle (3-Speed):

Automatic Transaxle (3-Speed):

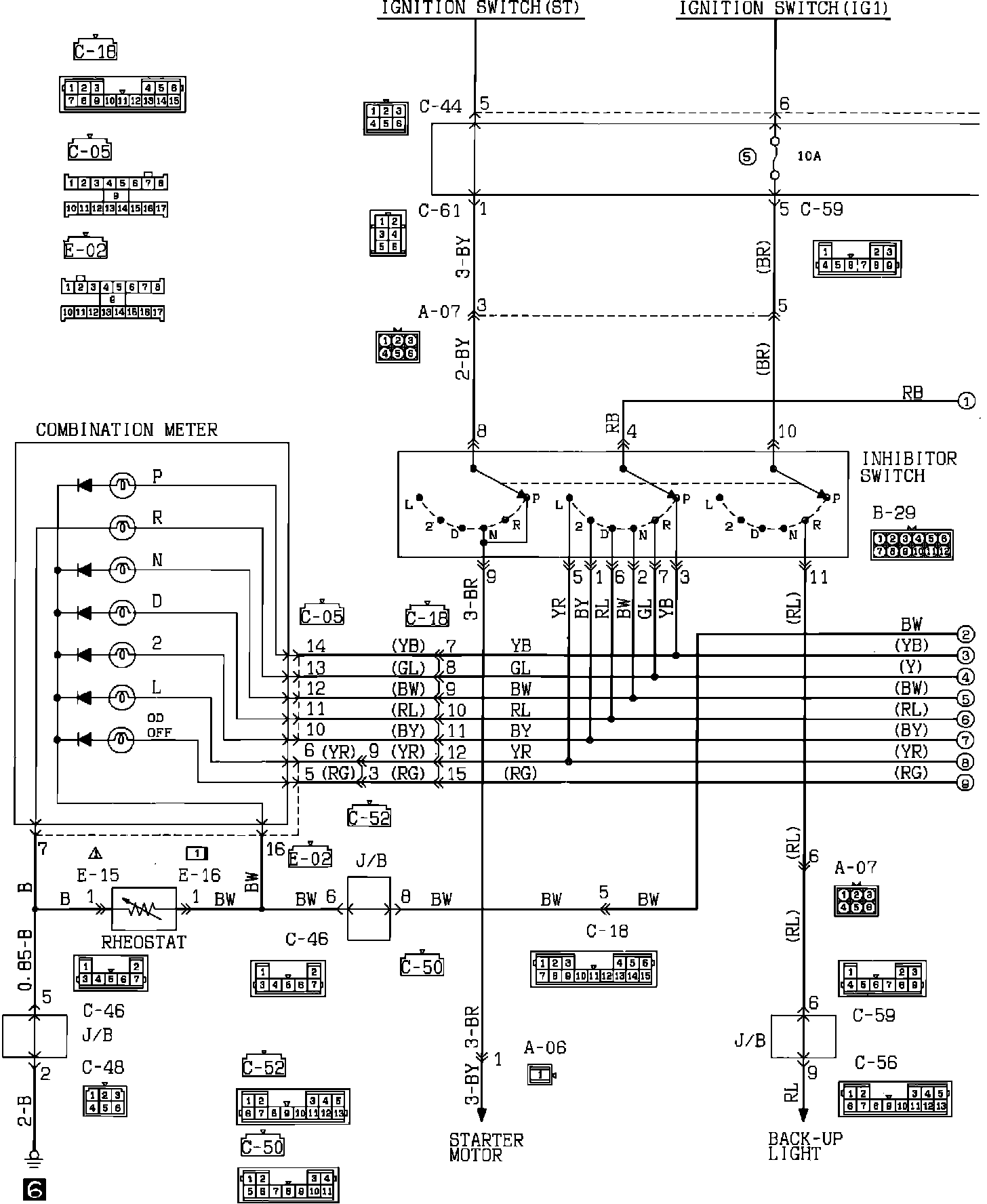

Automatic Transaxle (4-Speed):

Automatic Transaxle (4-Speed):

Automatic Transaxle (4-Speed):

Automatic Transaxle (4-Speed):

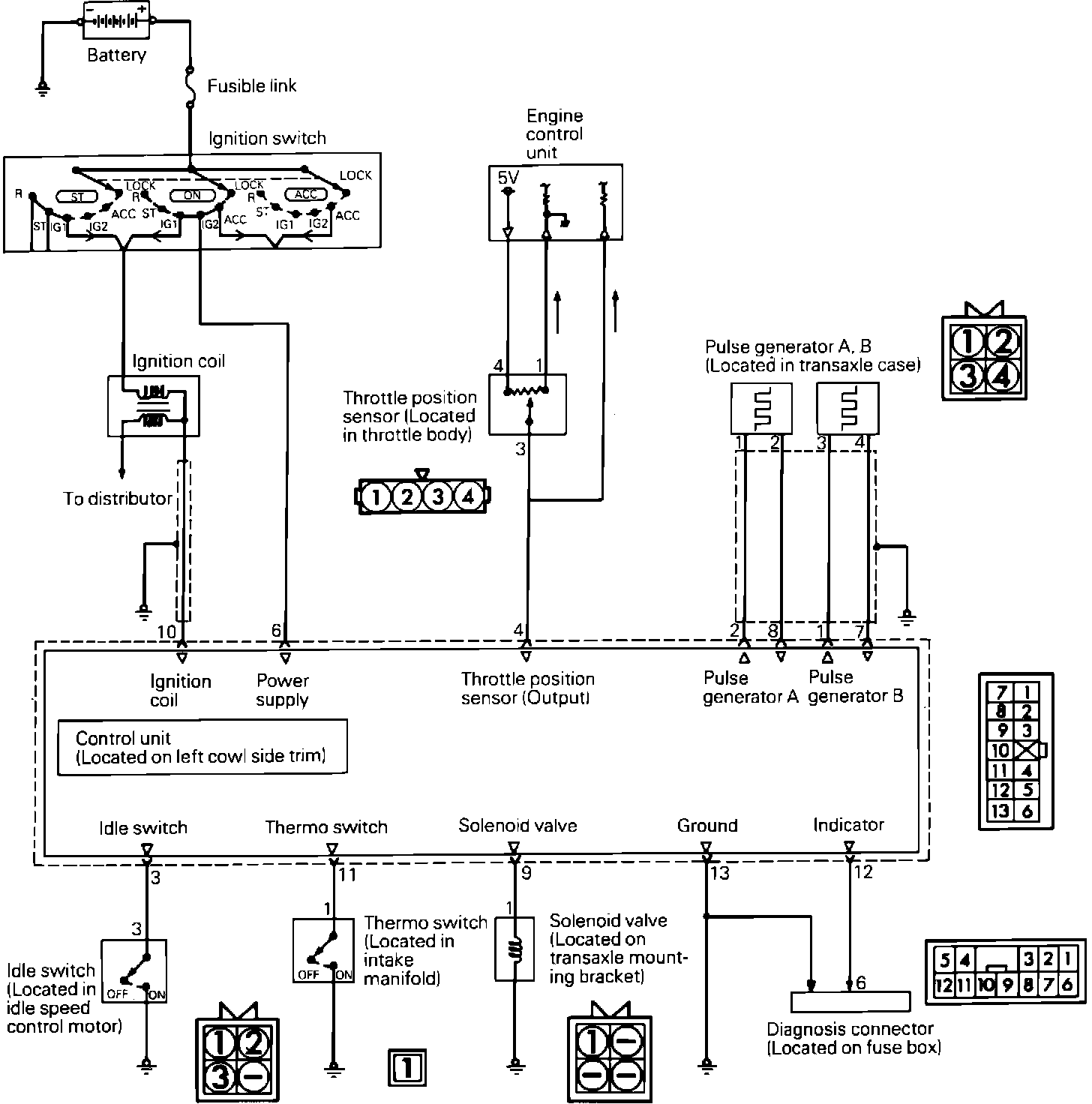

Dampner Clutch System Wiring Diagram:
